Data Monitor
DATA MONITOR MODEOperation procedure 1.
Perform "CONSULT-II SETTING PROCEDURE" Refer to "CONSULT-II SETTING PROCEDURE".
2.
Touch "DATA MONITOR".
NOTE: When malfunction is detected, CONSULT-II performs "REAL-TIME DIAGNOSIS". Also, any malfunction detected while in this mode will be displayed at real time.

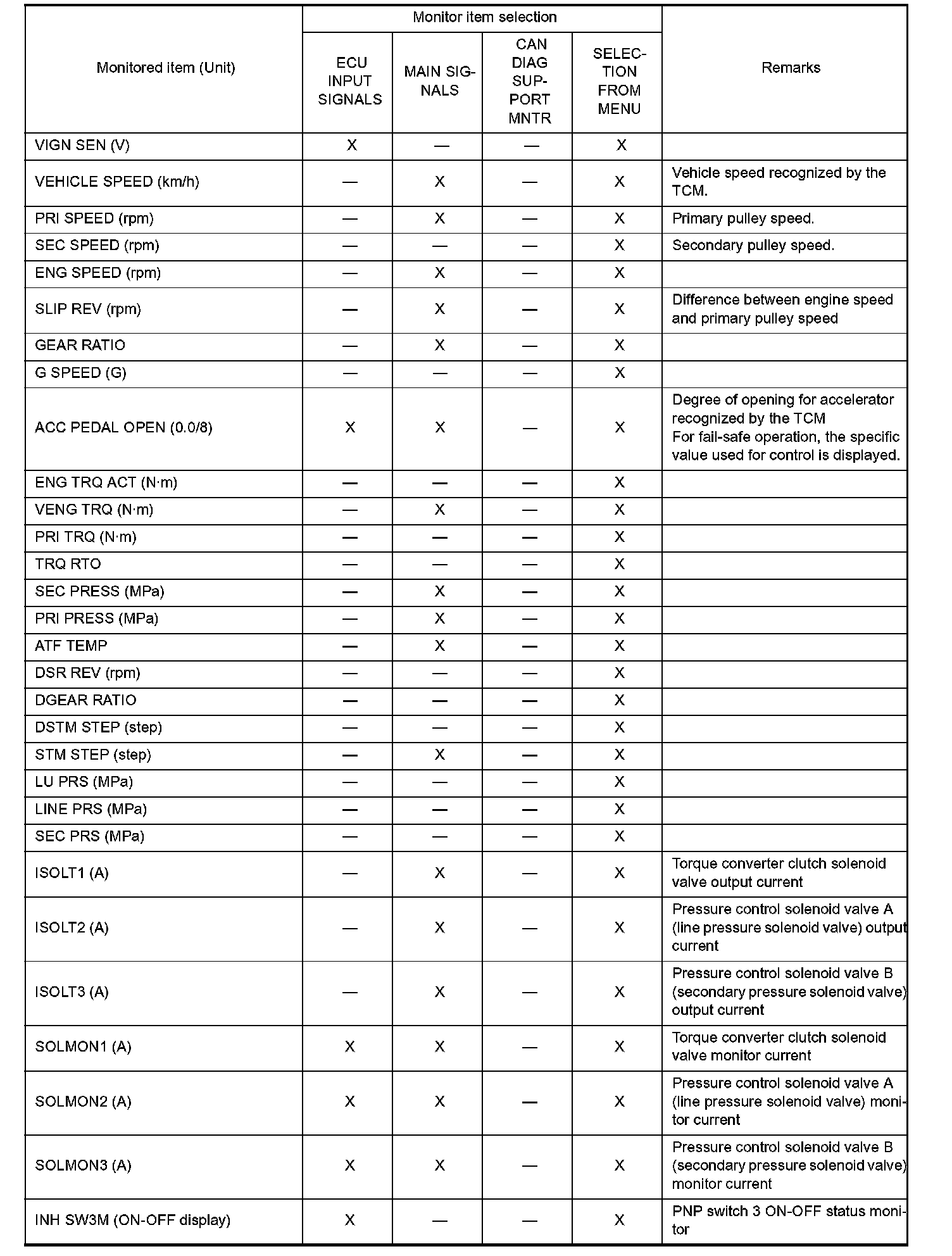

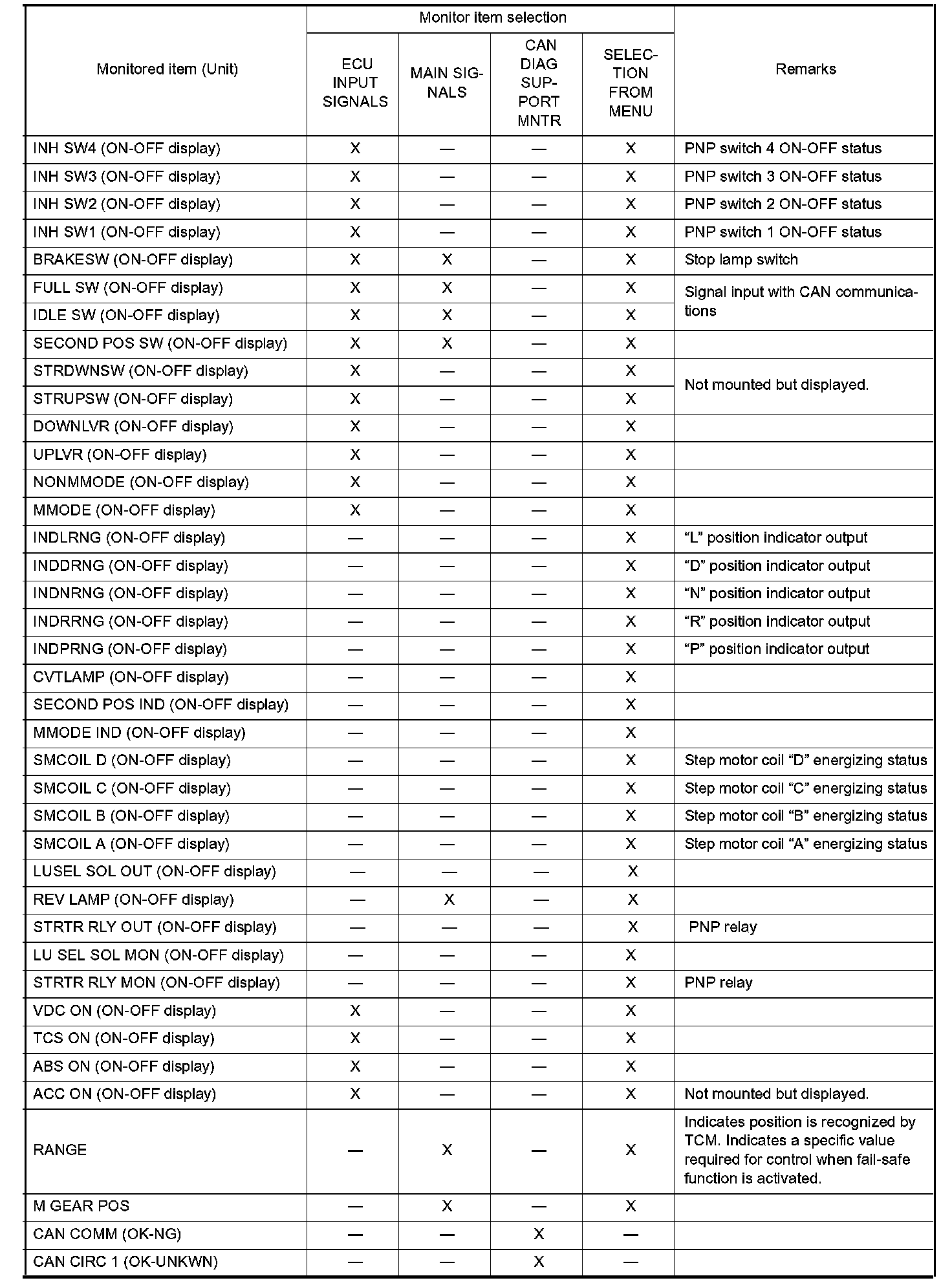

Display items list
