RE4F04B

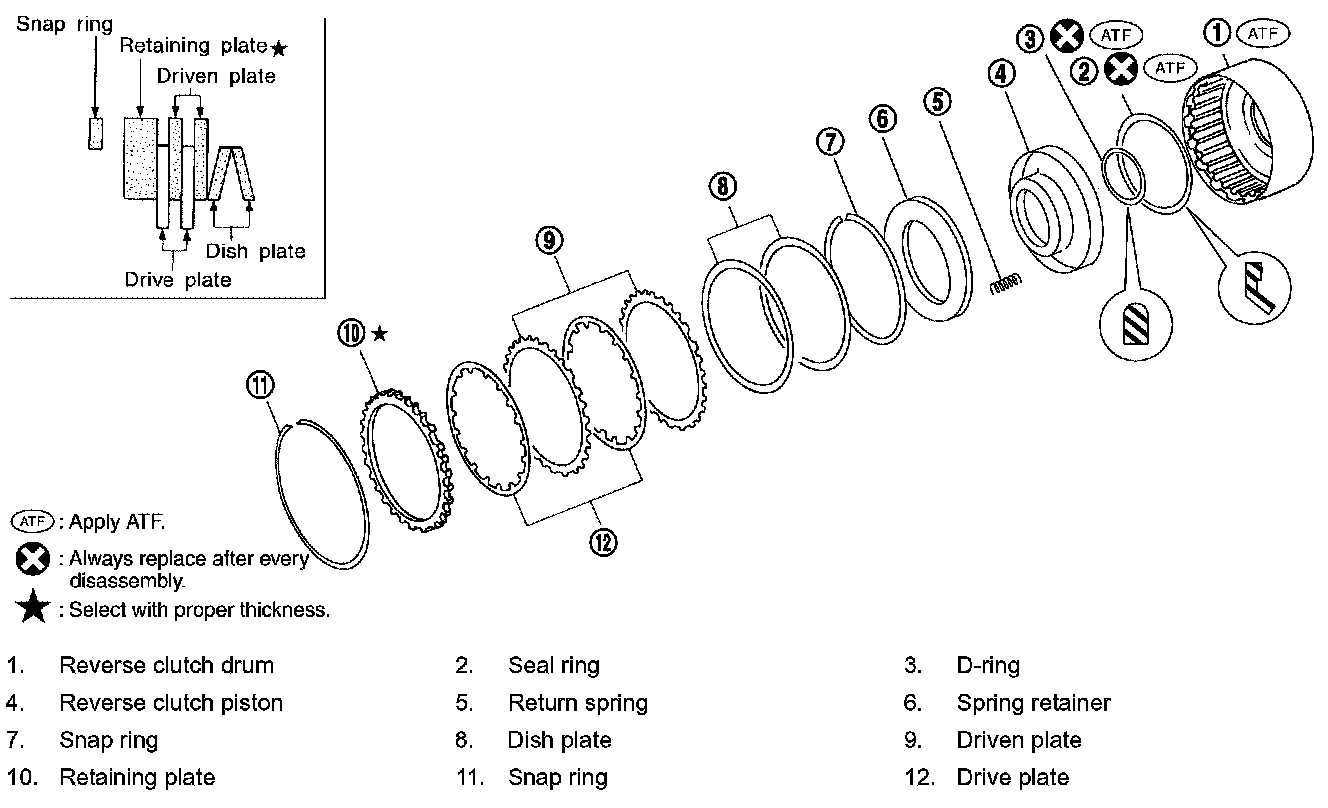

RE4F04B - Reverse Clutch:

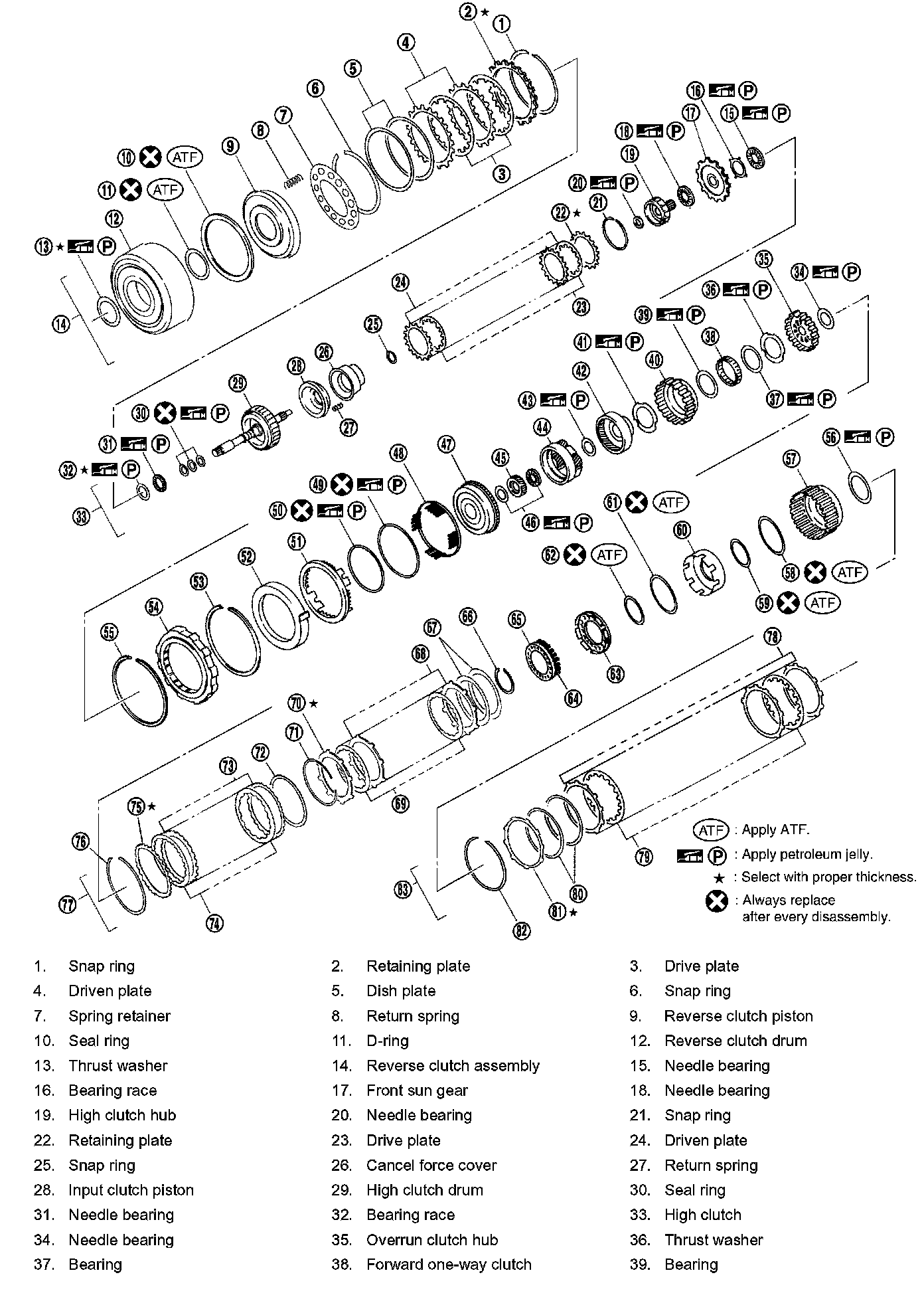

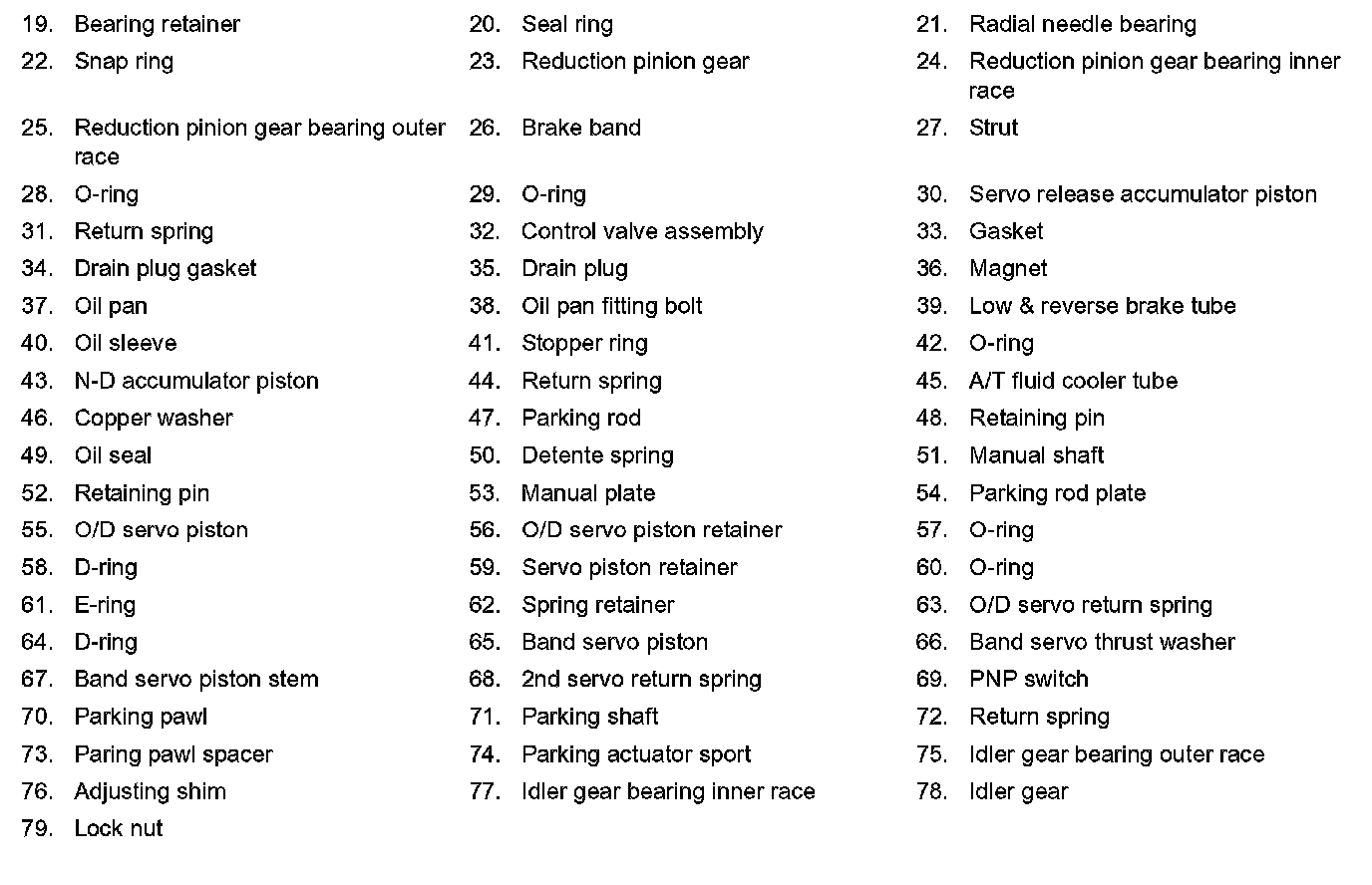

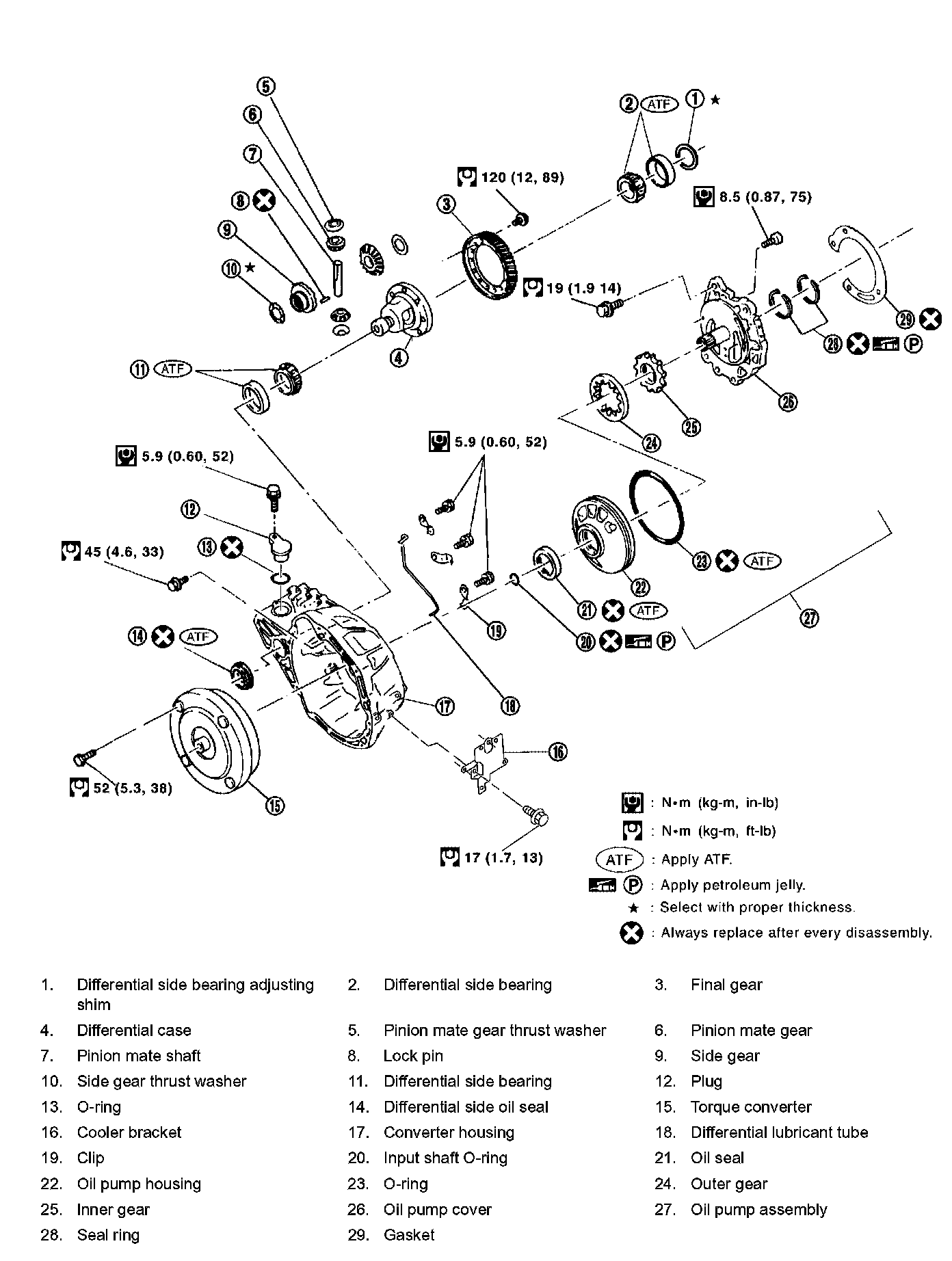

RE4F04B - 1 Of 3:

RE4F04B - 2 Of 3:

RE4F04B - 3 Of 3:

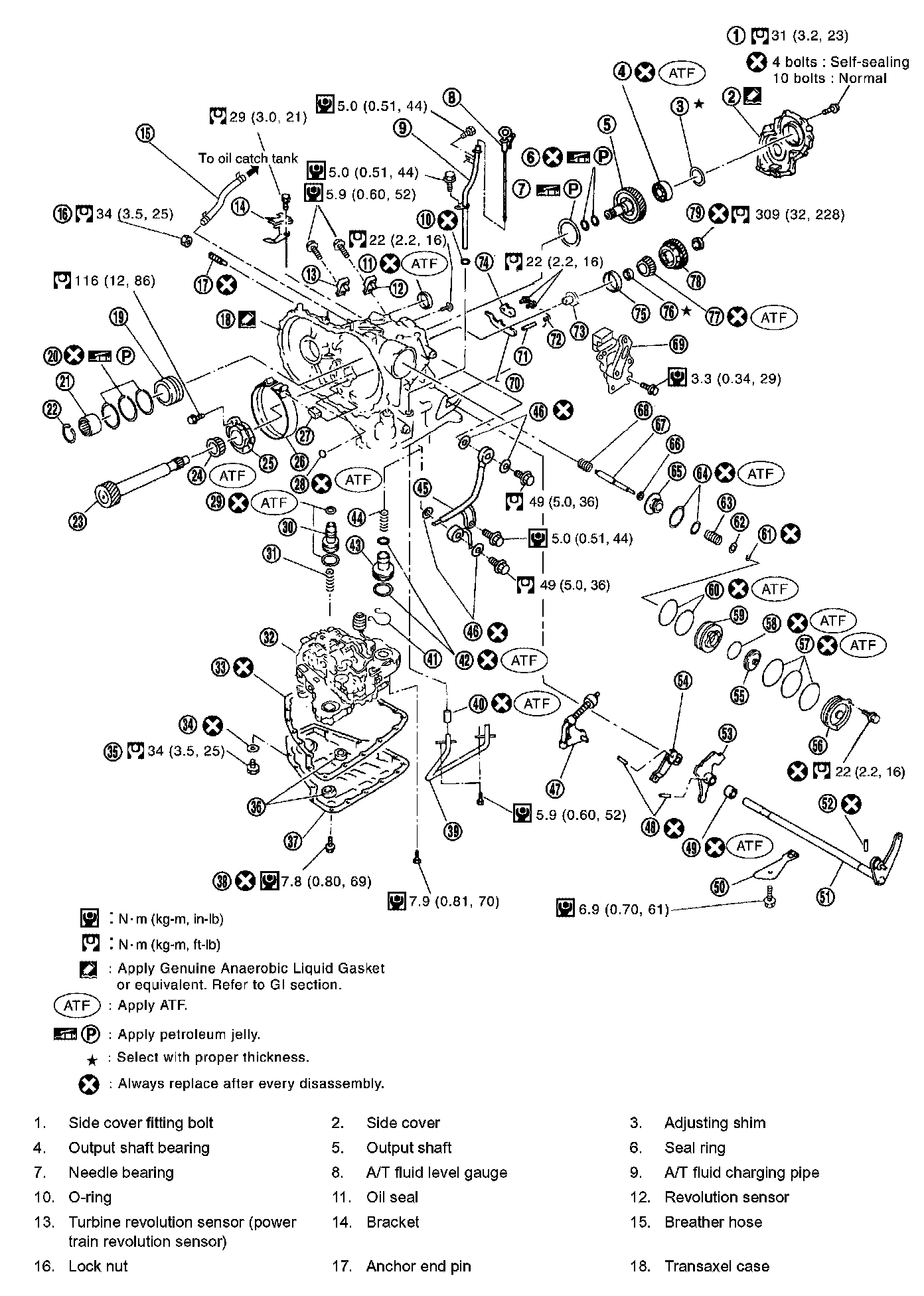

RE4F04B - 1 Of 2:

RE4F04B - 2 Of 2:

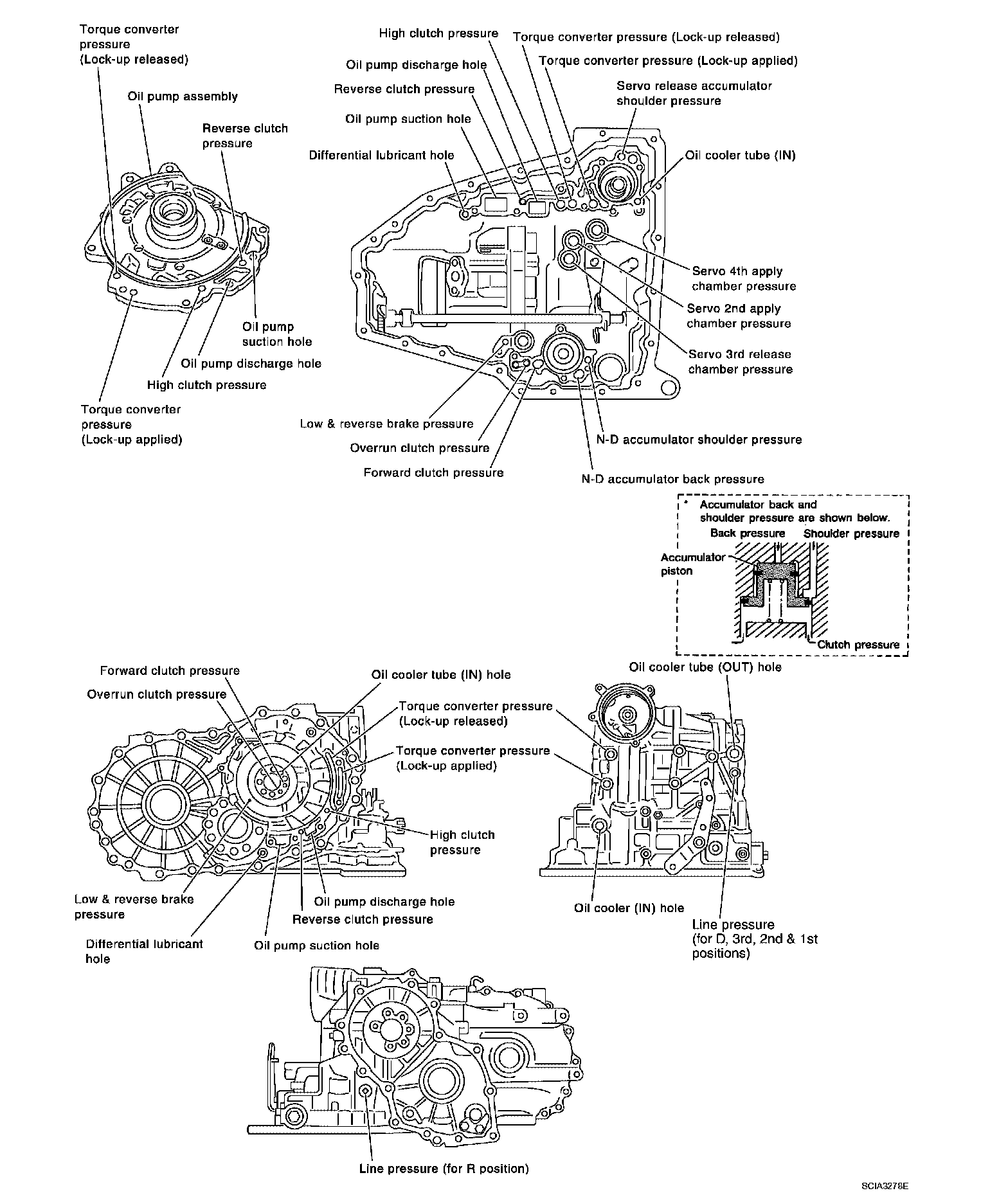

RE4F04B - Oil Channel:

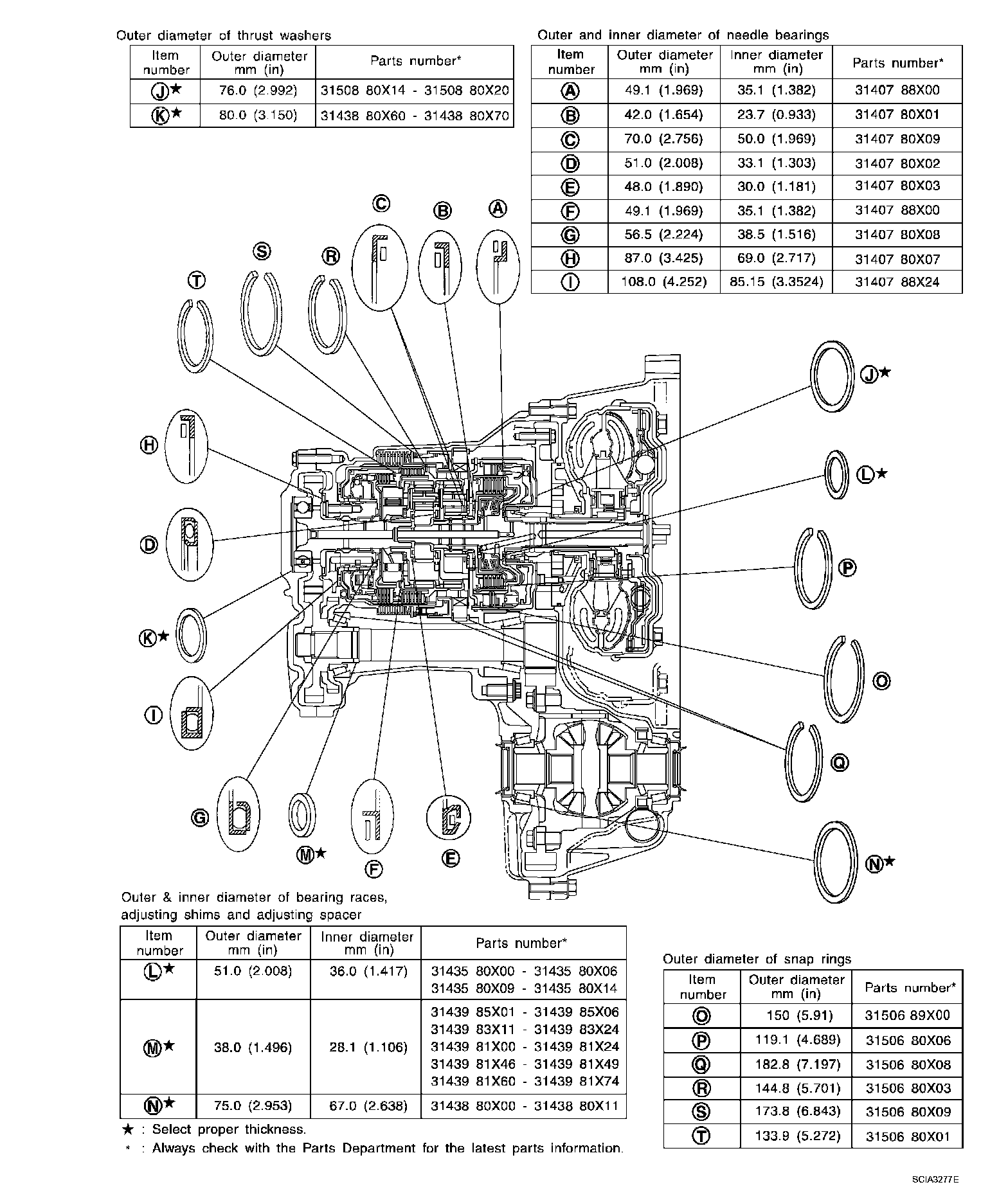

RE4F04B - Locations of Adjusting Shims, Needle Bearings, Thrust Washers and Snap Rings:

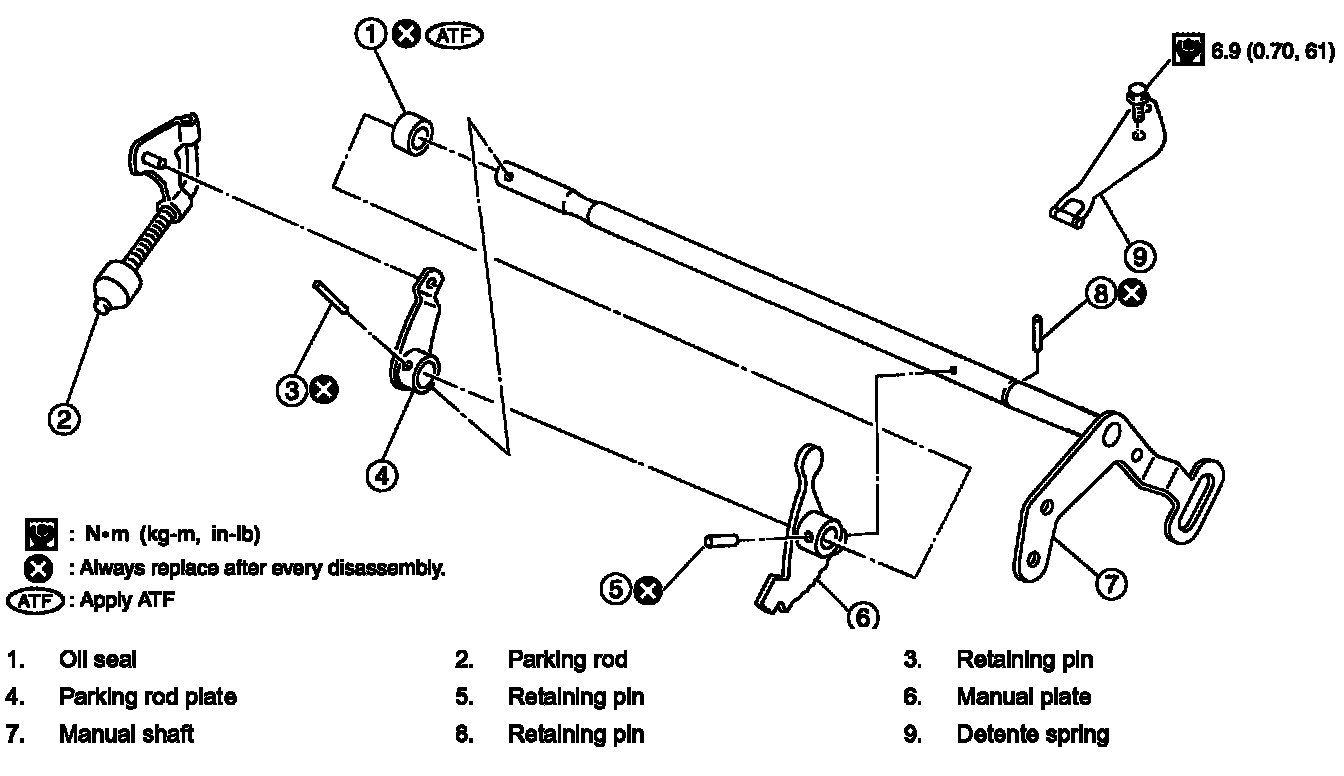

RE4F04B - Manual Shaft:

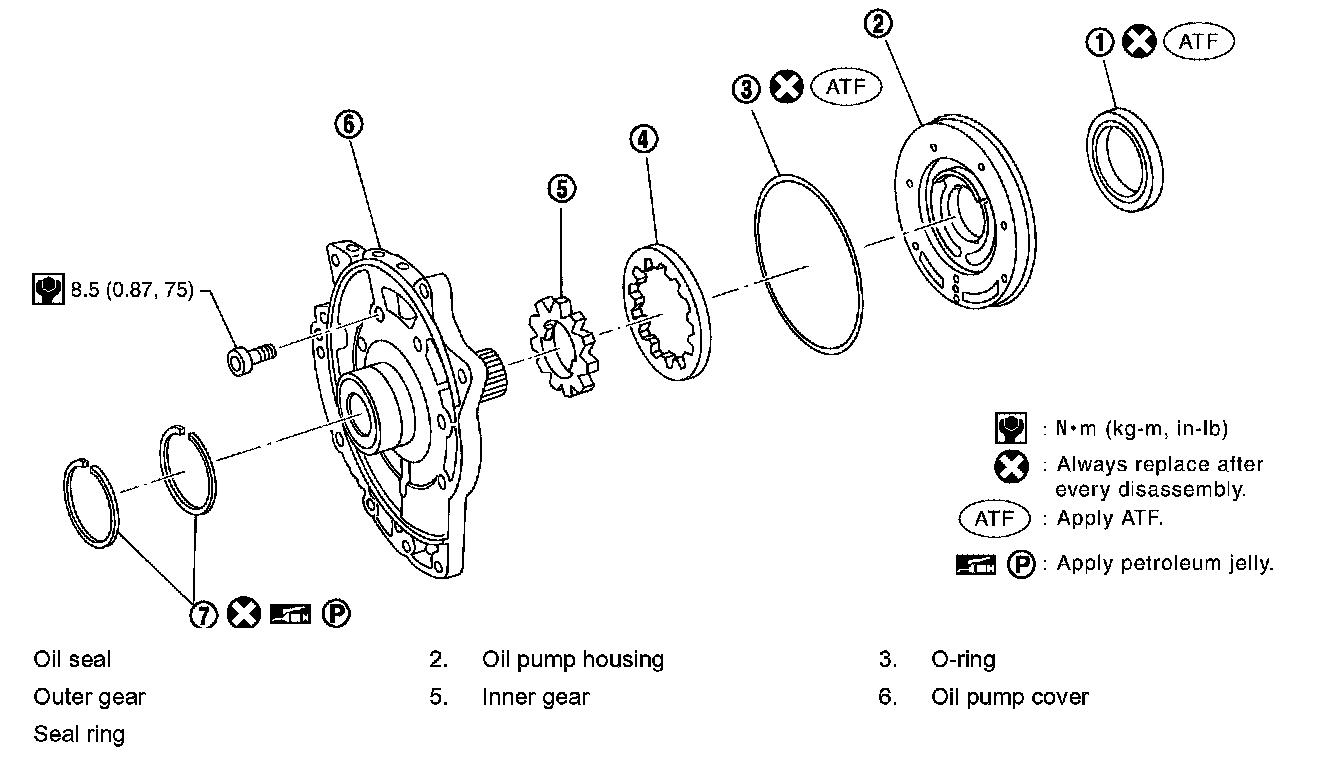

RE4F04B - Oil Pump:

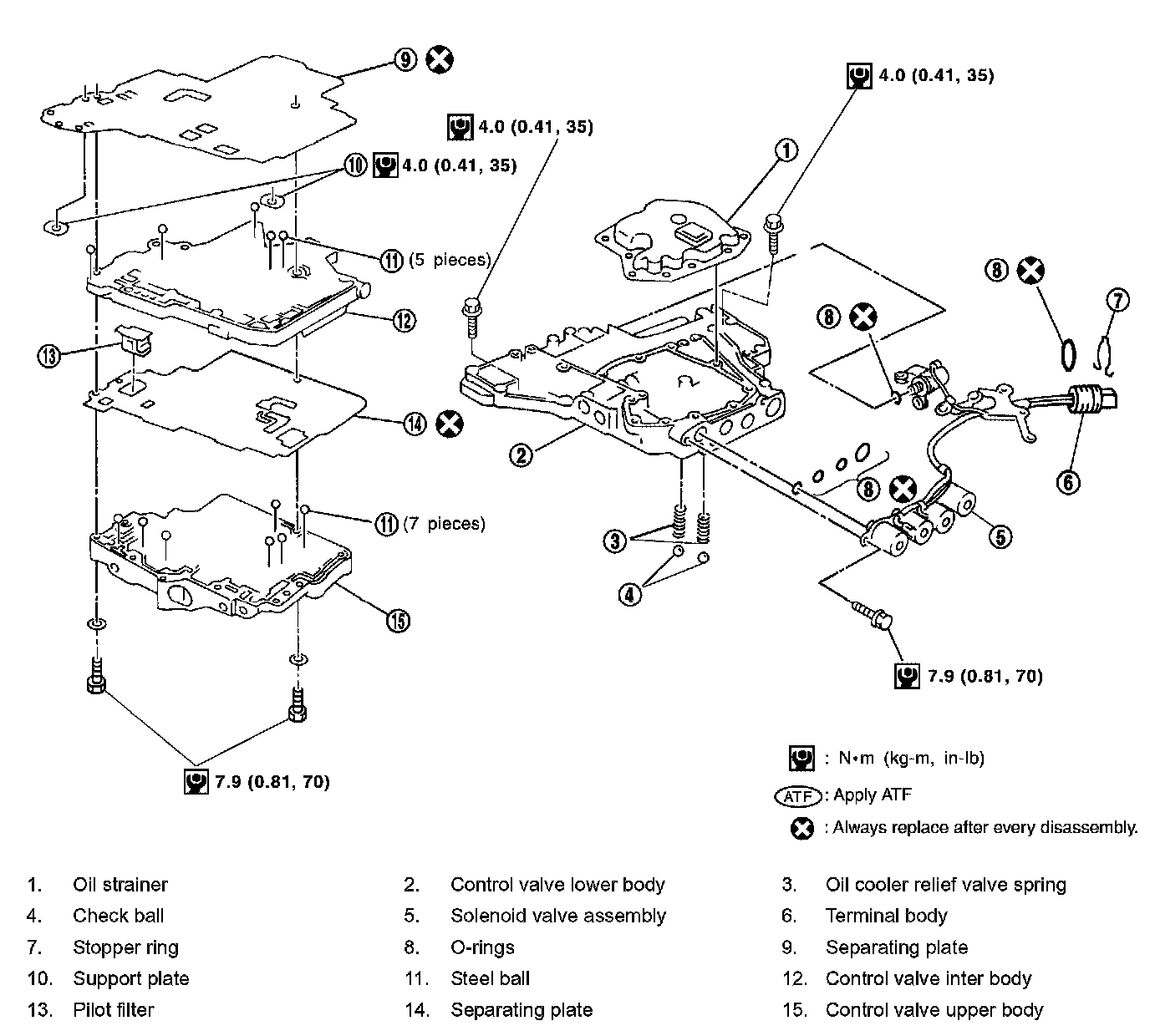

RE4F04B - Control Valve Assembly:

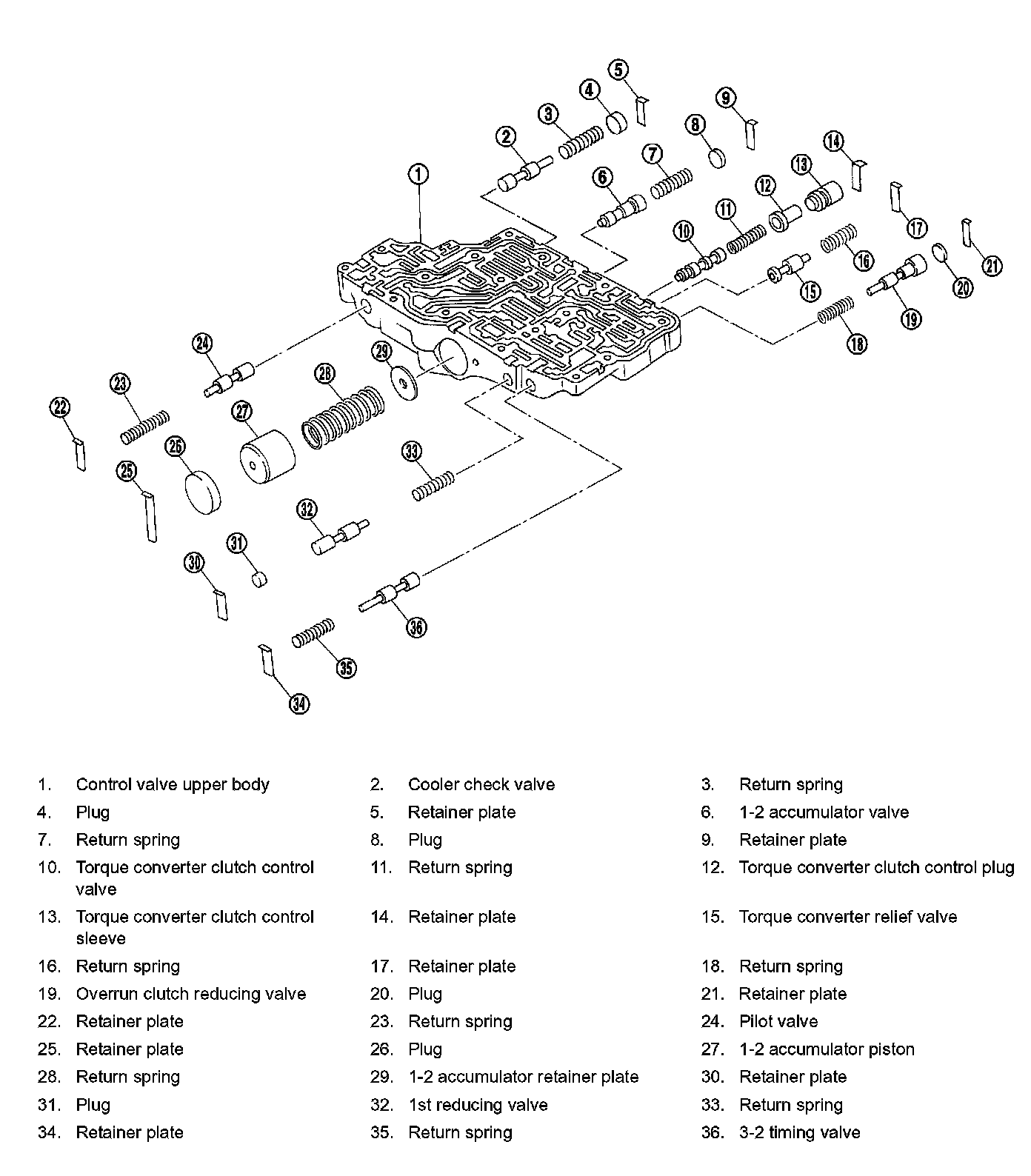

RE4F04B - Control Valve Upper Body:

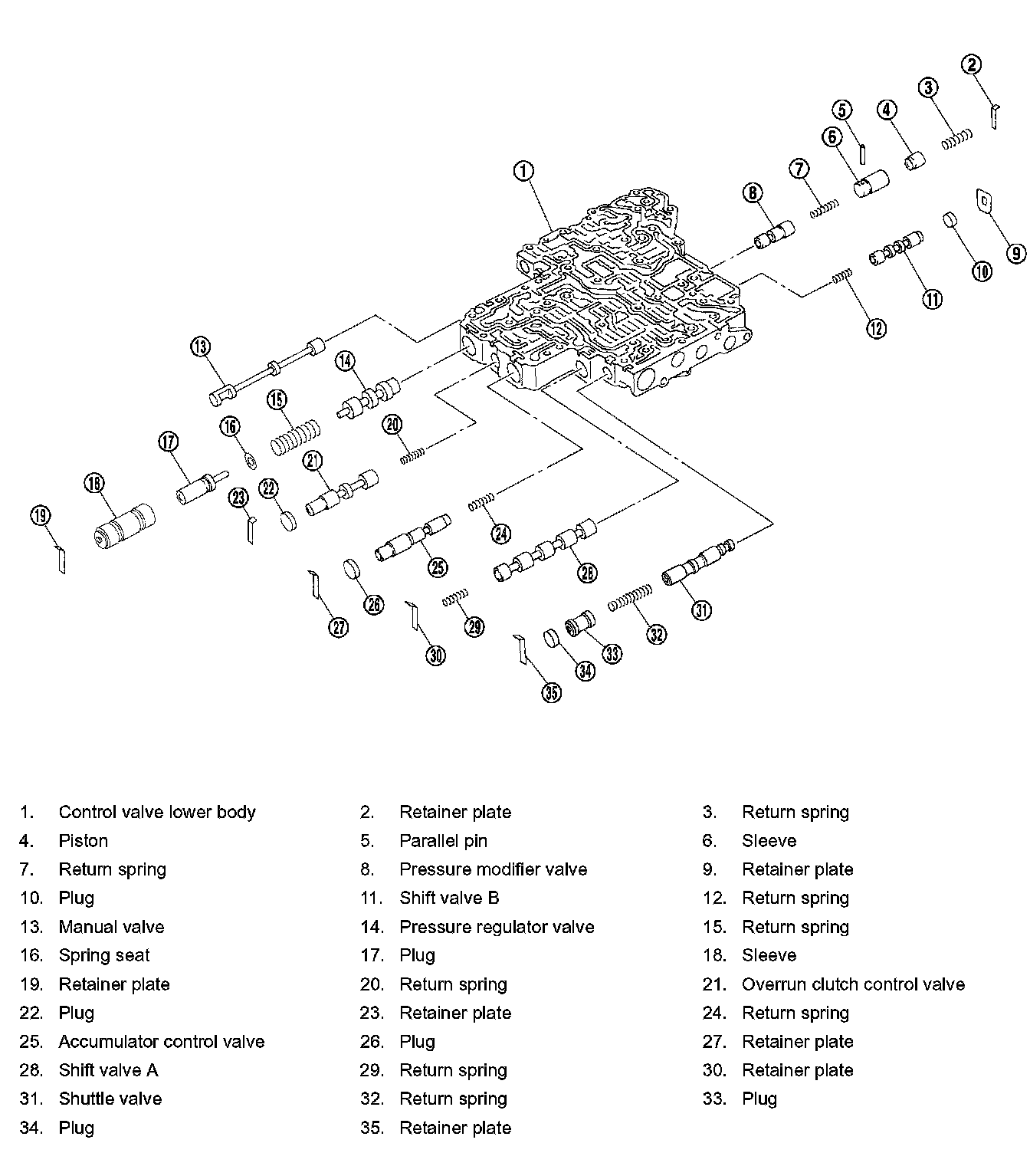

RE4F04B - Control Valve Lower Body:

RE4F04B - Reverse Clutch:

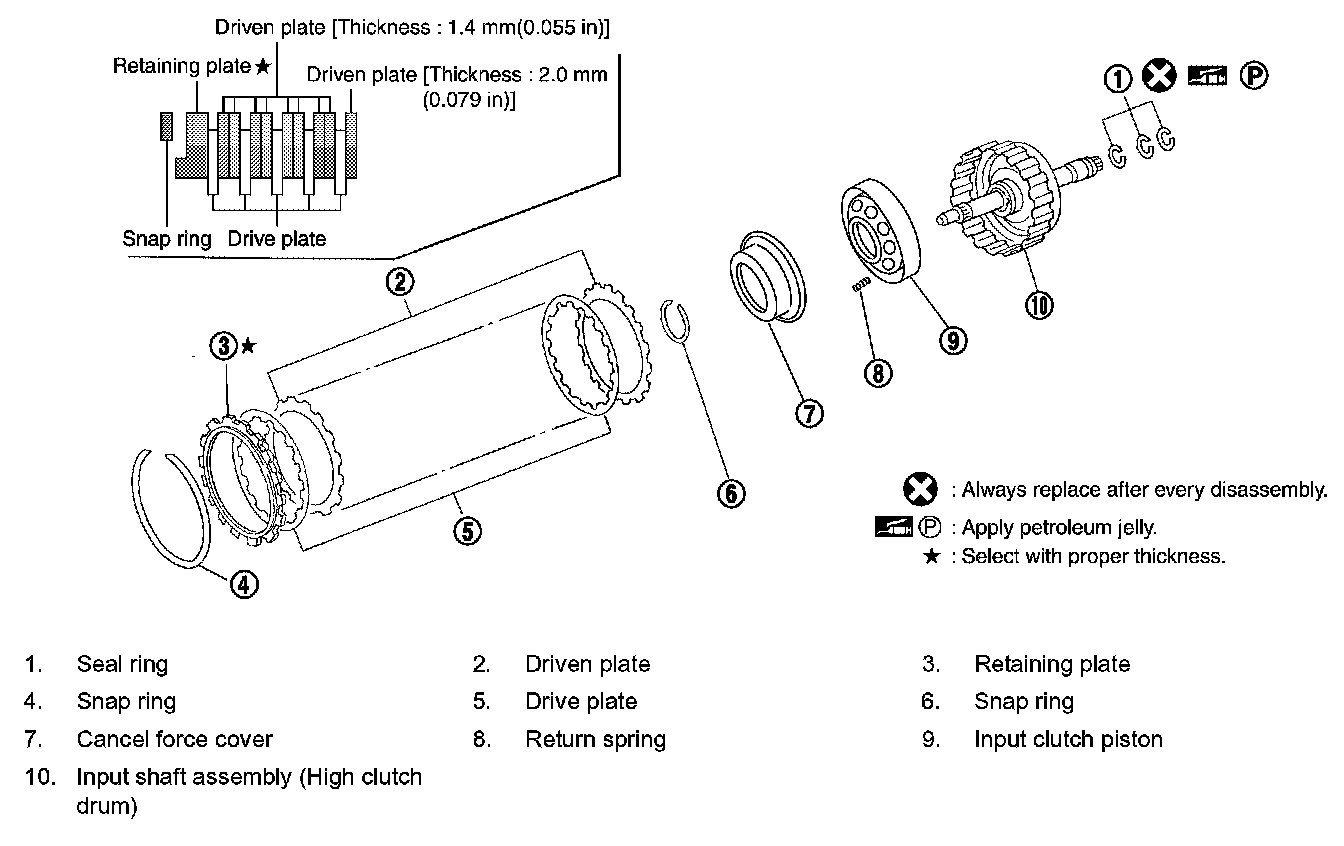

RE4F04B - High Clutch:

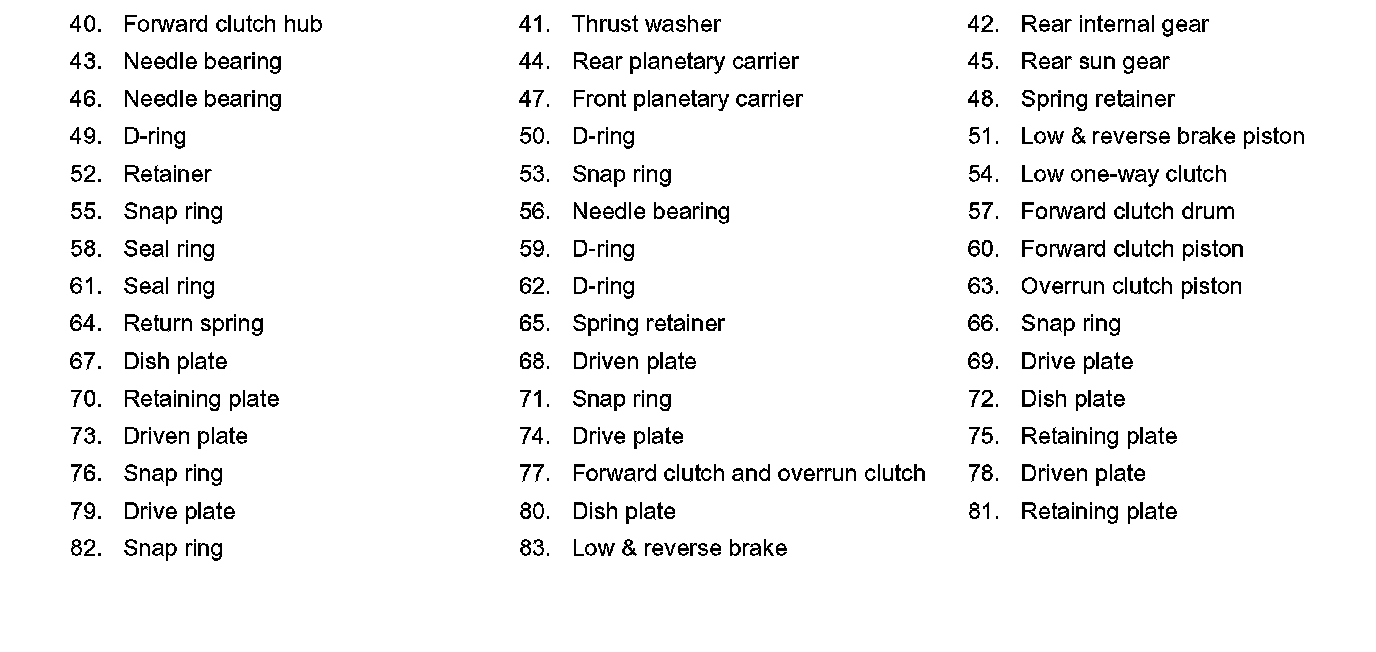

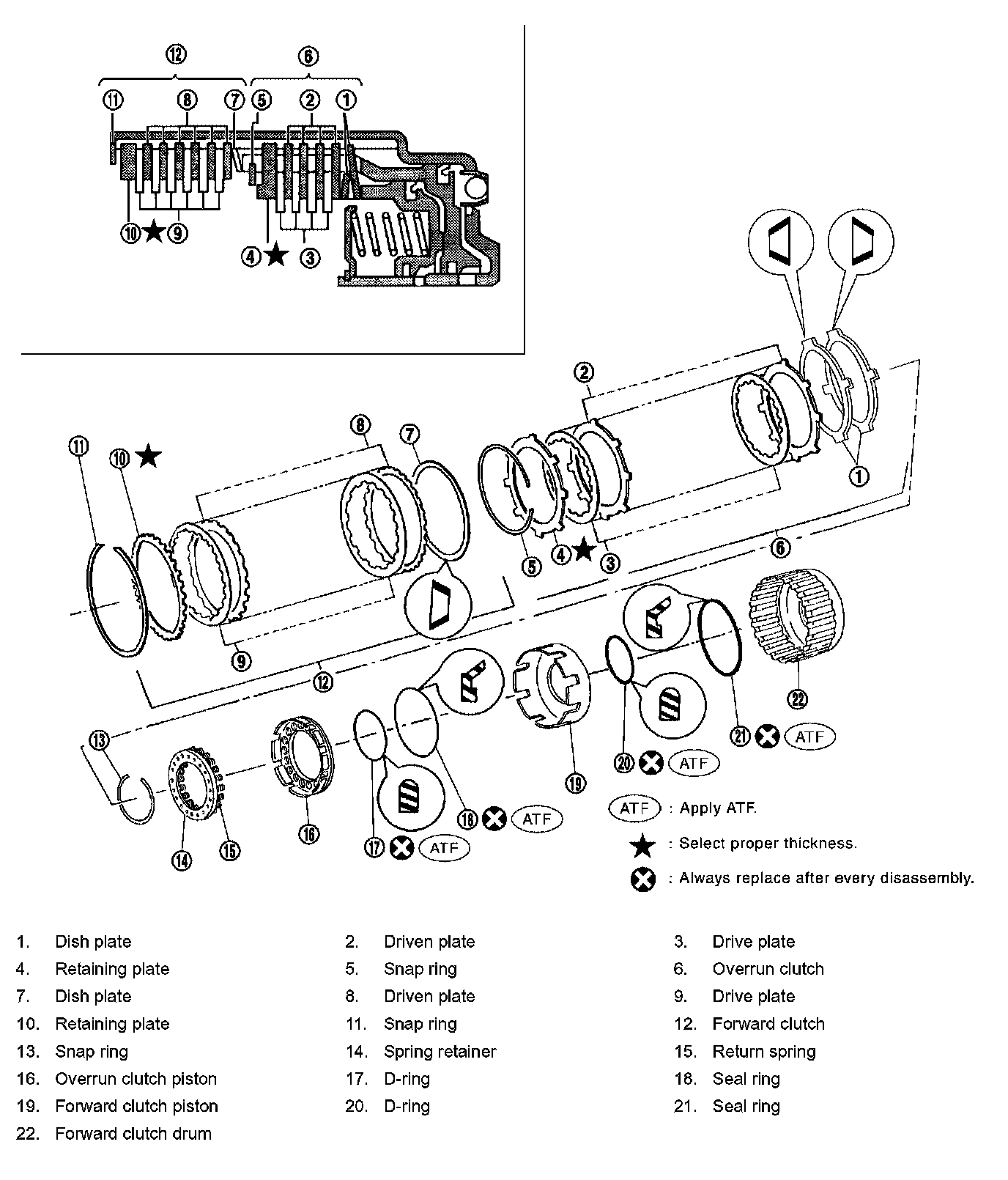

RE4F04B - Forward and Overrun Clutches:

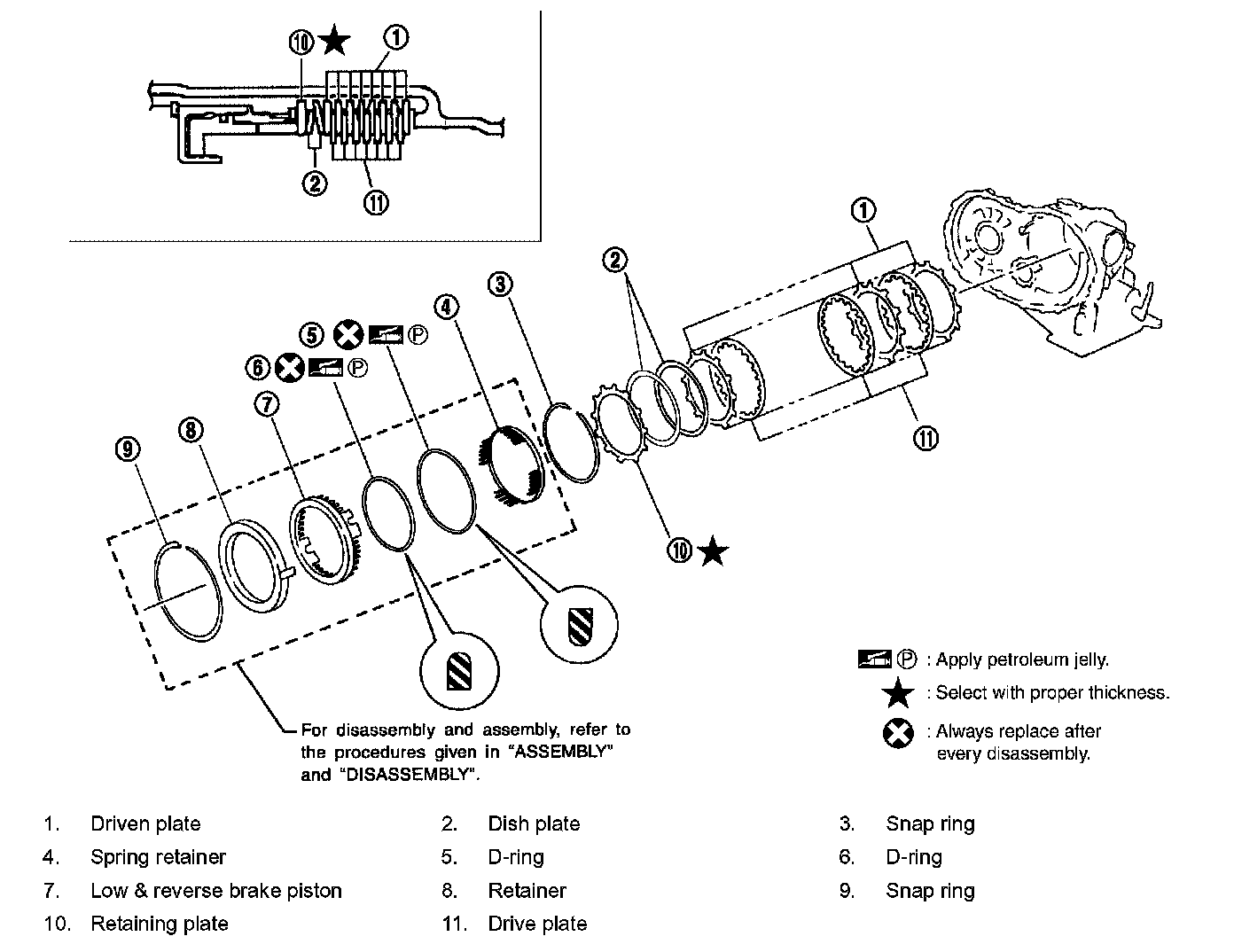

RE4F04B - Low & Reverse Brake:

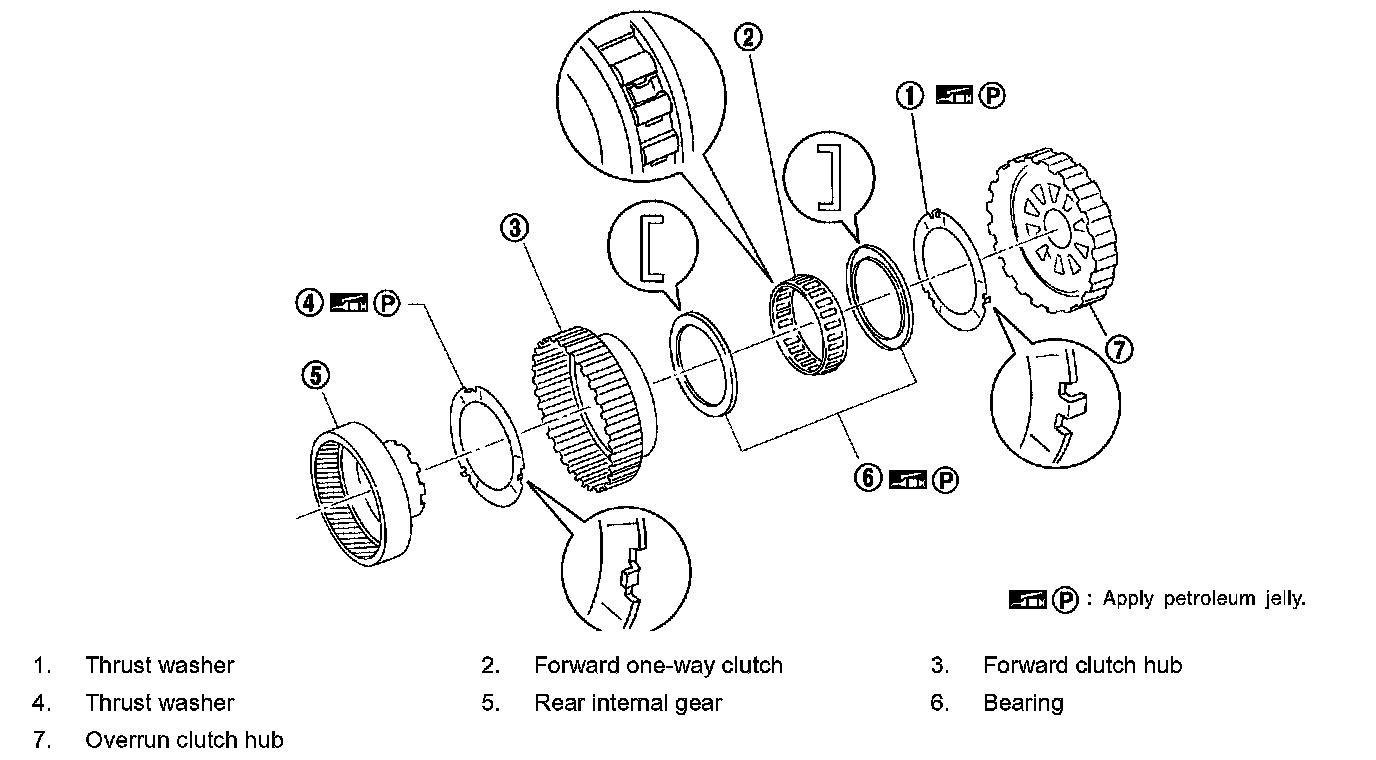

RE4F04B - Rear Internal Gear, Forward Clutch Hub and Overrun Clutch Hub:

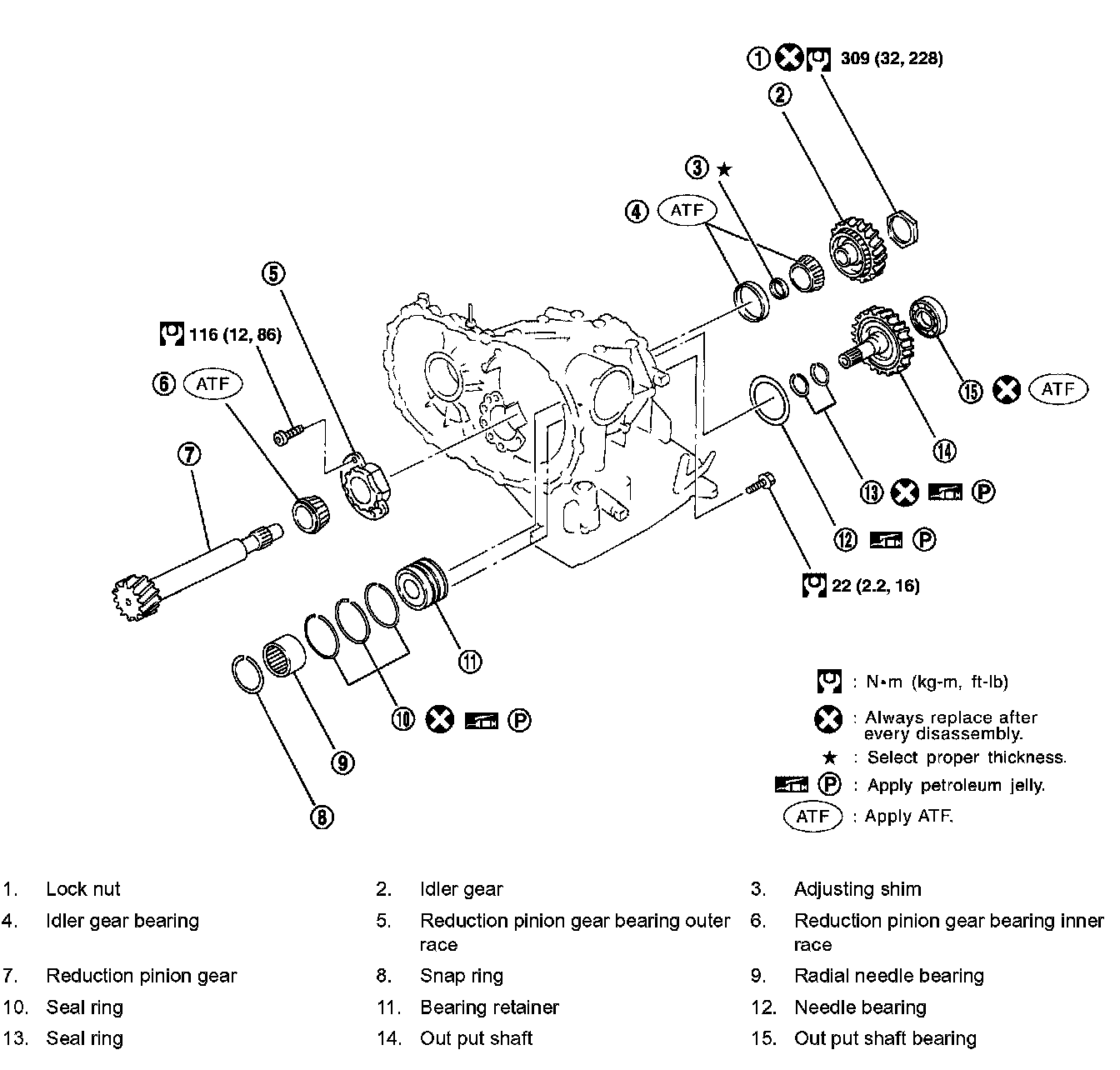

RE4F04B - Output Shaft, Idler Gear, Reduction Pinion Gear and Bearing Retainer:

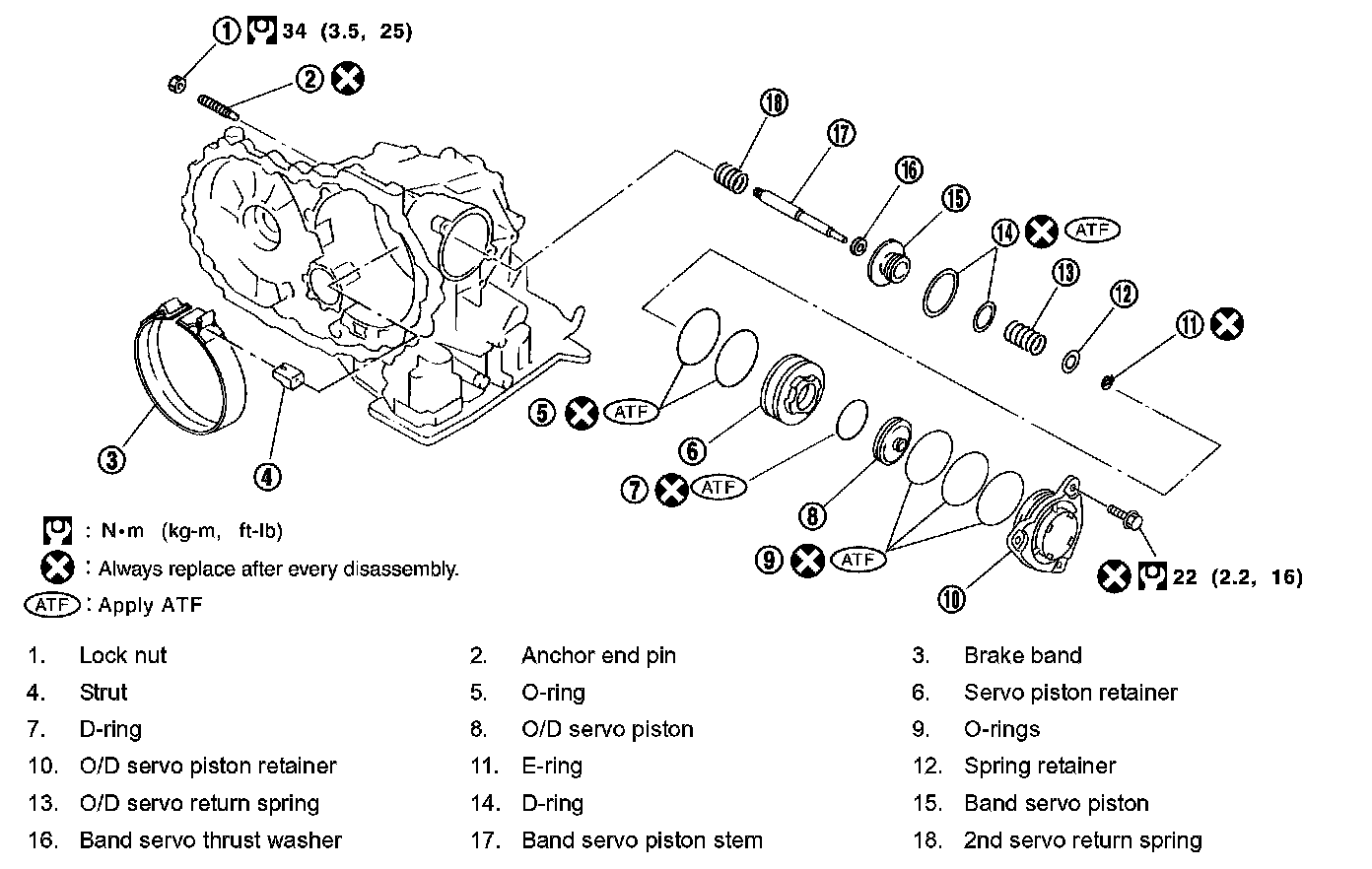

RE4F04B - Band Servo Piston Assembly:

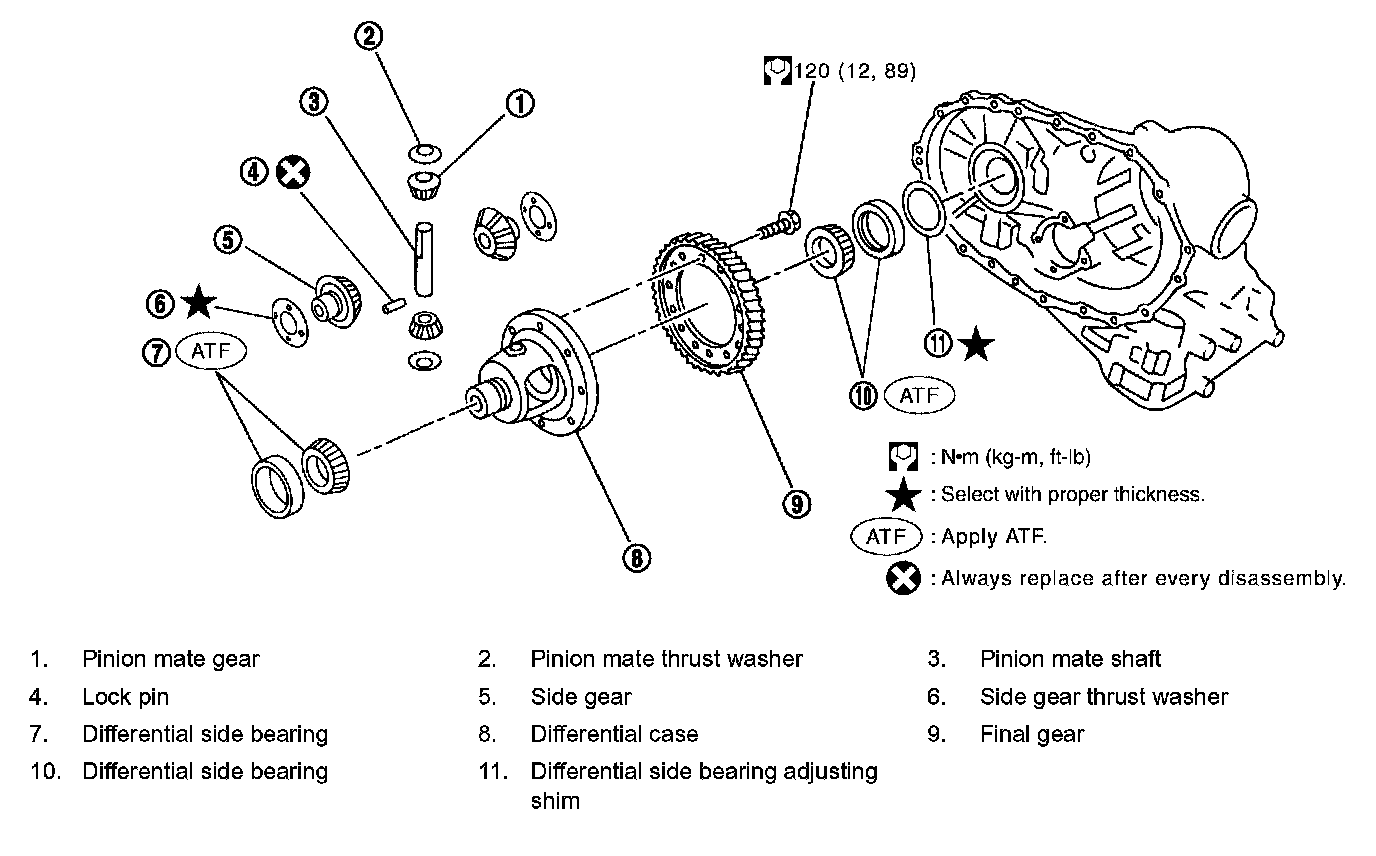

RE4F04B - Final Drive:
