RE4F04B

RE4F04B - Park/Neutral Position (PNP) Switch Adjustment

1. Remove control cable from manual shaft.
2. Set manual shaft in N position.
3. Loosen Park/Neutral Position (PNP) switch fixing bolts.

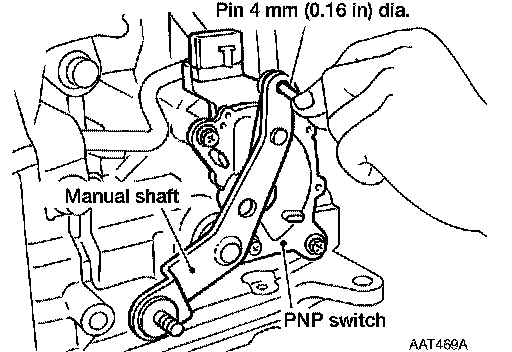

4. Insert pin into adjustment holes in both Park/Neutral Position (PNP) switch and manual shaft as near vertical as possible.
5. Installation is in the reverse order of removal.
6. Check continuity of Park/Neutral Position (PNP) switch. Refer to "P0705; Diagnostic Procedure".
