Major Sensor Reference Graph In Data Monitor Mode

Major Sensor Reference Graph in Data Monitor Mode
The following are the major sensor reference graphs in "DATA MONITOR" mode.

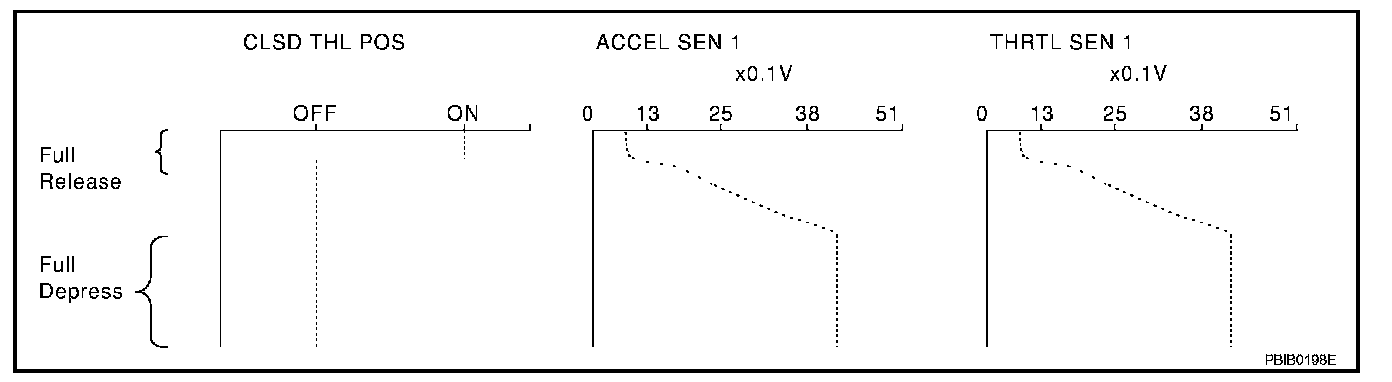

CLSD THL POS, ACCEL SEN 1, THRTL SEN 1
Below is the data for "CLSD THL POS", "ACCEL SEN 1" and "THRTL SEN 1" when depressing the accelerator pedal with the ignition switch ON and with selector lever in D position (A/T models) or with shift lever in 1st position (M/T models).

The signal of ACCEL SEN 1 and THRTL SEN 1 should rise gradually without any intermittent drop or rise after CLSD THL POS is changed from ON to OFF.

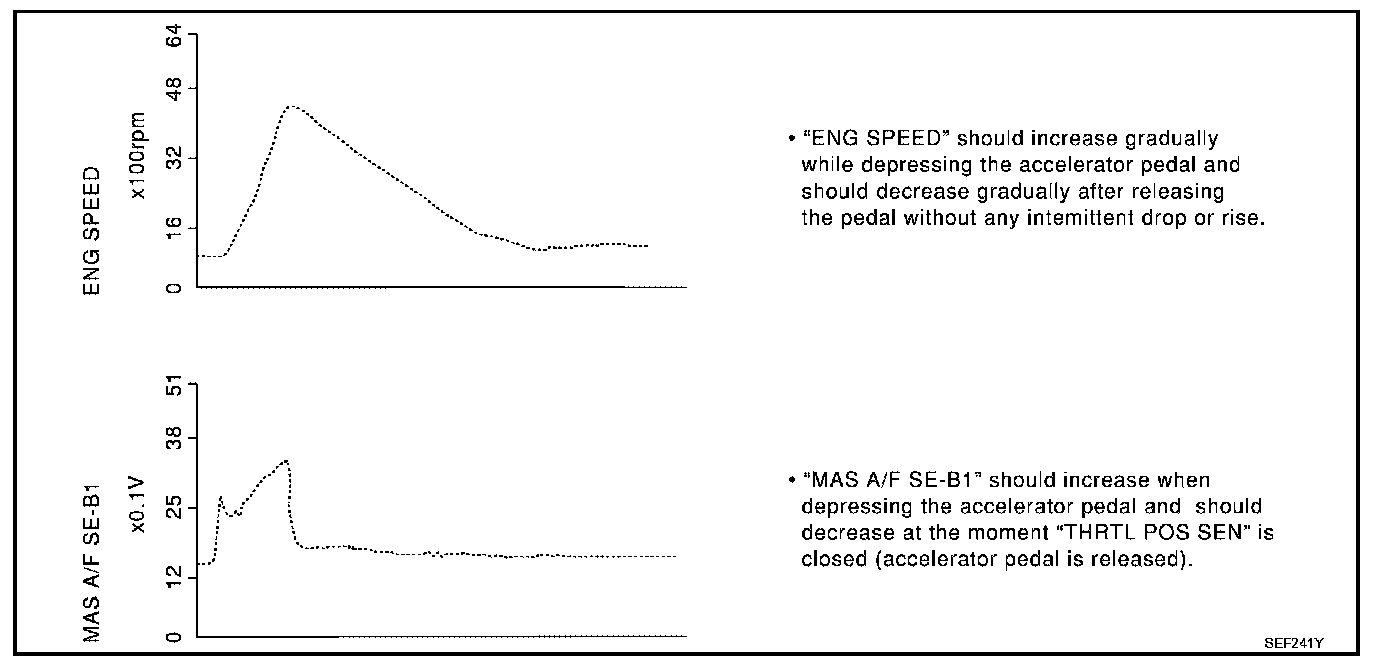

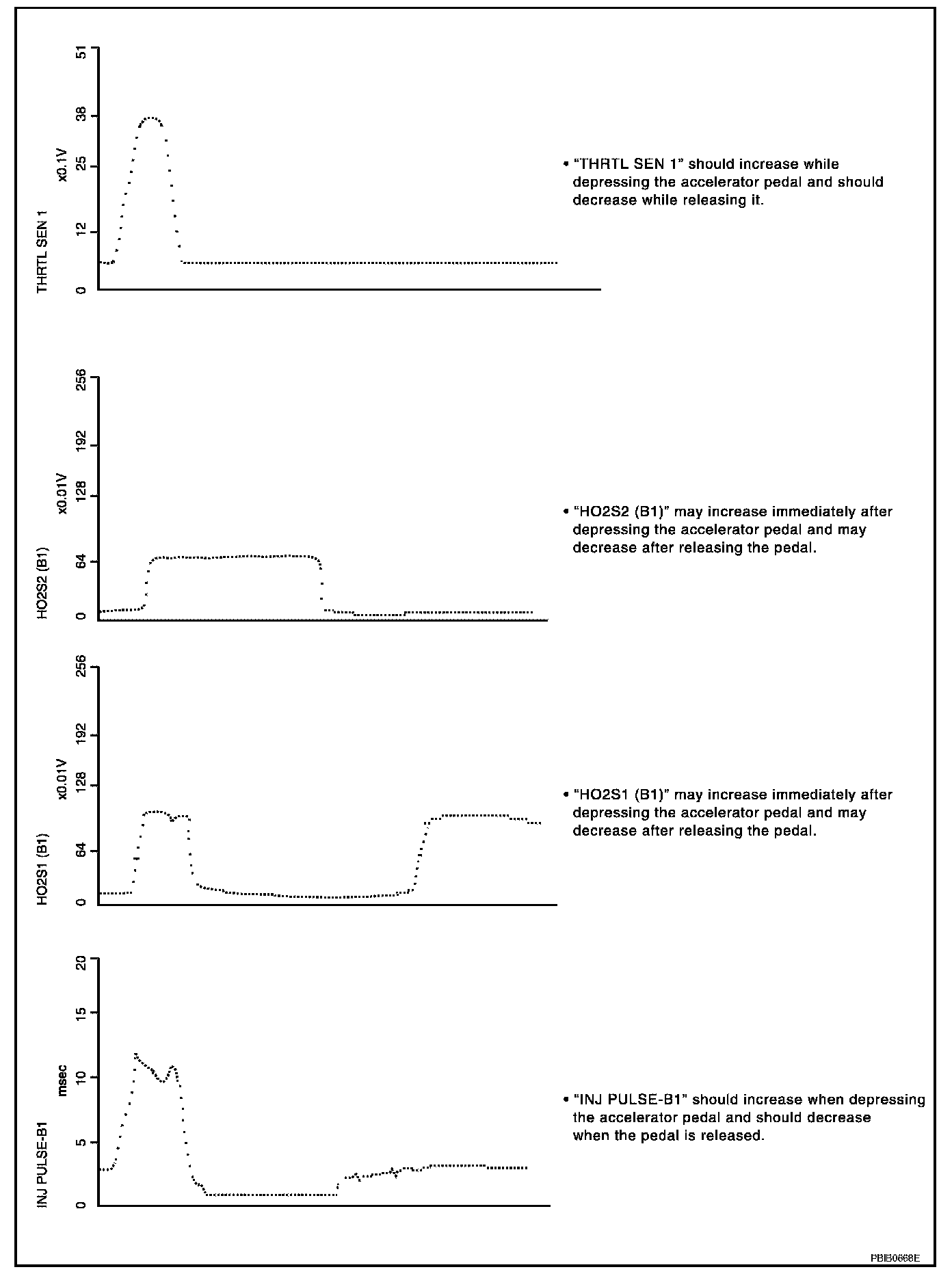

ENG SPEED, MAS A/F SE-B1, THRTL SEN 1, HO2S2 (B1), HO2S1 (B1), INJ PULSE-B1(A/T MODELS ULEV AND M/T MODELS)

The data for ENG SPEED, MAS A/F SE-B1, THRTL SEN 1, HO2S2 (B1), HO2S1 (B1) and INJ PULSE-B1 when revving engine quickly up to 4,800 rpm under no load after warming up engine sufficiently.

Each value is for reference, the exact value may vary.

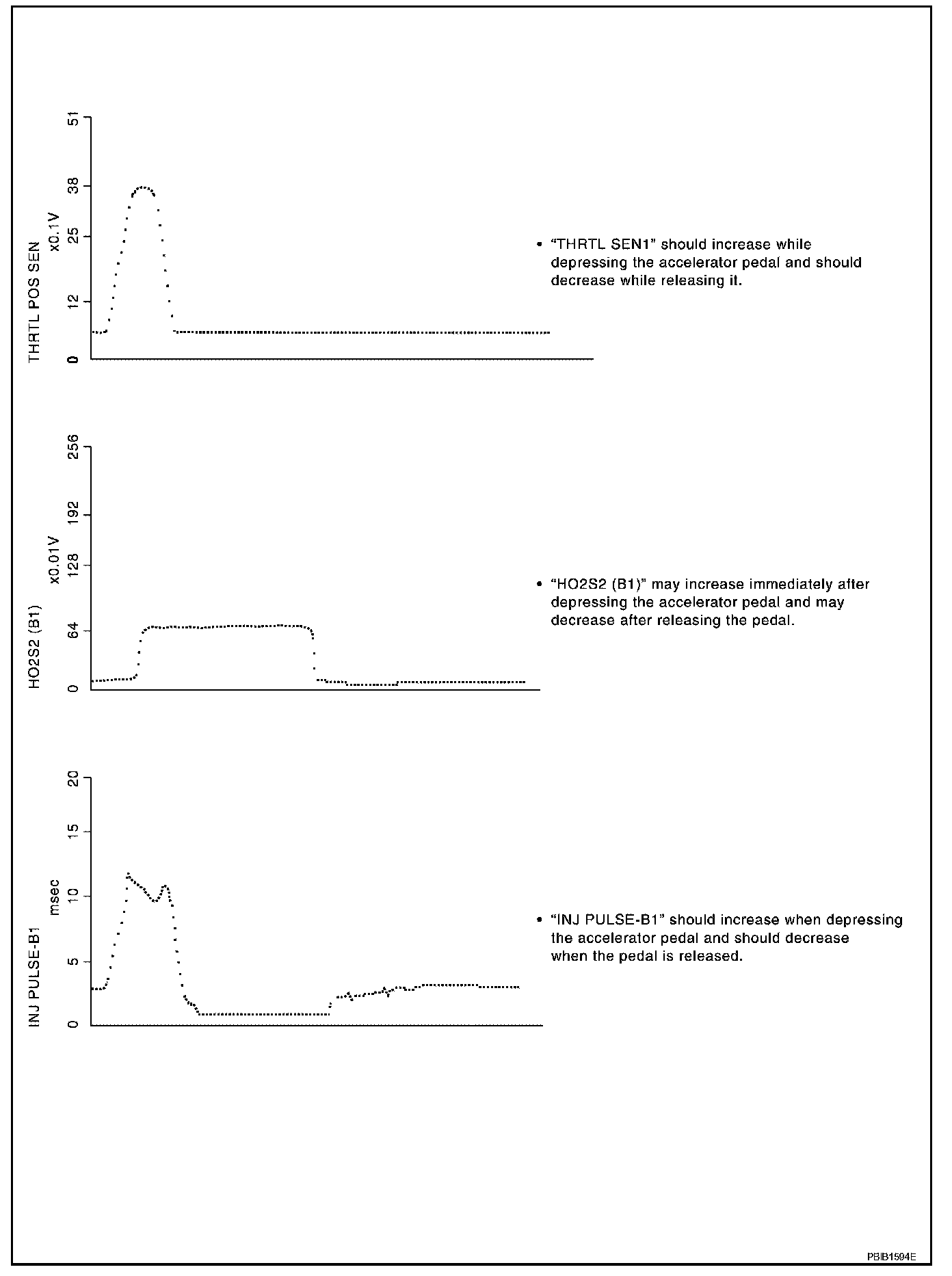

ENG SPEED, MAS A/F SE-B1, THRTL SEN 1, HO2S2 (B1), INJ PULSE-B1(A/T MODELS EXCEPT ULEV)
