Neutral Safety Switch: Testing and Inspection

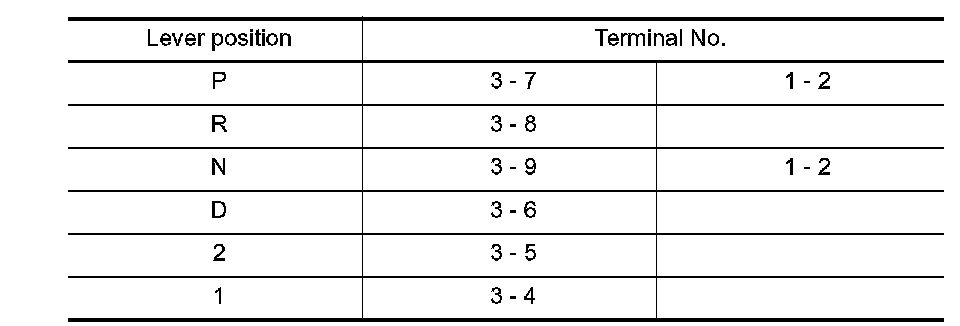

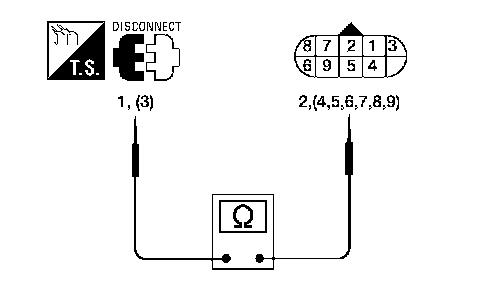

Park/neutral position (PNP) switch Check continuity between park/neutral position
(PNP) switch F29 terminals 1 (G/OR) and 2 (B) and between terminals 3 (Y) and 4 (OR), 5 (L), 6 (W/G), 7 (BR/W), 8 (G/W) and 9 (G) while moving manual shaft through each position.
