Service Data and Specifications

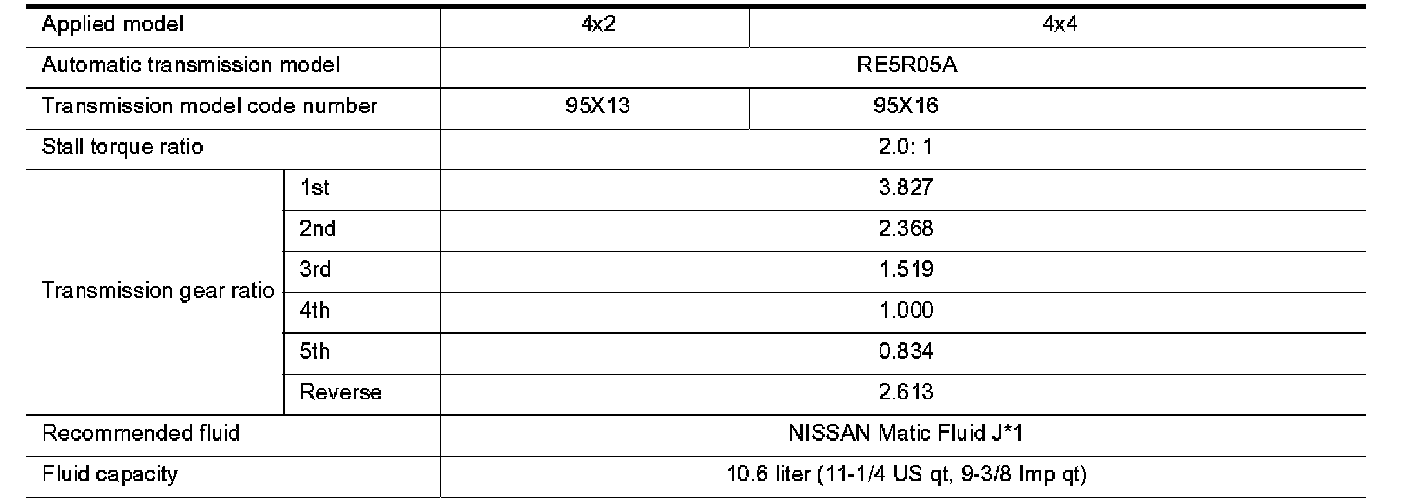

General Specifications

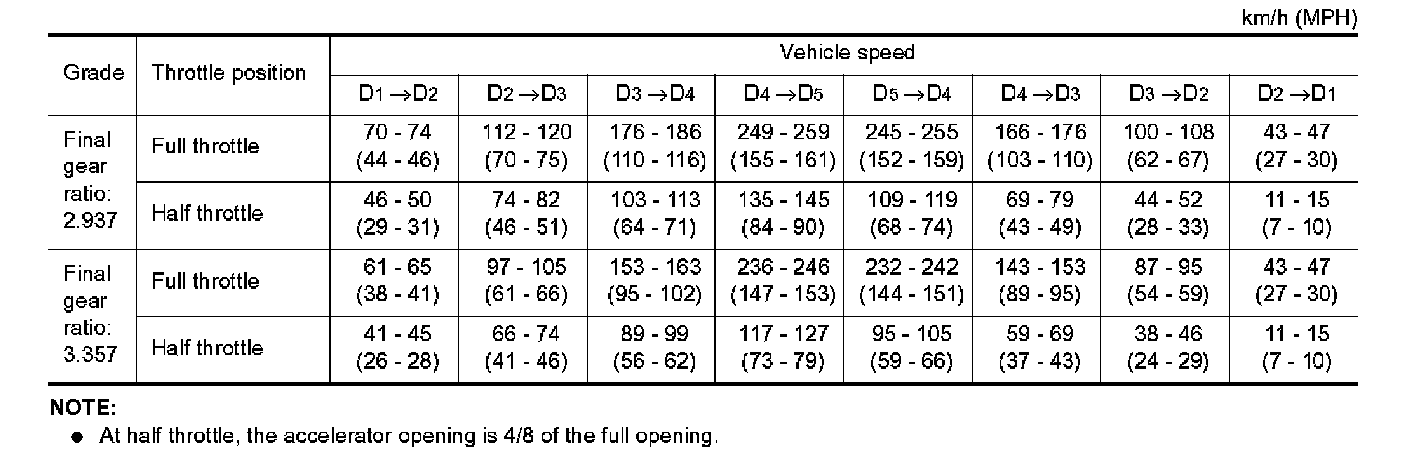

Vehicle Speed When Shifting Gears





NORMAL MODE





TOW MODE

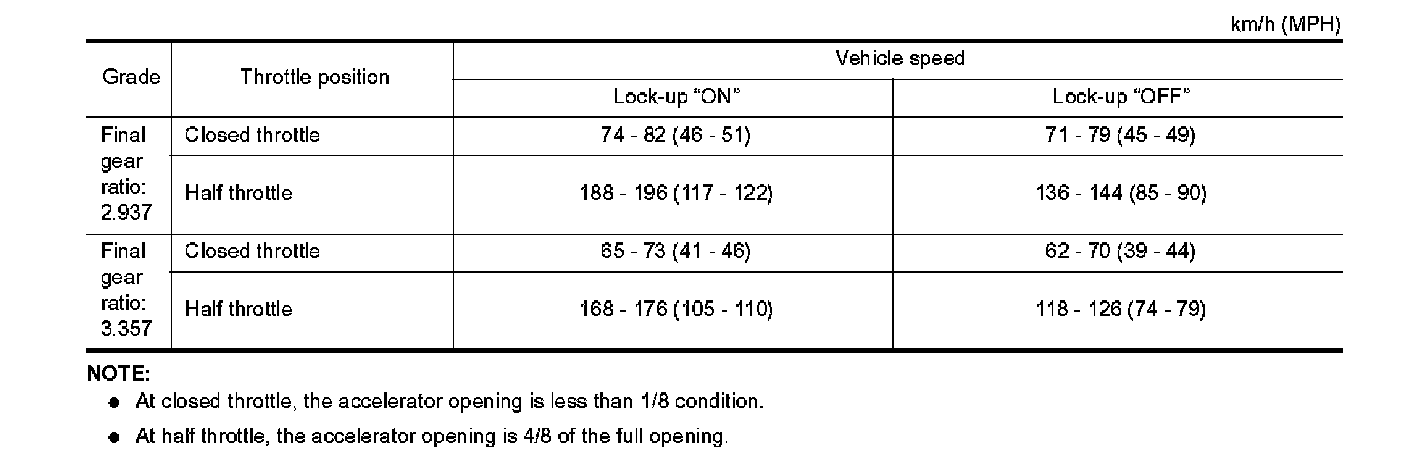

Vehicle Speed When Performing and Releasing Complete Lock-up





Vehicle Speed When Performing and Releasing Slip Lock-up





Stall Speed
