System Specifications

Timing Chain Tensioner Bolt 6.9 Nm (0.70 kg-m, 61 inch lbs.)

Crankshaft Pulley Bolt
Step 1 93.1 Nm (9.5 kg-m, 69 ft. lbs.)
Step 2 additional 90° (angle tightening)

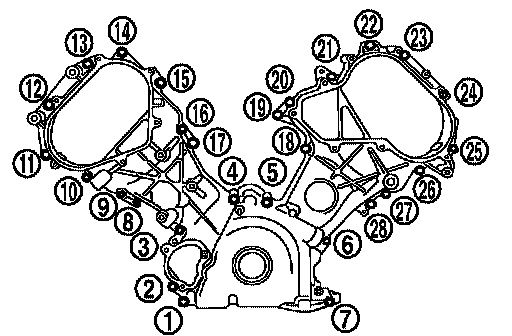

Timing Cover Bolts 11.0 Nm (1.1 kg-m, 8 ft. lbs.)
