Intake Manifold
Intake Manifold and Fuel Tube Protector ^
If stud bolts were removed, install them and tighten to the specified torque.
Intake manifold bolts
9.4 Nm (0.96 kg-m, 83 inch lbs.)
^

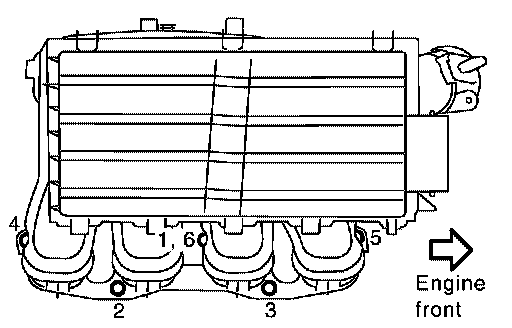

Tighten in numerical order as shown.
NOTE: No. 6 means double tightening of bolt No. 1.
Refer to the following for locating bolts and nuts.
M8 x 38 mm (1.50 inch) (Color green) : No. 1, 6
M8 x 35 mm (1.38 inch) : No. 2, 3
Nut : No.4, 5
