Navigation Module: Service and Repair
Removal and Installation of NAVI control unit
REMOVAL
CAUTION: To avoid damage, eject map DVD-ROM before removing the NAVI
control unit.
1.
Remove center stack. Refer to "Center Stack Assembly".
2.

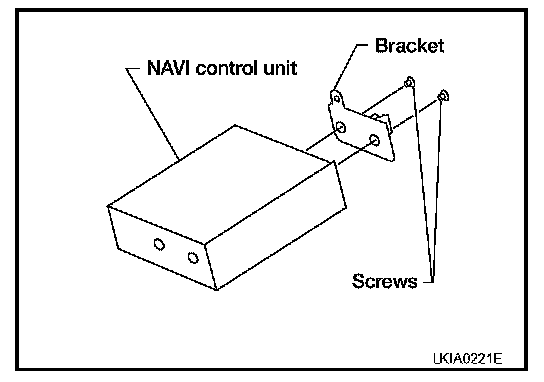

Remove screws and remove remaining bracket.
INSTALLATIONInstall in the reverse order of removal.
