Control Module HVAC: Service and Repair

UNIFIED METER AND A/C AMP.

Removal and Installation




REMOVAL
1. Remove the shift knob.
2. Remove the shift bezel.
3. Remove cluster lid C. Refer to "Cluster Lid C".
4. Remove cluster lid D. Refer to "Cluster Lid D".
5. Remove the center stack.

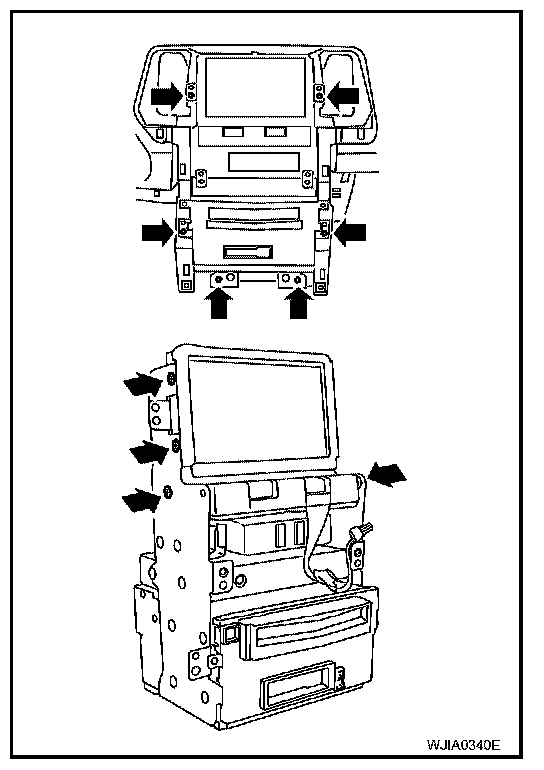

6. Remove the bolts securing the rear of the unified meter and A/C auto amp.
7. Remove the bolts on either side of display screen.
8. Gently spread the top of the bracket and remove the unified meter and A/C auto amp.

INSTALLATION
Installation is in the reverse order of removal.
