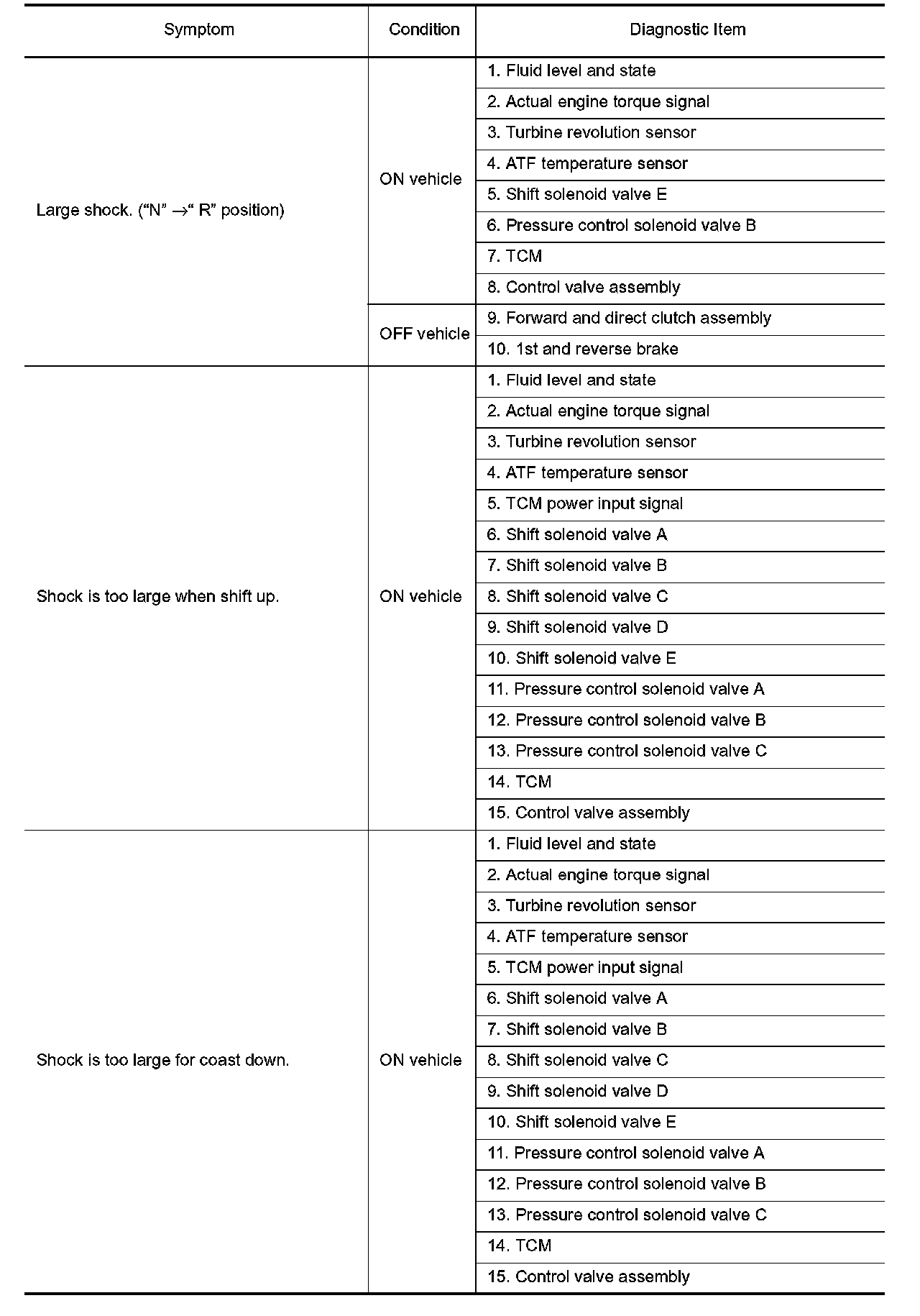

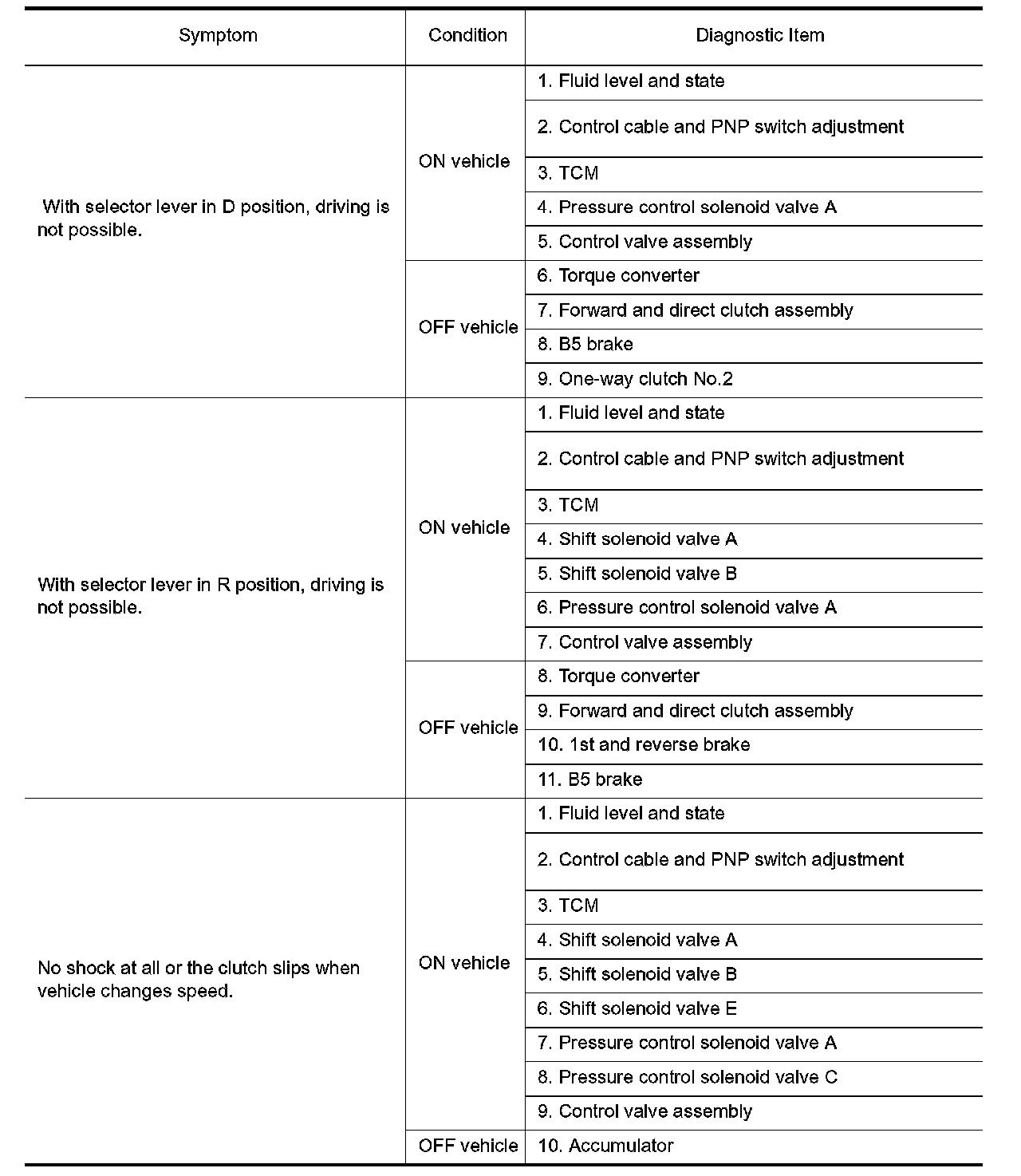

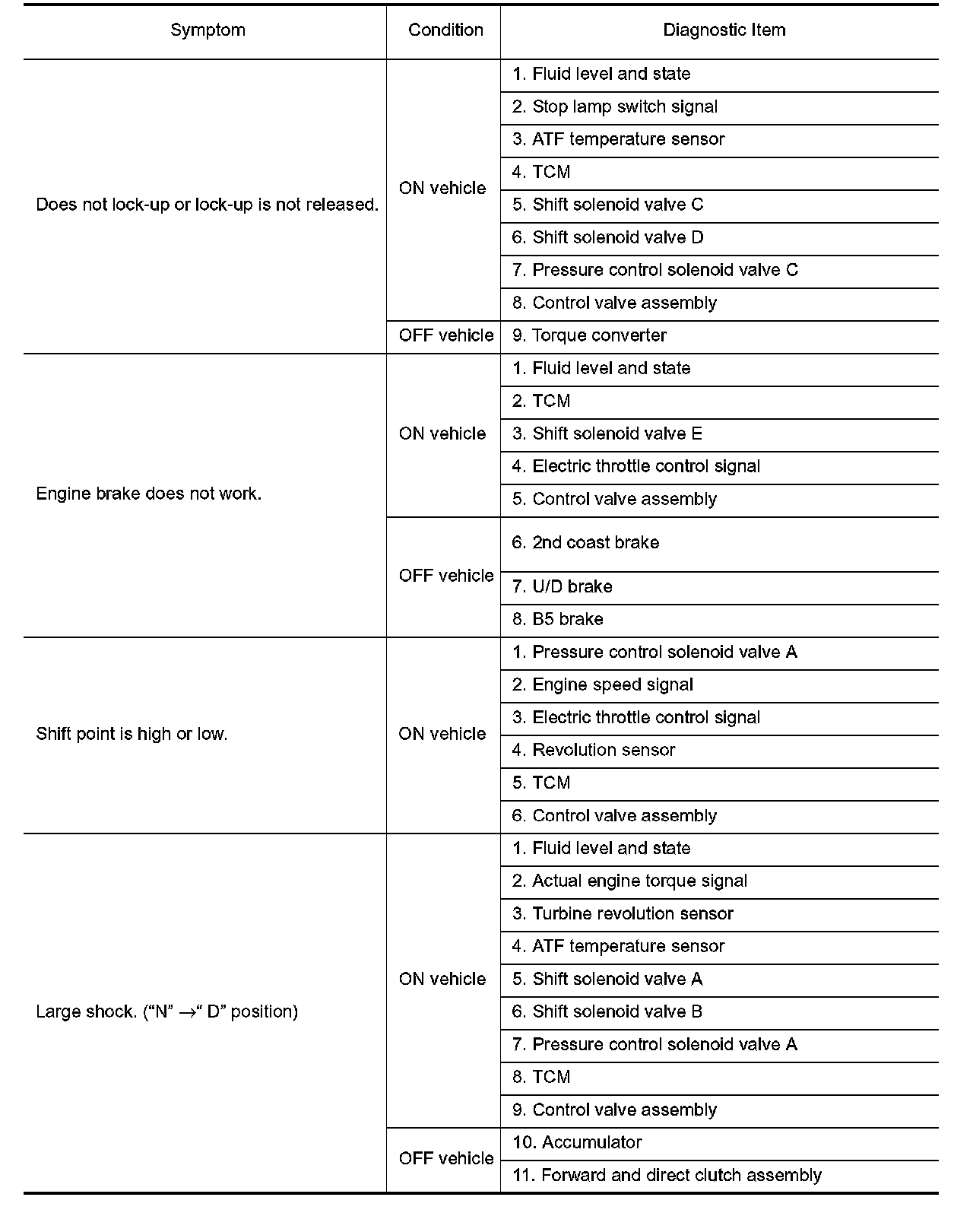

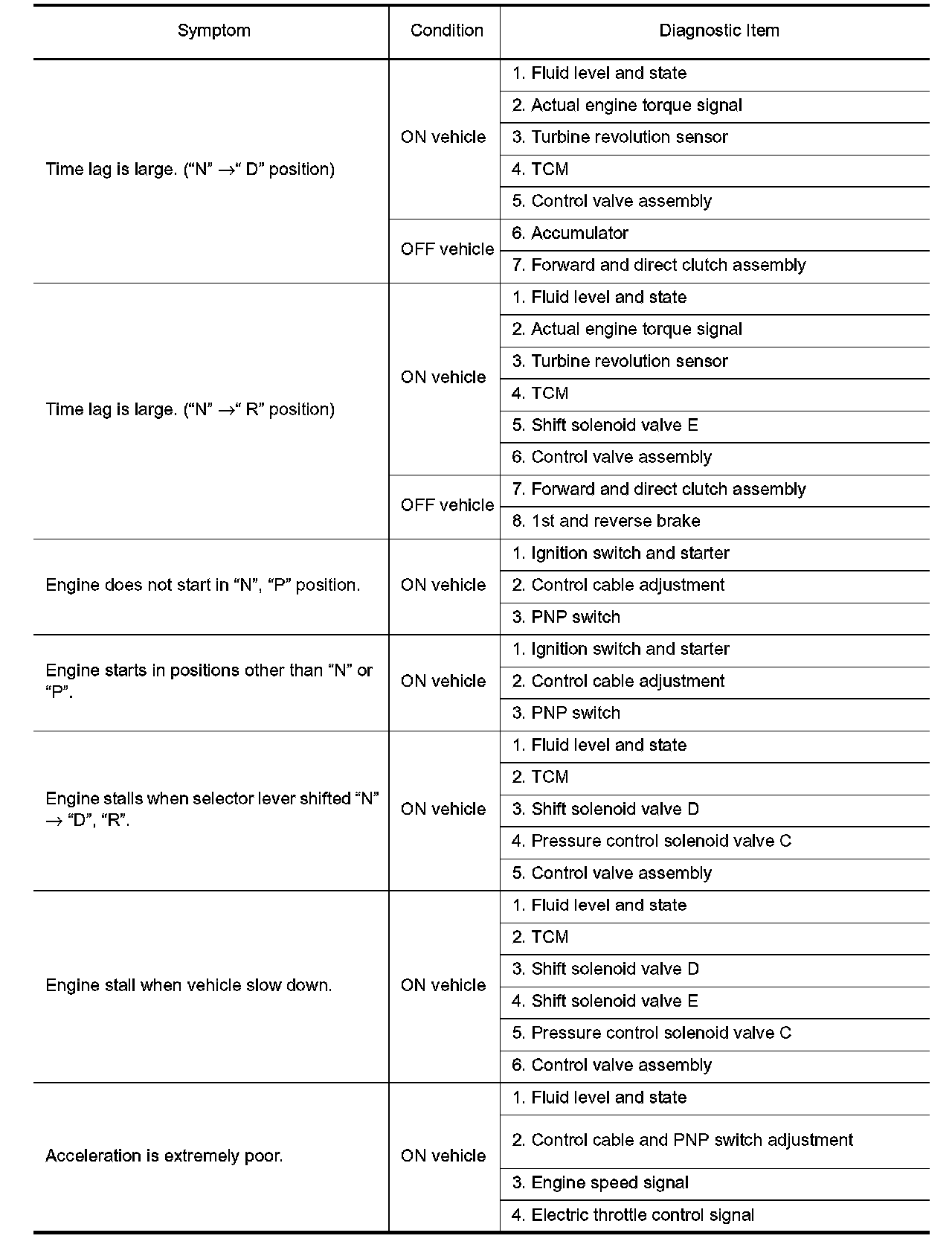

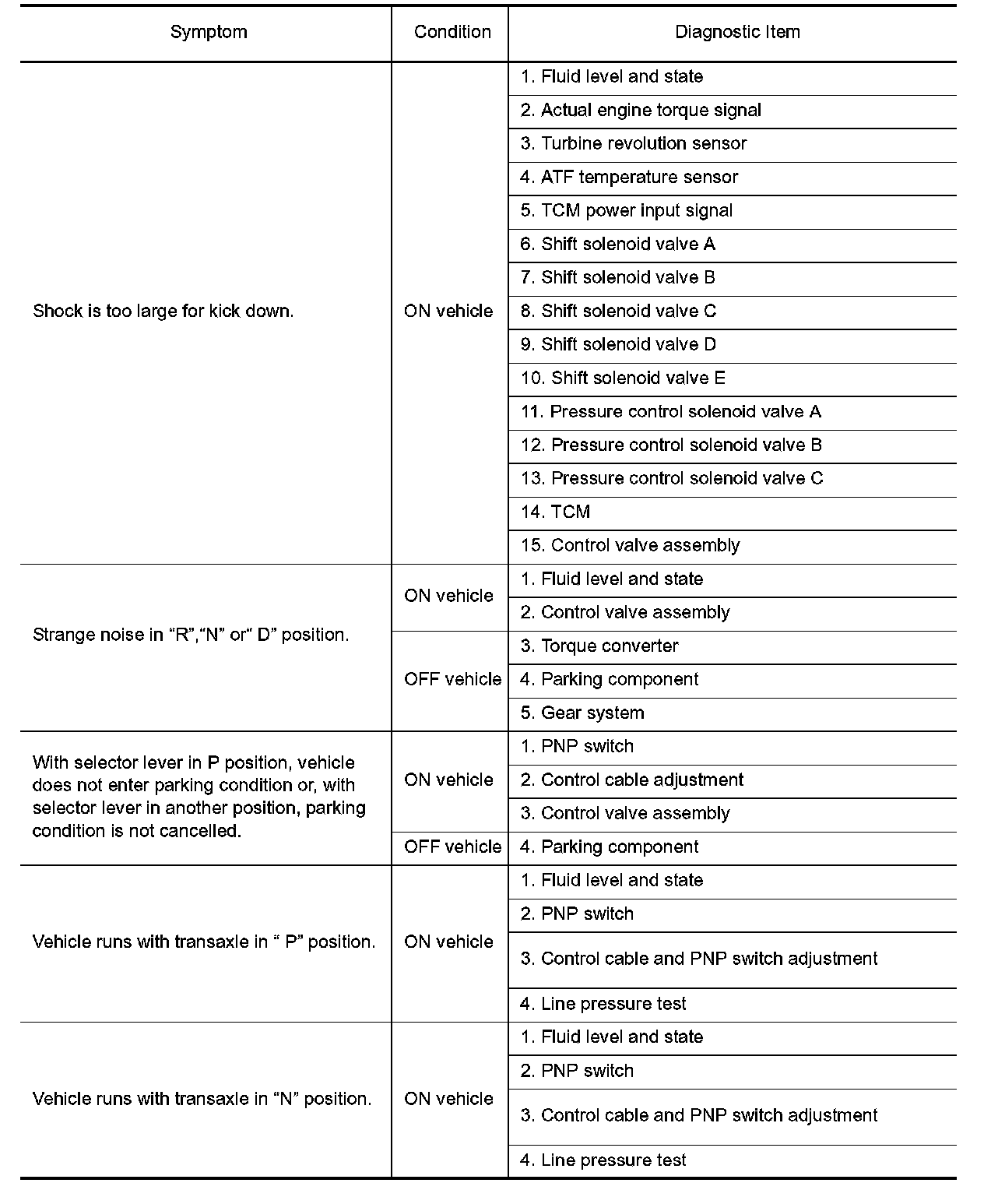

Symptom Chart

Symptom Chart

Numbers are arranged in order of inspection.

Perform inspections starting with number one and work up.

CAUTION: Do not remove or disassemble any RE5F22A model transaxle parts unless specified to do so in AT section.
