System Specifications

SERVICE DATA AND SPECIFICATIONS (SDS)

Standard and Limit





ENGINE COOLANT CAPACITY (APPROXIMATE)
Unit: l (us gal, imp gal)
Coolant capacity (With reservoir tank at MAX level) 8.5 (2 1/4, 1 7/8)

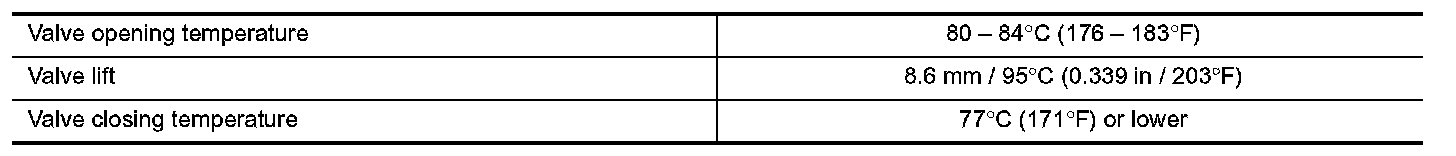

THERMOSTAT
Valve opening temperature 80 - 84°C (176 - 183°F)
Valve lift 8.6 mm / 95°C (0.339 inch / 203°F)
Valve closing temperature 77°C (171°F) or lower

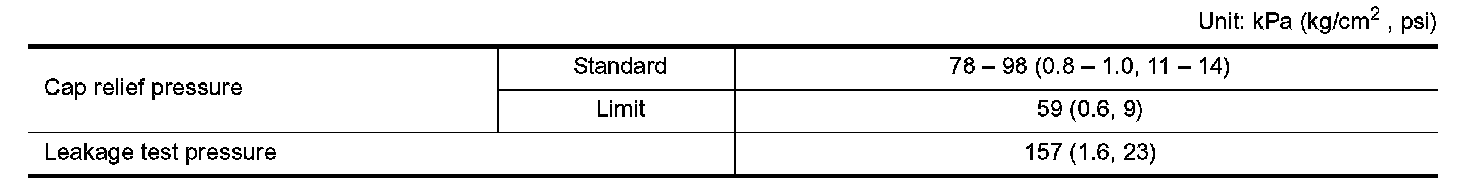

RADIATOR
Unit: kPa (kg/cm2, psi)
Cap relief pressure
Standard 78 - 98 (0.8 - 1.0, 11 - 14)
Limit 59 (0.6, 9)
Leakage test pressure 157 (1.6, 23)
