General Specifications

GENERAL SPECIFICATIONS

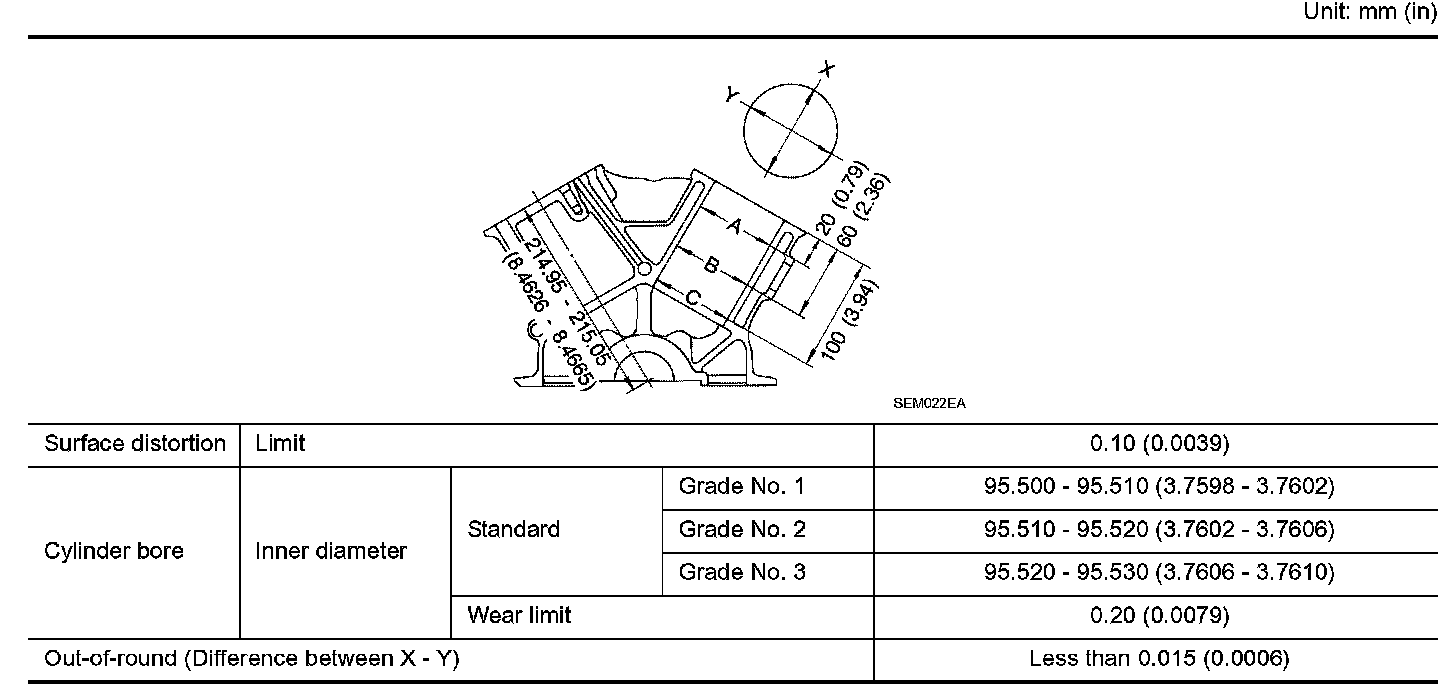

CYLINDER BLOCK

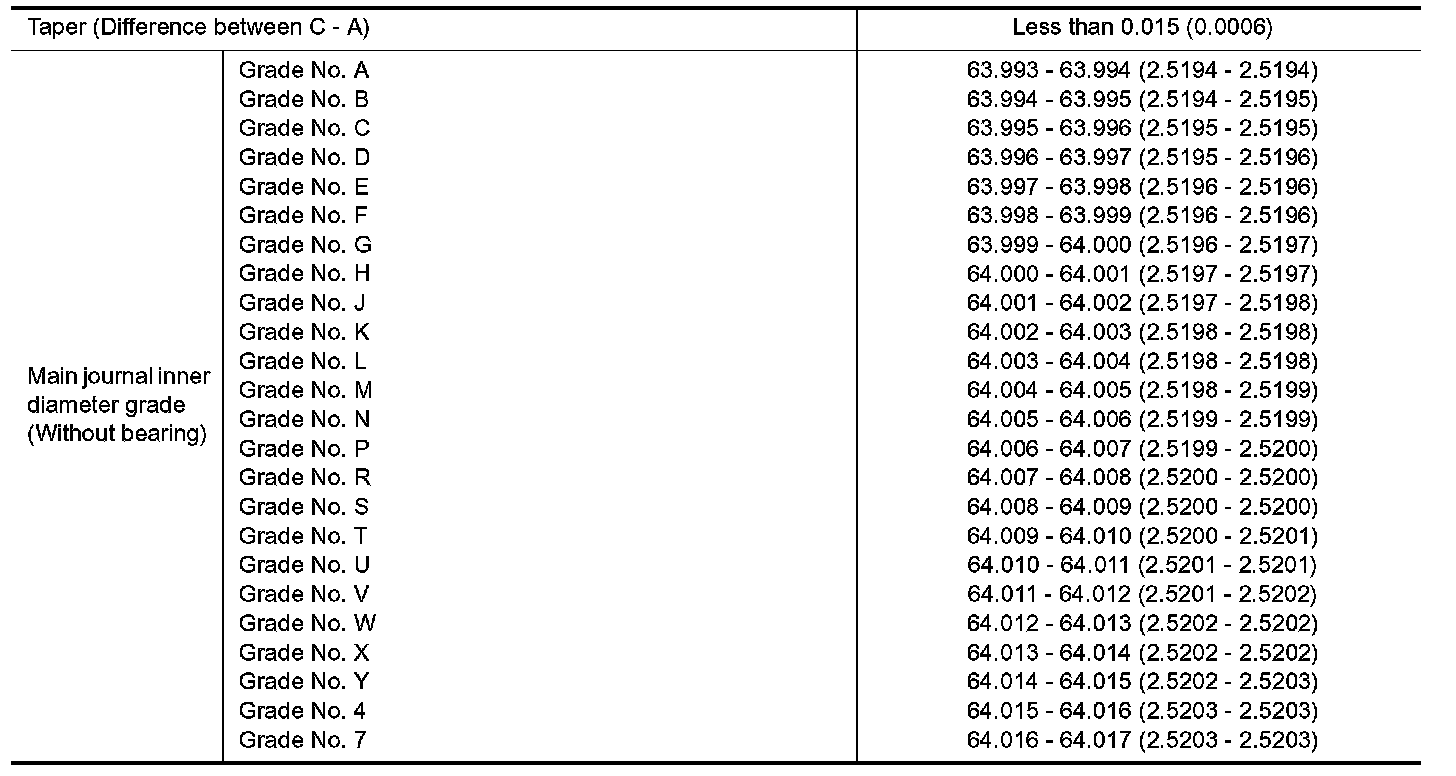

Main journal inner diameter grade (Without bearing)





PISTON, PISTON RING AND PISTON PIN
Available Piston





Piston Ring





Piston Pin

* No service parts available.





CONNECTING ROD





CRANKSHAFT

* Total indicator reading

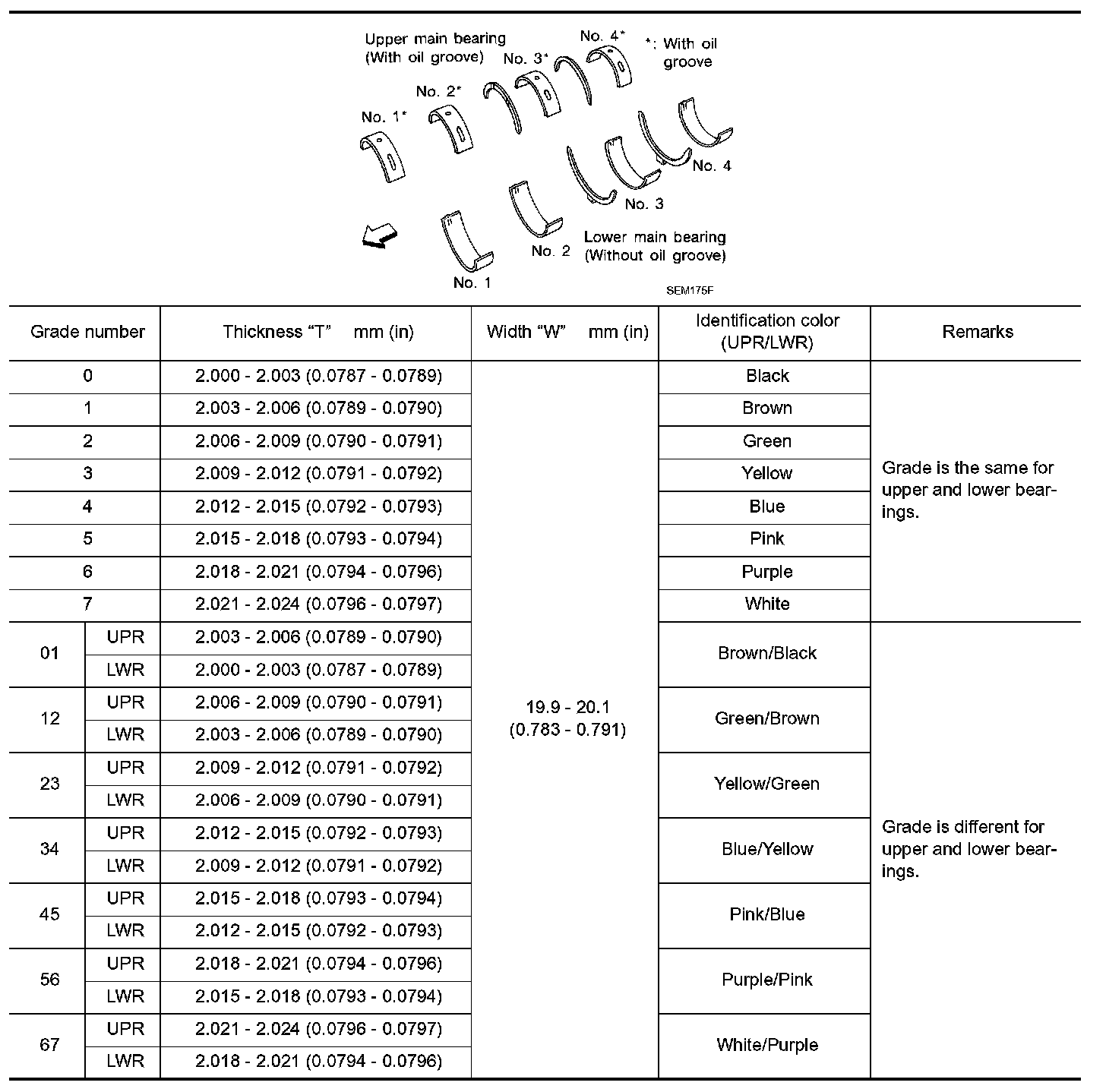

AVAILABLE MAIN BEARING

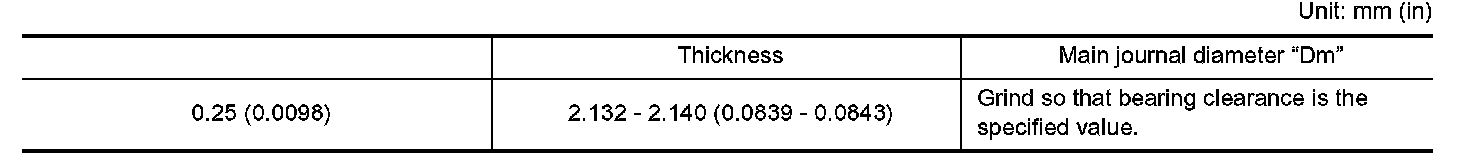

Undersize

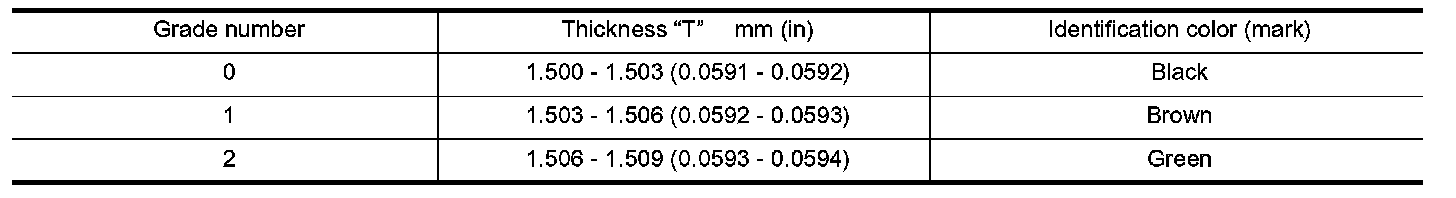

CONNECTING ROD BEARING

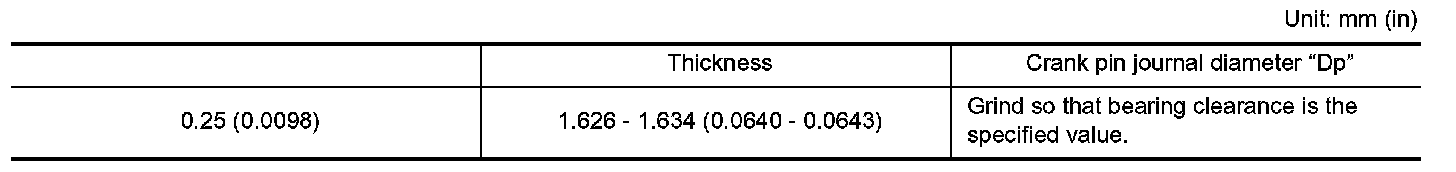

Undersize

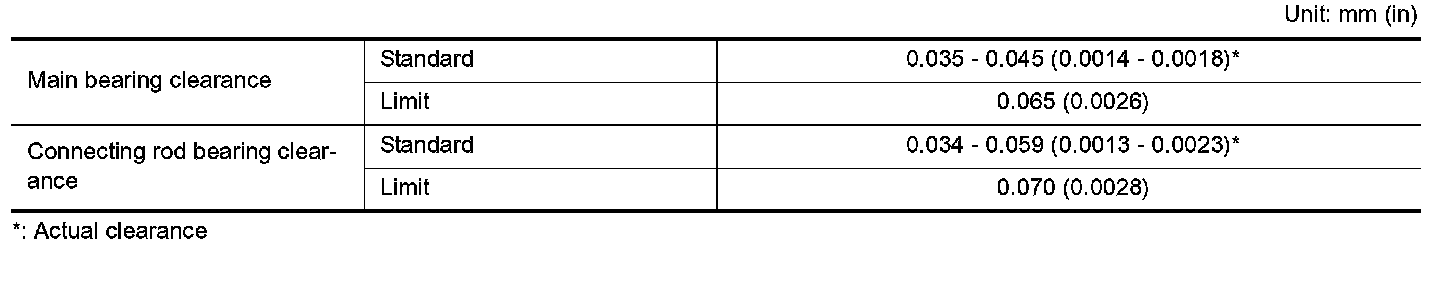

BEARING CLEARANCE

Bearing Cap Bolts
Step 1 32 - 38 Nm (3.3 - 3.9 kg-m, 24 - 28 ft. lbs.)
Step 2 90° - 95° degrees clockwise

Crankshaft Pulley
Step 1 39 - 49 Nm (4.0 - 5.0 kg-m, 29 - 36 ft. lbs.)
Step 2 60° - 65° degrees clockwise
