Timing Cover

TORQUE SPECIFICATIONS

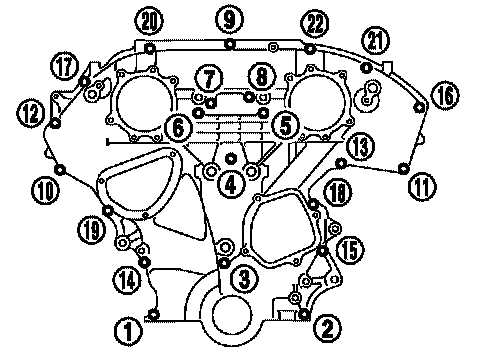

Front Timing Chain Case Bolts
1, 2 25.5 - 31.4 Nm (2.6 - 3.2 kg-m, 18.8 - 23.1 ft. lbs.)
3-22 11.8 - 13.7 Nm (1.2 - 1.4 kg-m, 8.7 - 10.1 ft. lbs.)
