Shift Schedule

Shift Schedule

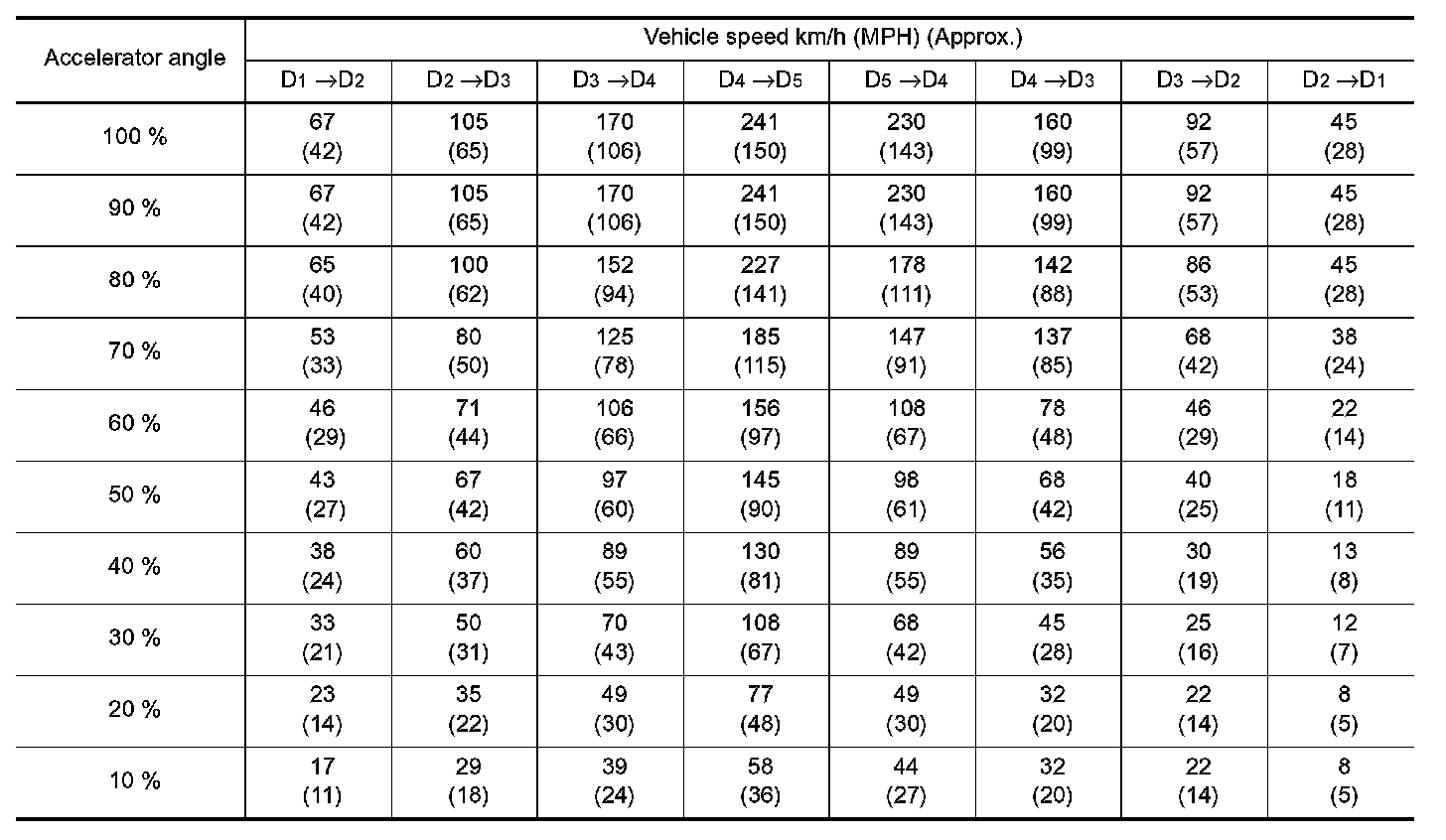

VEHICLE SPEED WHEN SHIFTING GEARS

VEHICLE SPEED WHEN PERFORMING AND RELEASING COMPLETE LOCK-UP





- Lock-up vehicle speed indicates the speed in D position.
- Perform lock-up inspection after warning up engine.
- Lock-up vehicle speed may vary depending on the driving conditions and circumstances.

VEHICLE SPEED WHEN PERFORMING AND RELEASING SLIP LOCK-UP





- Slip lock-up vehicle speed indicates the speed in D position.
- Perform slip lock-up inspection after warning up engine.
- Slip lock-up vehicle speed may vary depending on the driving conditions and circumstances.
