Coolant Temperature Sensor/Switch (For Computer): Testing and Inspection

Component Inspection

ENGINE COOLANT TEMPERATURE SENSOR

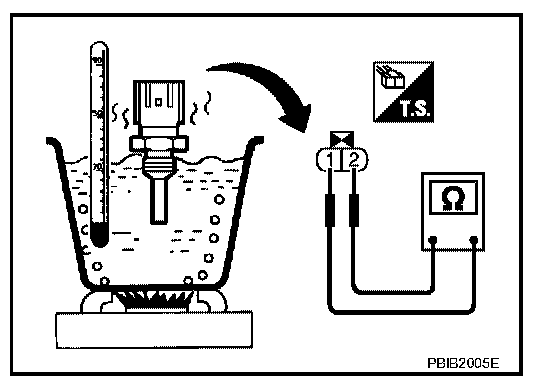

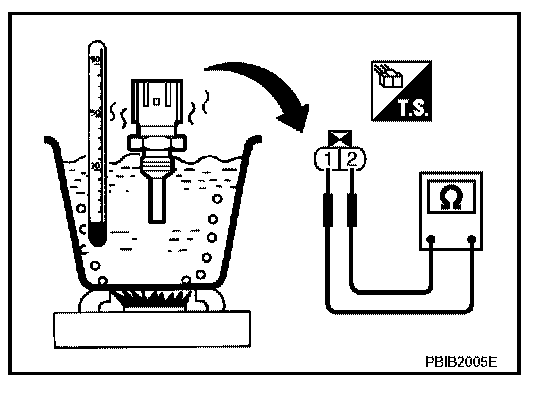

1. Check resistance between engine coolant temperature sensor terminals 1 and 2 as shown in the figure.
2. If NG, replace engine coolant temperature sensor.

Thermostat Function

Component Inspection

ENGINE COOLANT TEMPERATURE SENSOR

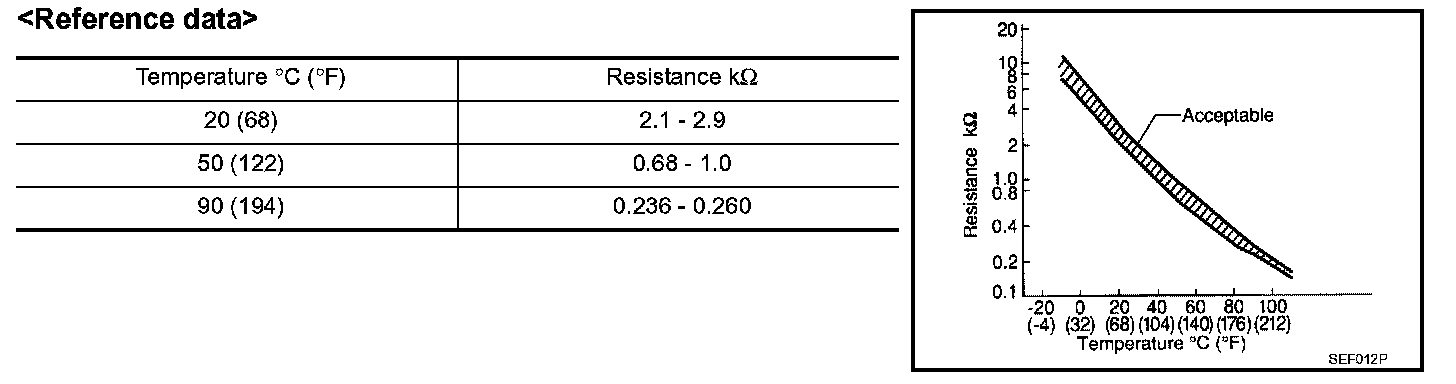

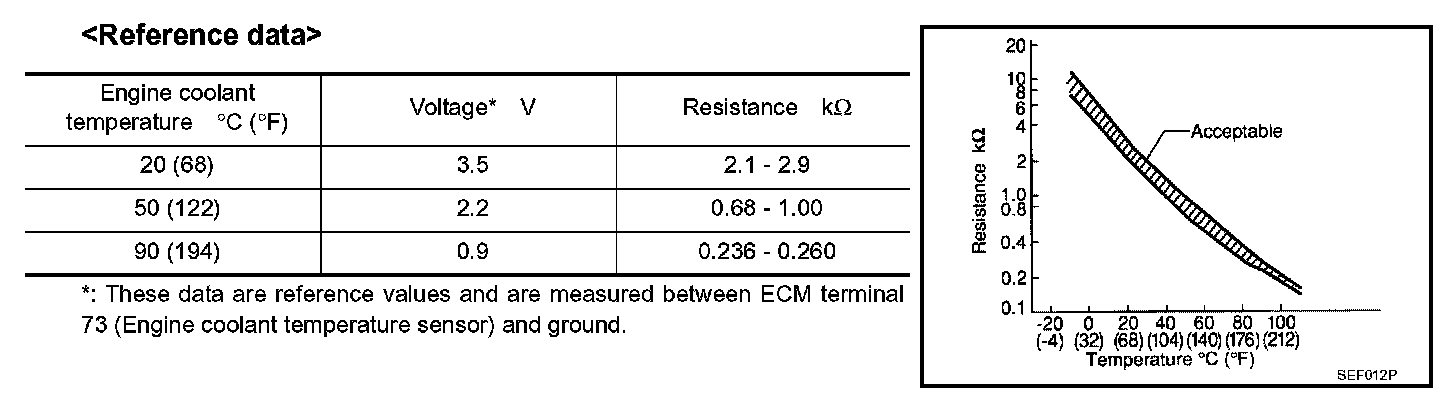

Check resistance as shown in the figure.
If NG, replace engine coolant temperature sensor.
