Ignition Timing: Testing and Inspection
IGNITION TIMINGAny of following two methods may be used.
Method A
1. Slide the harness protector of ignition coil No.1 to clear the wires.

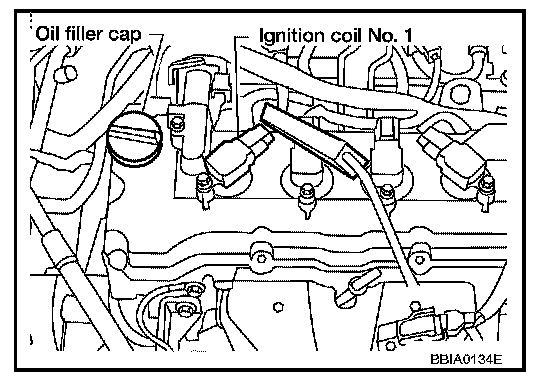

2. Attach timing light to the ignition coil No.1 wires as shown in the figure.

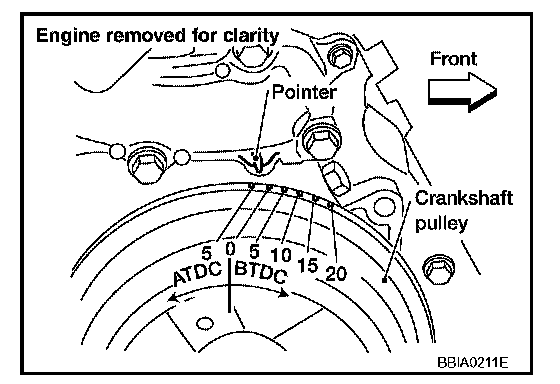

3. Check ignition timing.
Method B
1. Remove ignition coil No.1.

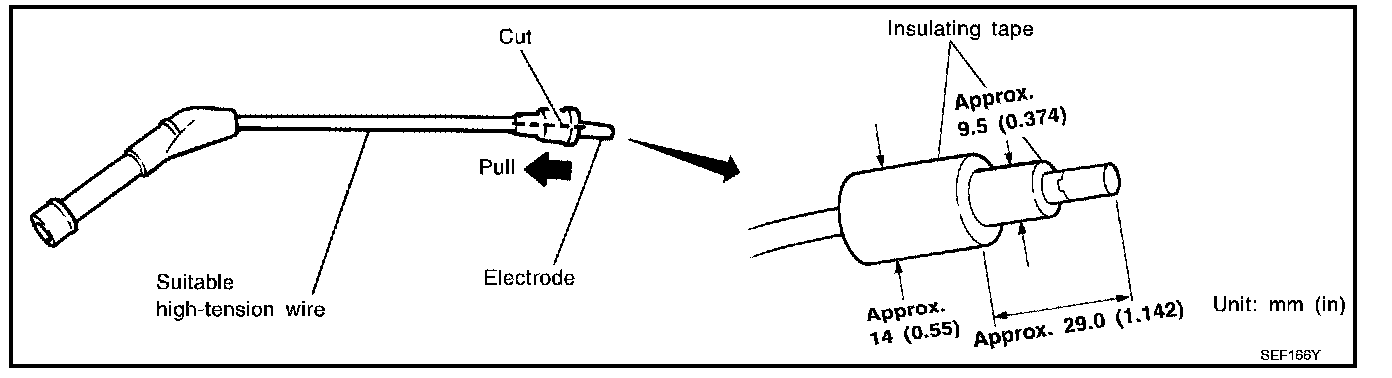

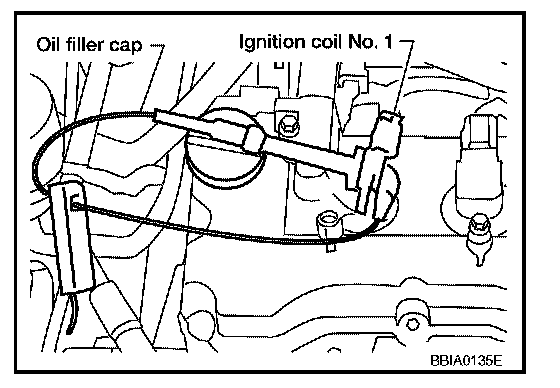

2. Connect ignition coil No.1 and spark plug No.1 with suitable high-tension wire as shown, and attach timing light clamp to this wire.

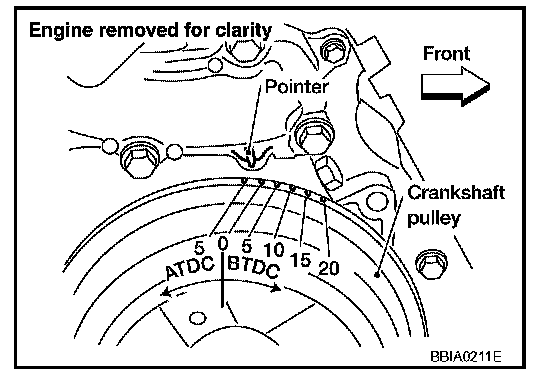

3. Check ignition timing.
