Camber
CAMBER NOTE: Camber is preset at factory and cannot be adjusted.
Camber: Refer to Rear wheel Alignment (Unladen*).
1.

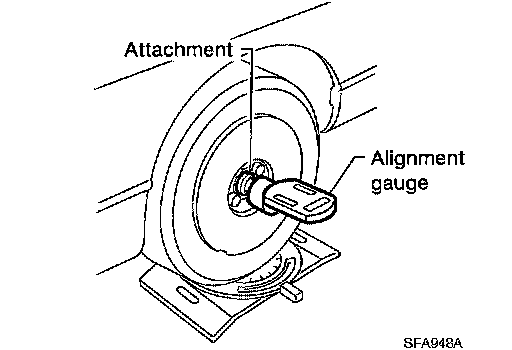

Measure camber of both right-hand and left-hand
wheels with a suitable alignment gauge.
2.
If the camber is not within specification, inspect and replace any damaged or worn rear suspension parts.
