Input-Output Signal Reference Values
DIFFERENTIAL LOCK CONTROL UNIT INSPECTION TABLE Part 1:
Part 2:

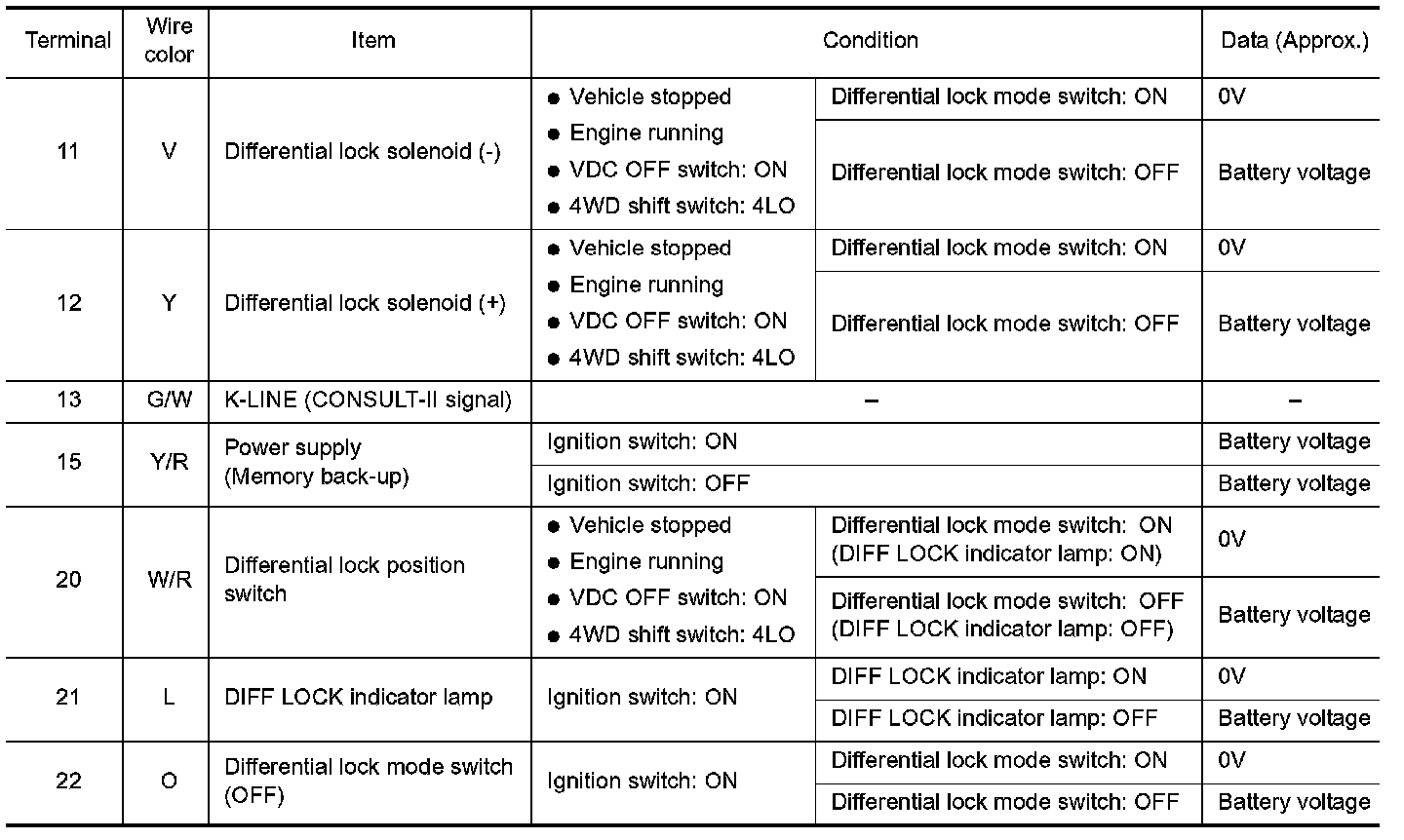

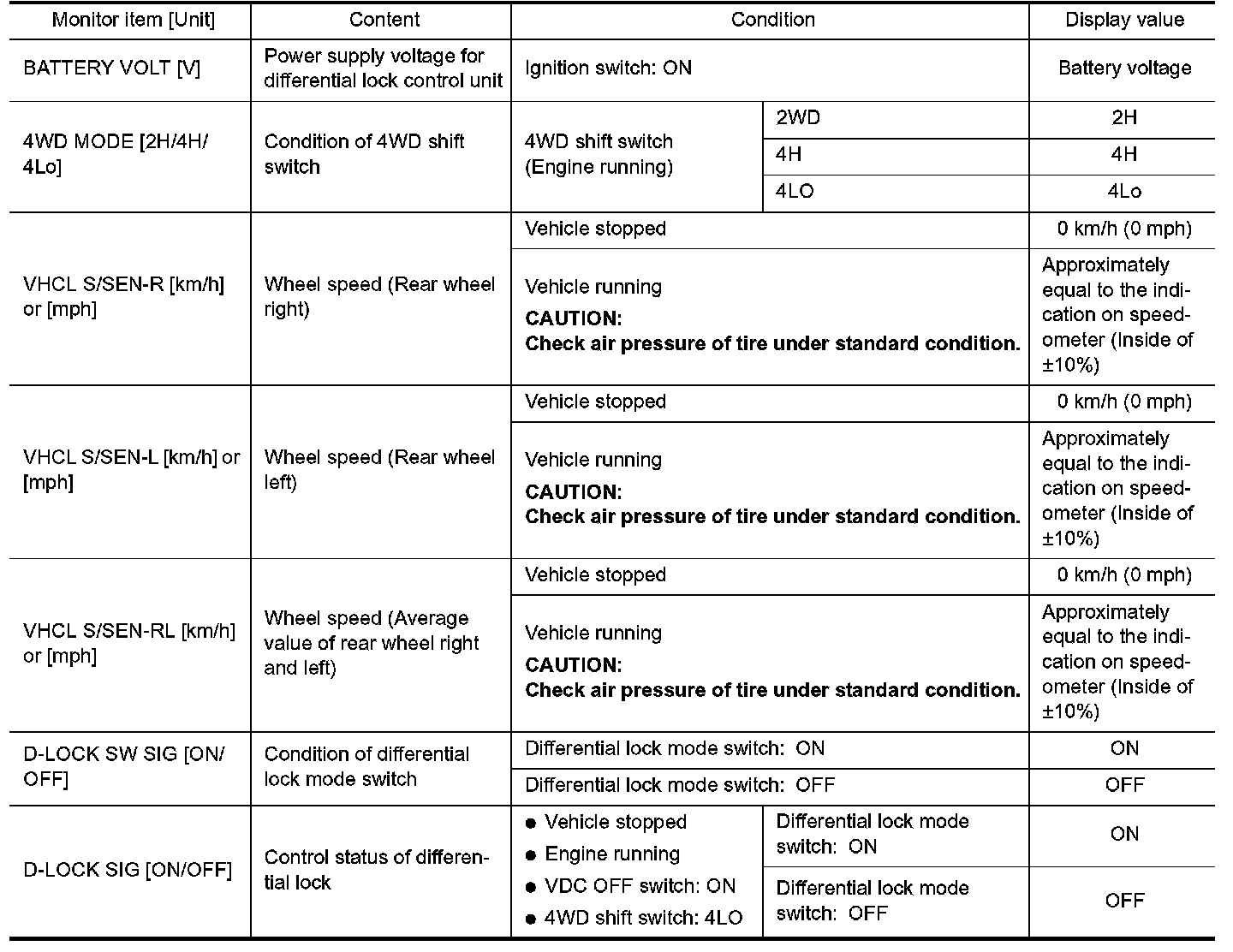

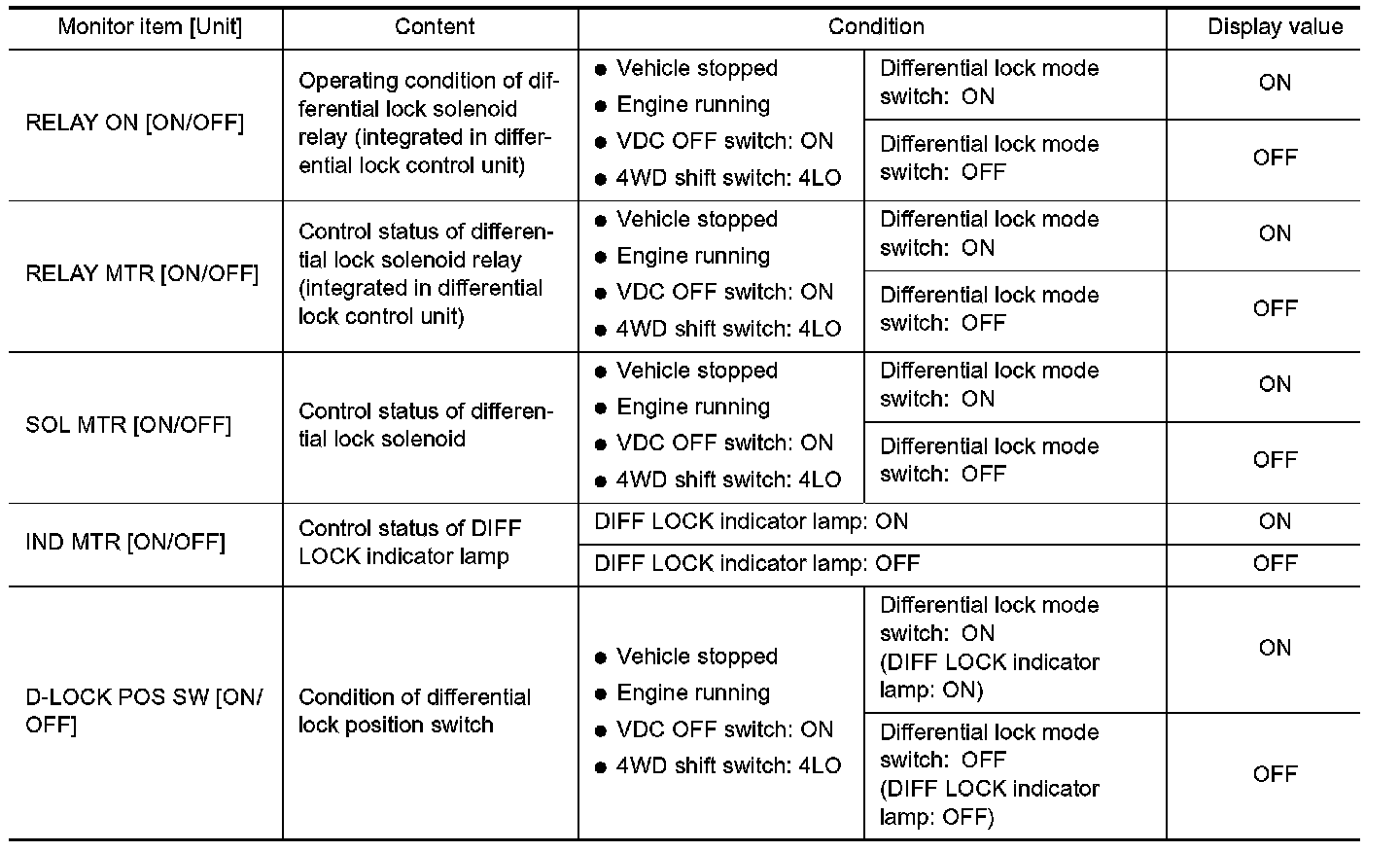

Specifications with CONSULT-II Specifications Between Differential Lock Control Unit Terminals DIFFERENTIAL LOCK CONTROL UNIT TERMINAL CONNECTOR LAYOUT Part 1:
Part 2:
Part 3:
CAUTION: When using a circuit tester to measure voltage for inspection, be sure not to extend forcibly any connector terminals.
