Electronic Brake Control Module: Service and Repair

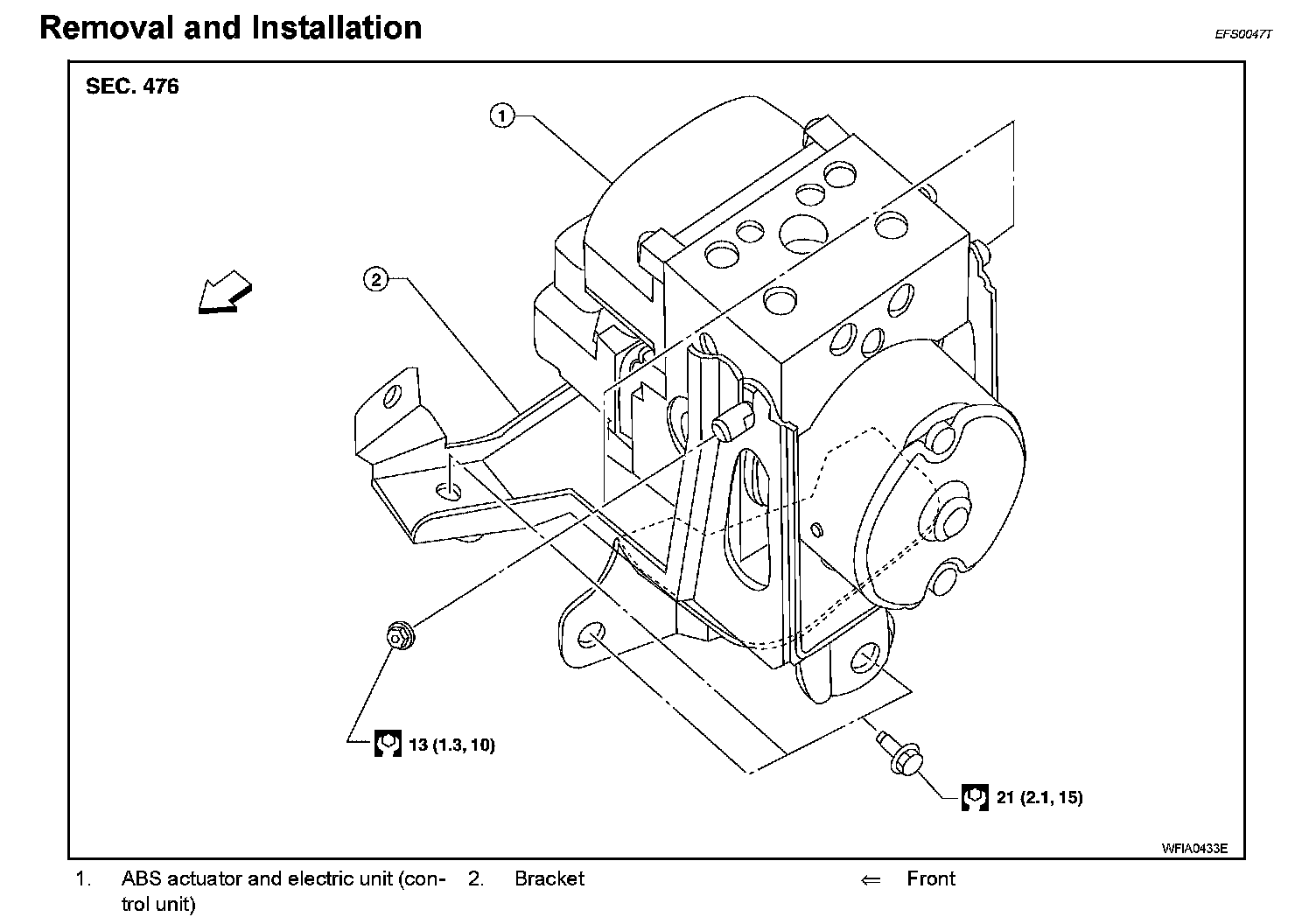

ACTUATOR AND ELECTRIC UNIT (ASSEMBLY)





REMOVAL
1. Disconnect battery negative terminal.
2. Remove windshield wiper motor and linkage assembly.
3. Drain brake fluid.
4. Disconnect harness connectors from ABS actuator and electric unit (control unit).
5. Disconnect brake pipes.

NOTE: Make note of pipe mounting locations.

6. Remove bolts for bracket then remove ABS actuator and electric unit (control unit) and bracket assembly from vehicle.
7. Remove nuts for ABS actuator and electric unit (control unit) then separate from bracket.

INSTALLATION

CAUTION: After installation of ABS actuator and electric unit (control unit), refill brake fluid. Then bleed air from system.

1. Assemble ABS actuator and electric unit (control unit) and bracket assembly, then position assembly in vehicle.
2. Install and tighten bracket bolts,
3. Install brake pipes to ABS actuator and electric unit (control unit), then tighten flare nuts.
4. Connect ABS actuator and electric unit (control unit) harness connectors.
5. Install windshield wiper motor and linkage assembly.
6. Reconnect battery negative terminal.
