Scan Tool Testing and Procedures

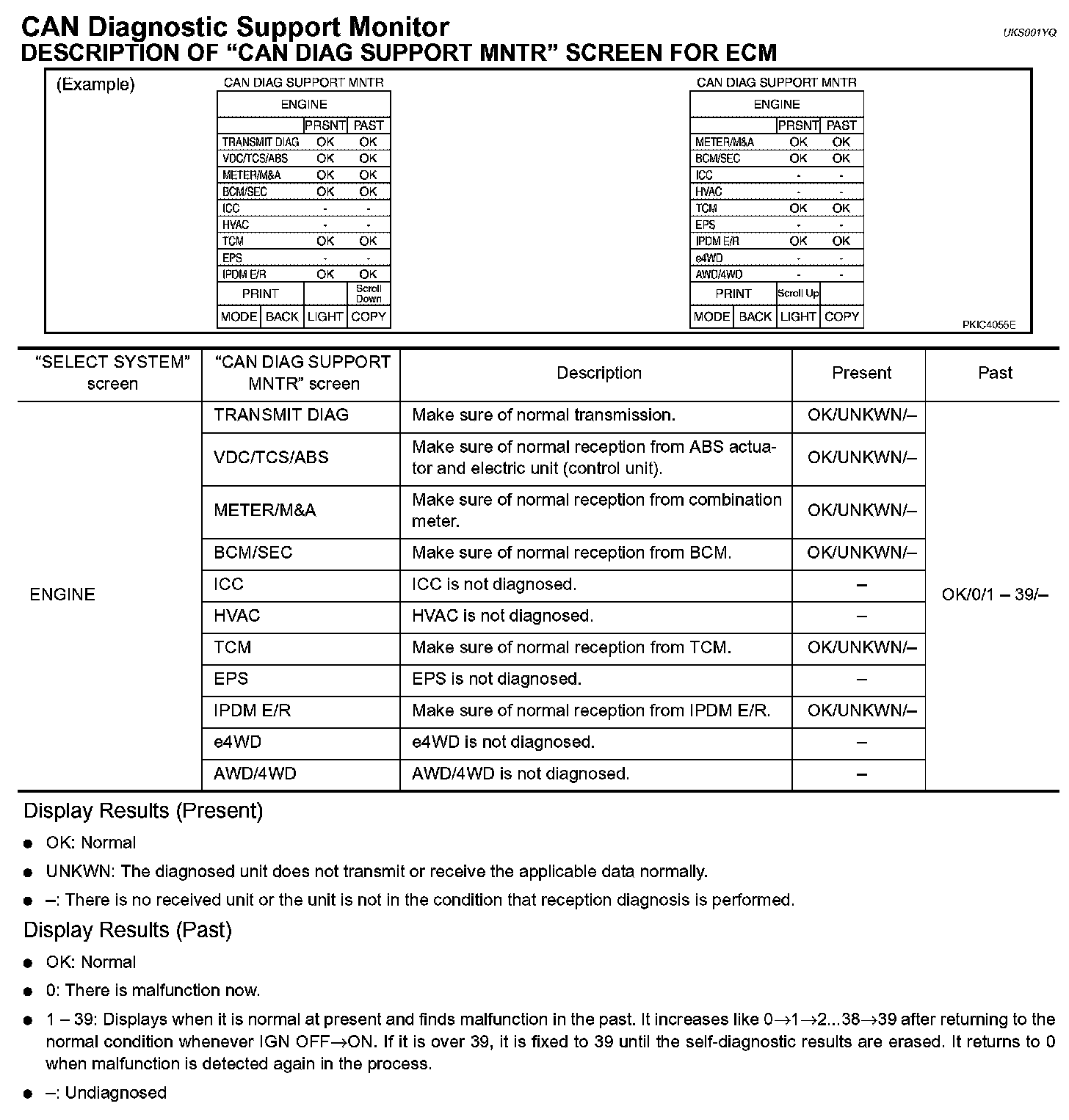

CAN Diagnostic Support Monitor




DESCRIPTION OF CAN DIAG SUPPORT MNTR SCREEN FOR ECM

DESCRIPTION OF CAN DIAG SUPPORT MNTR SCREEN FOR TCM

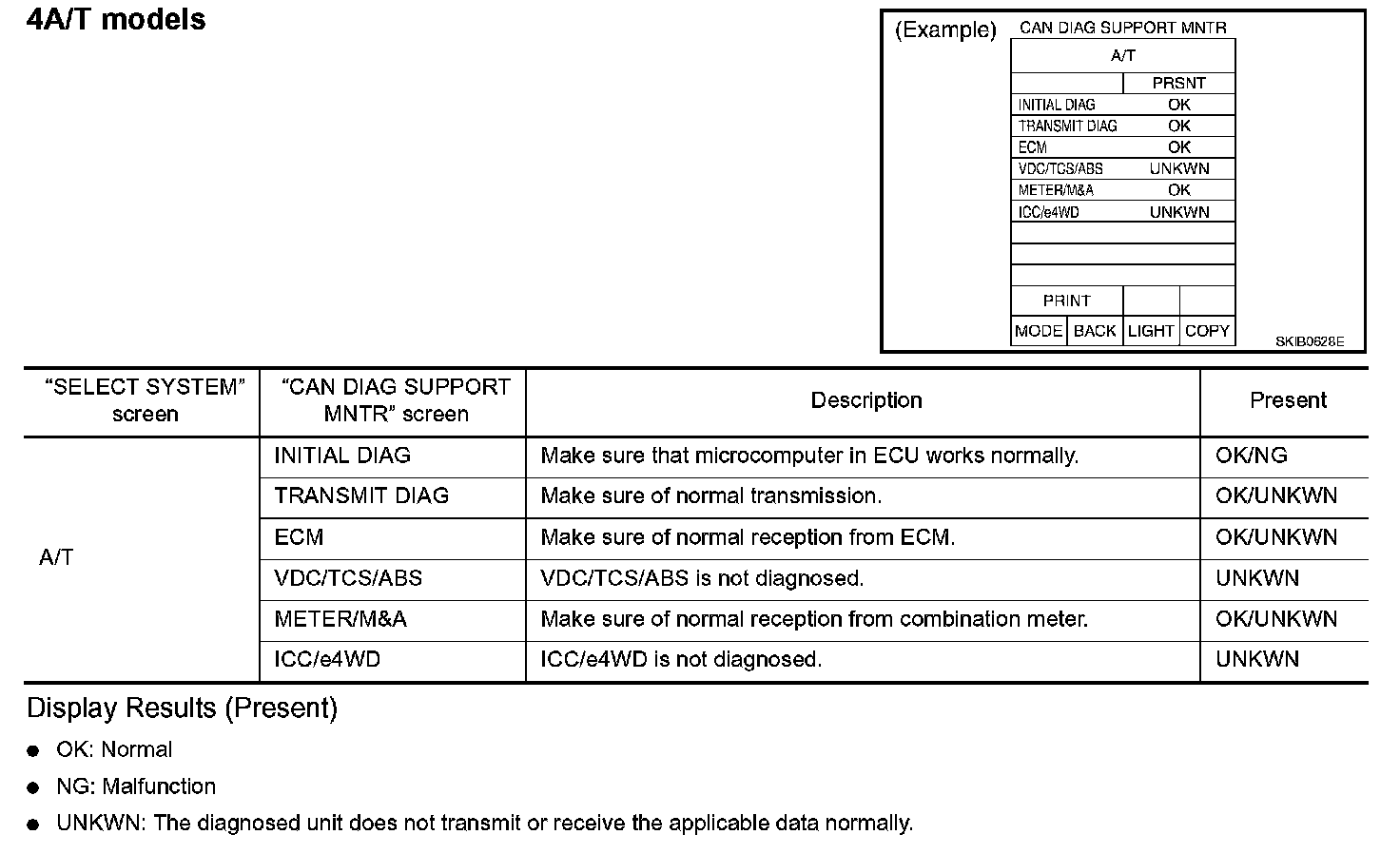

4A/T models

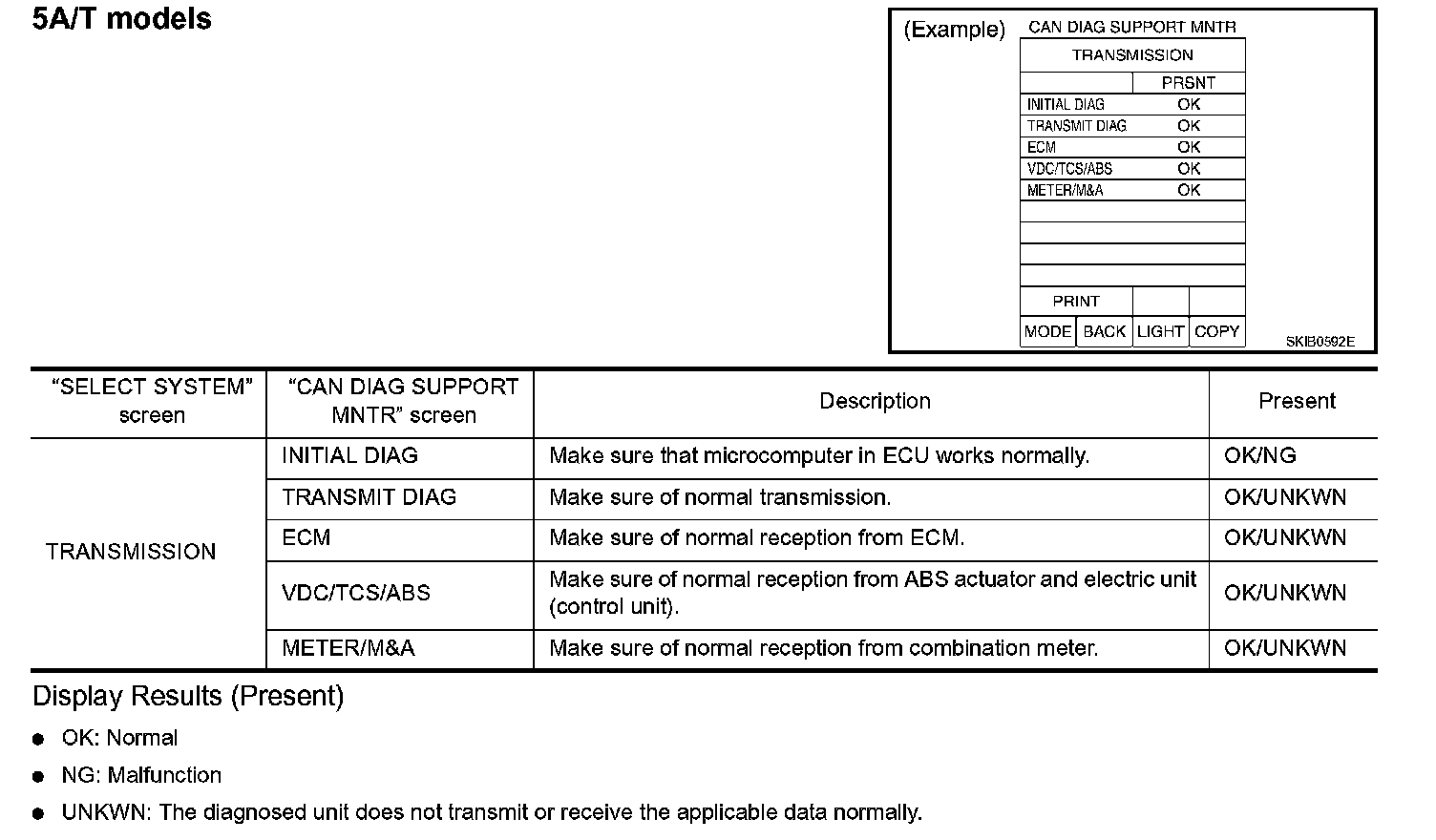

5A/T models

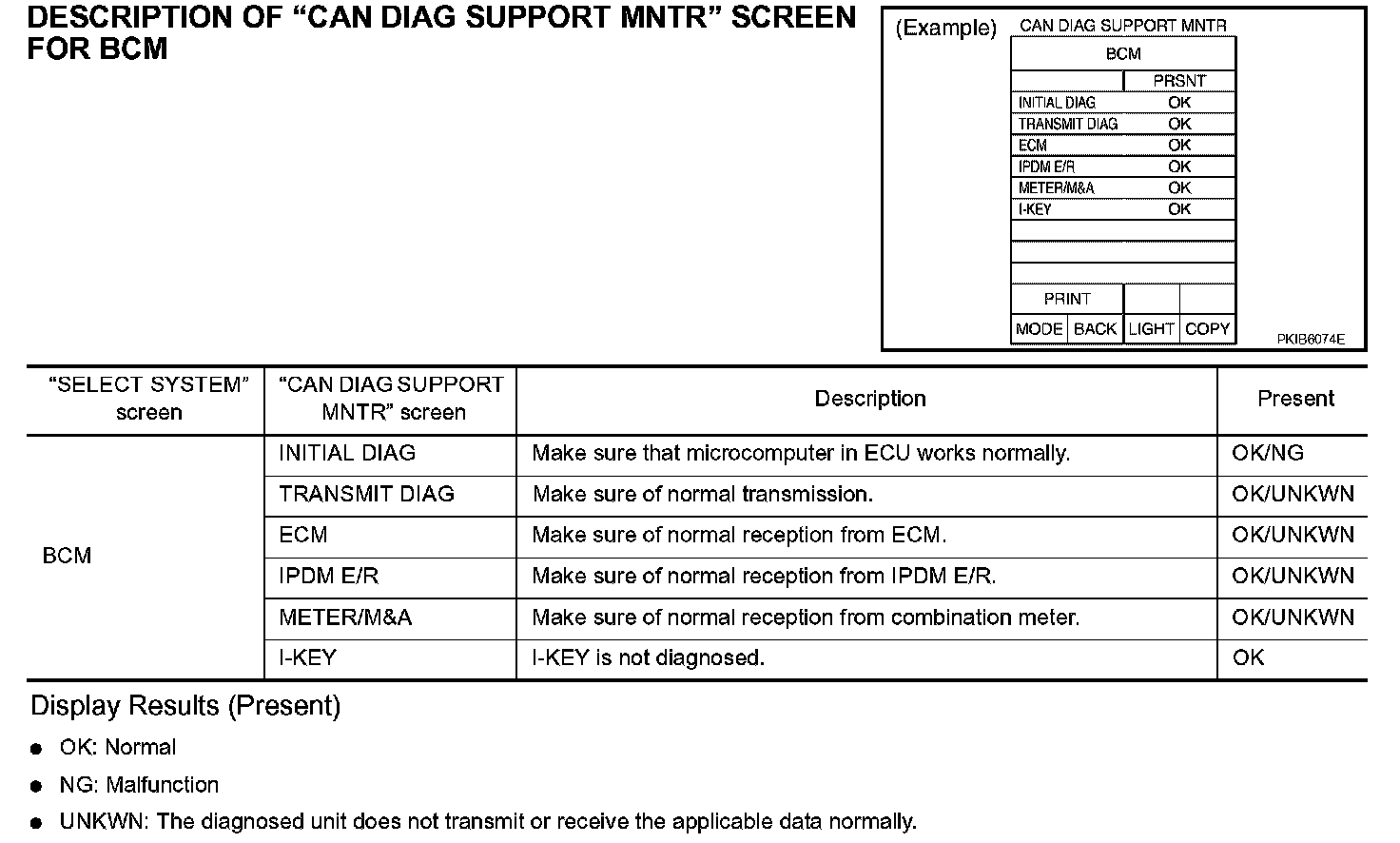

DESCRIPTION OF CAN DIAG SUPPORT MNTR SCREEN FOR BCM

DESCRIPTION OF CAN DIAG SUPPORT MNTR SCREEN FOR ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)




ABS models




TCS models

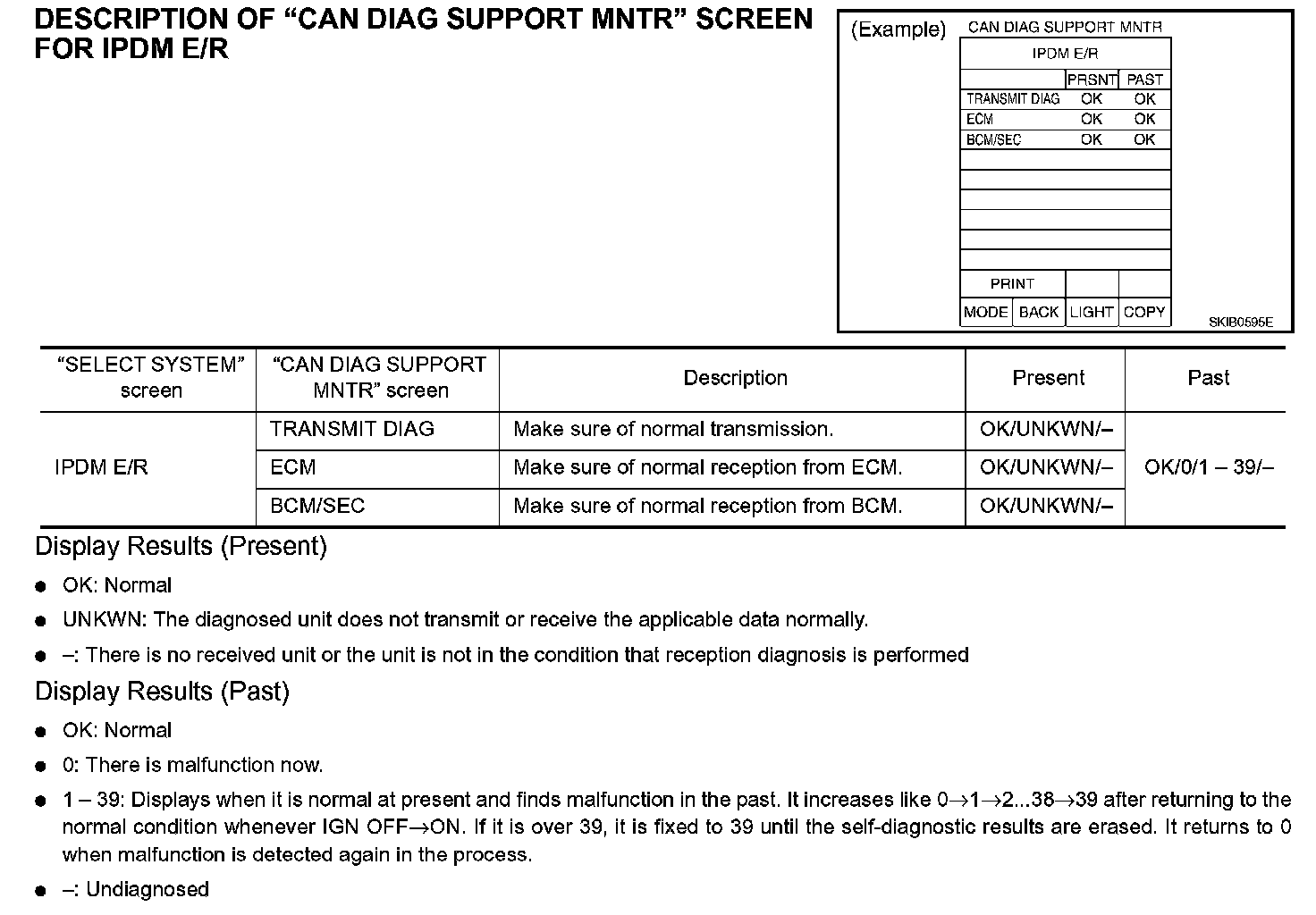

DESCRIPTION OF CAN DIAG SUPPORT MNTR SCREEN FOR IPDM E/R

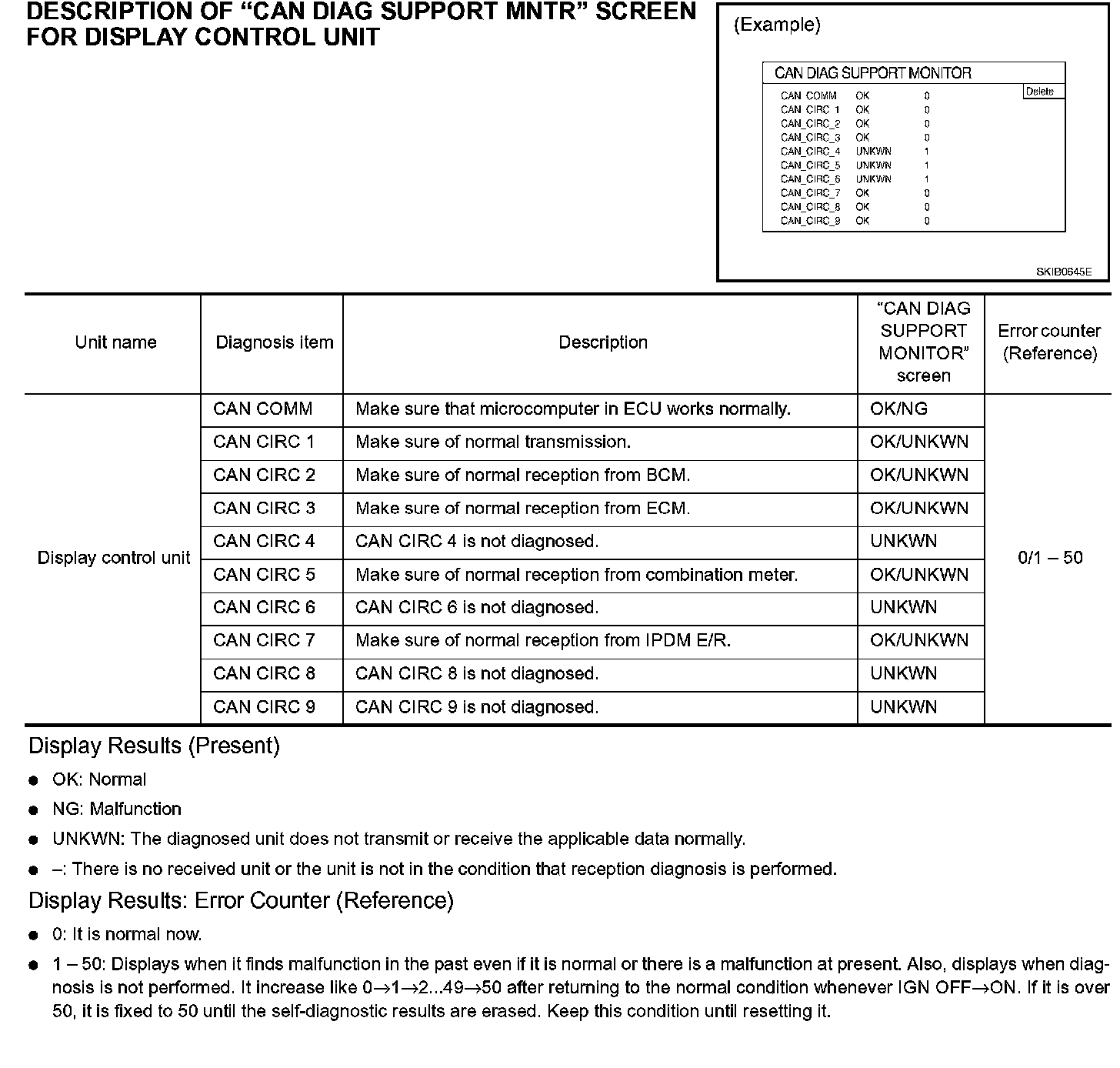

DESCRIPTION OF CAN DIAG SUPPORT MNTR SCREEN FOR DISPLAY CONTROL UNIT
