Non-Trouble Code Procedures

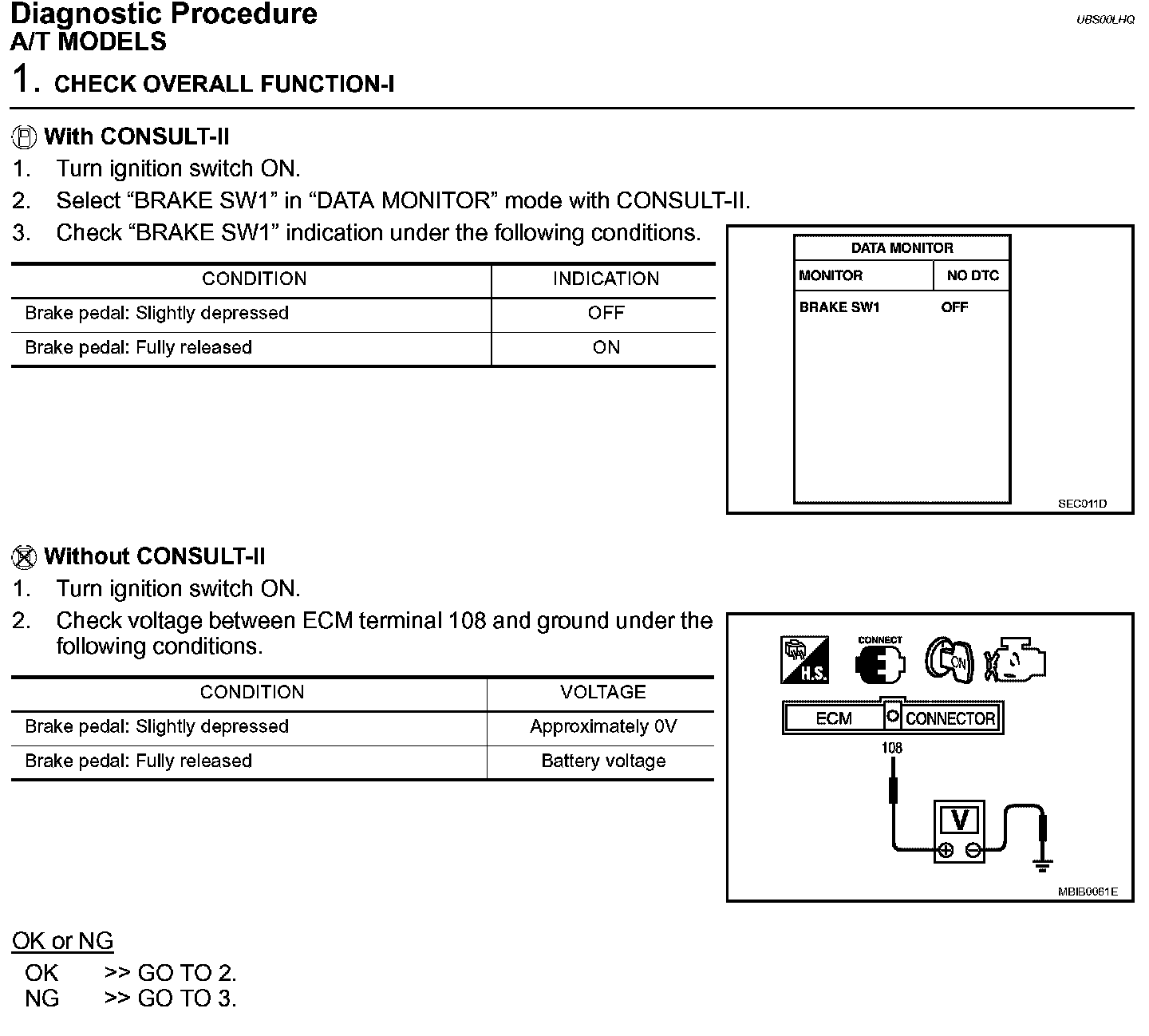

Diagnostic Procedure (A/T Models) (Step 1):

Diagnostic Procedure (A/T Models) (Step 2):

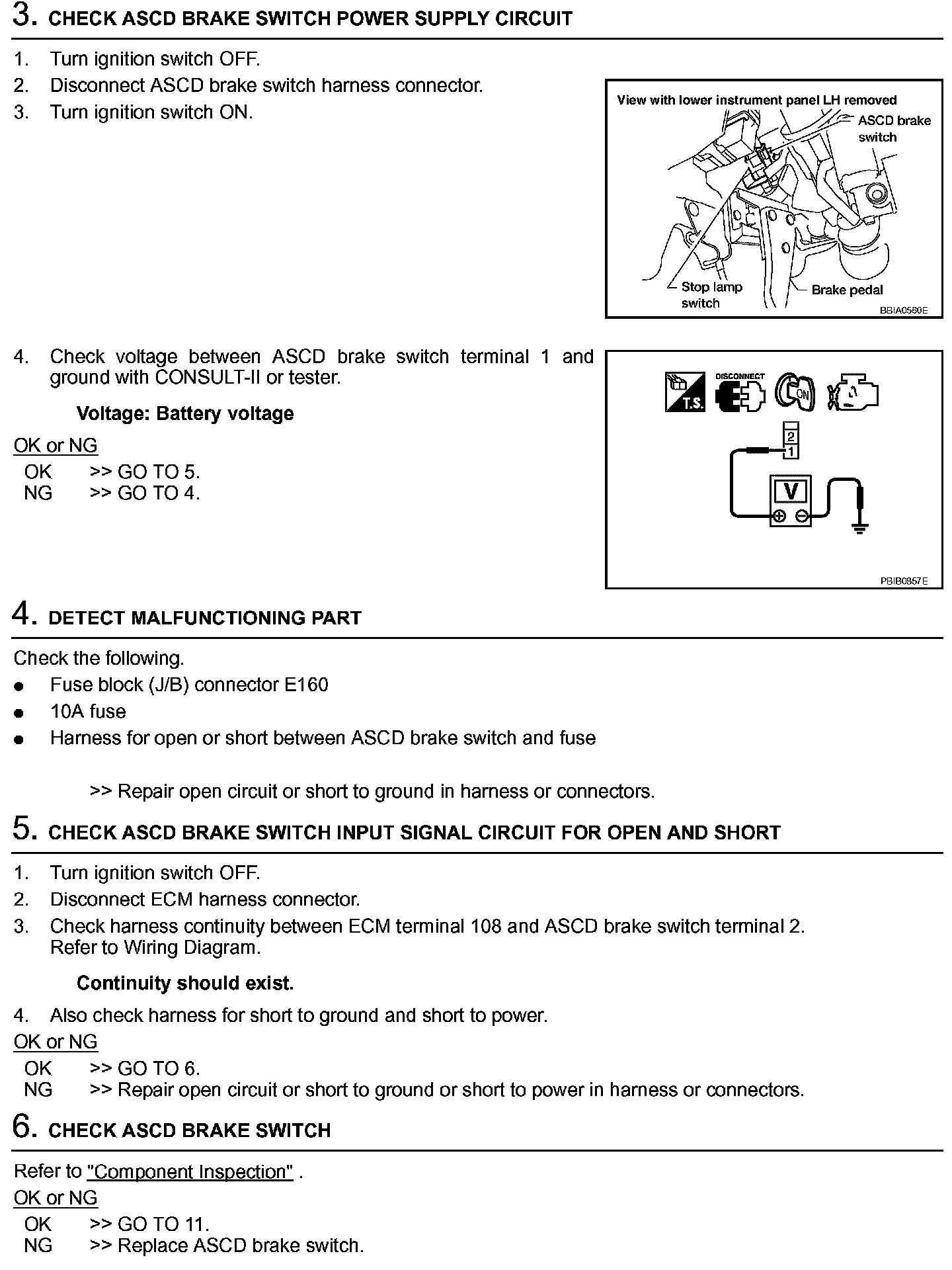

Diagnostic Procedure (A/T Models) (Steps 3 - 6):

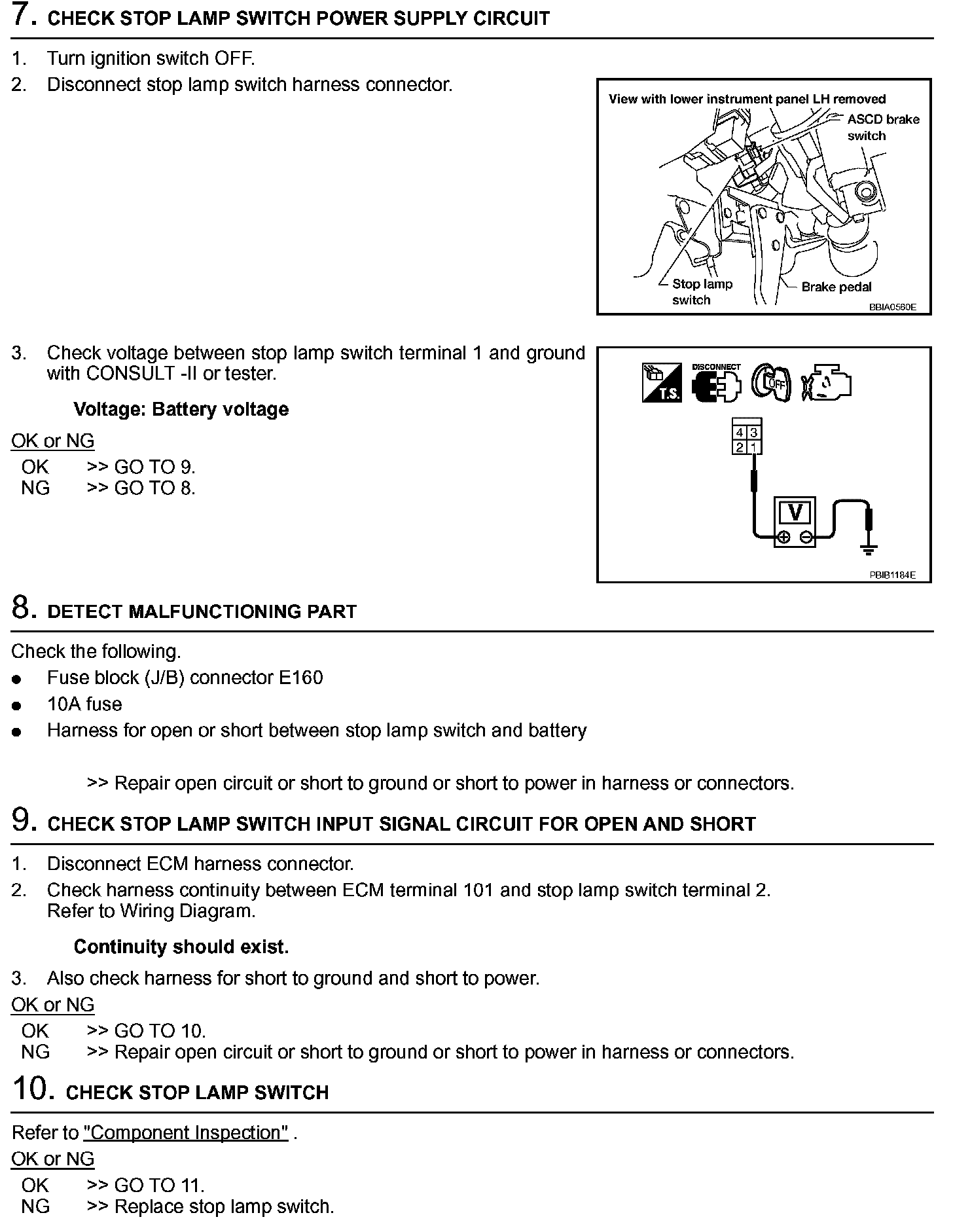

Diagnostic Procedure (A/T Models) (Steps 7 - 10):

Diagnostic Procedure (A/T Models) (Step 11):

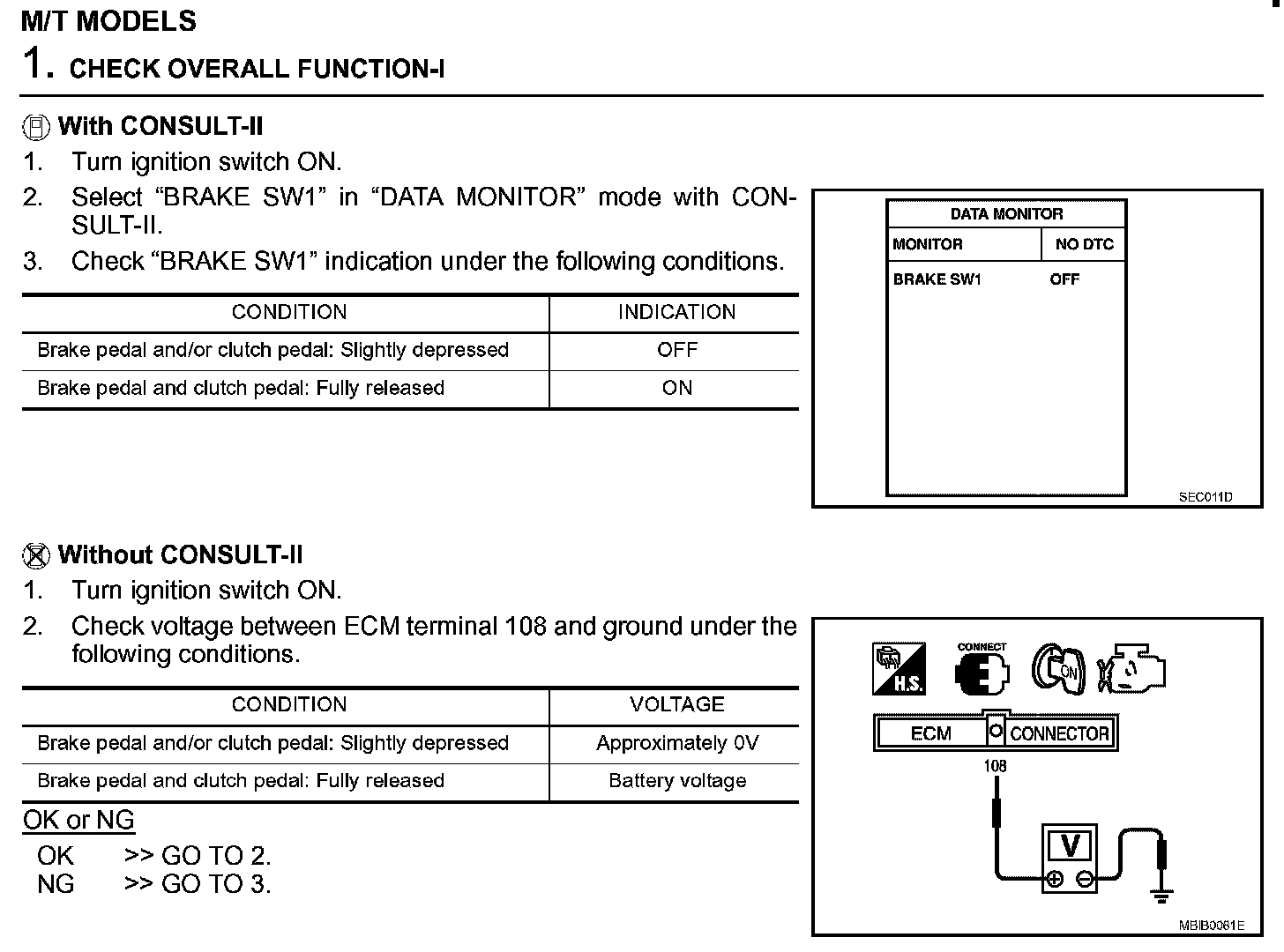

Diagnostic Procedure (M/T Models) (Step 1):

Diagnostic Procedure (M/T Models) (Steps 2 - 3):

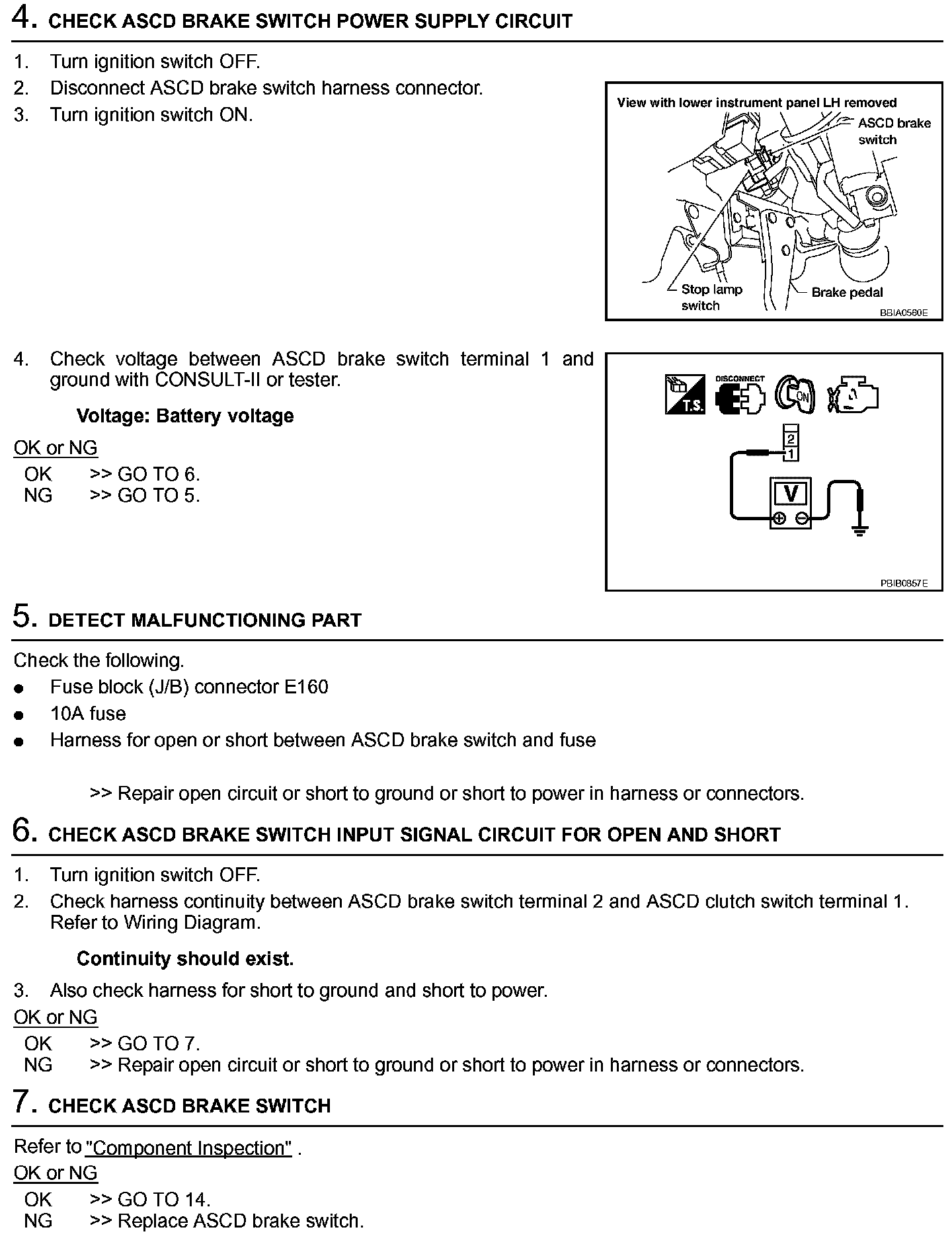

Diagnostic Procedure (M/T Models) (Steps 4 - 7):

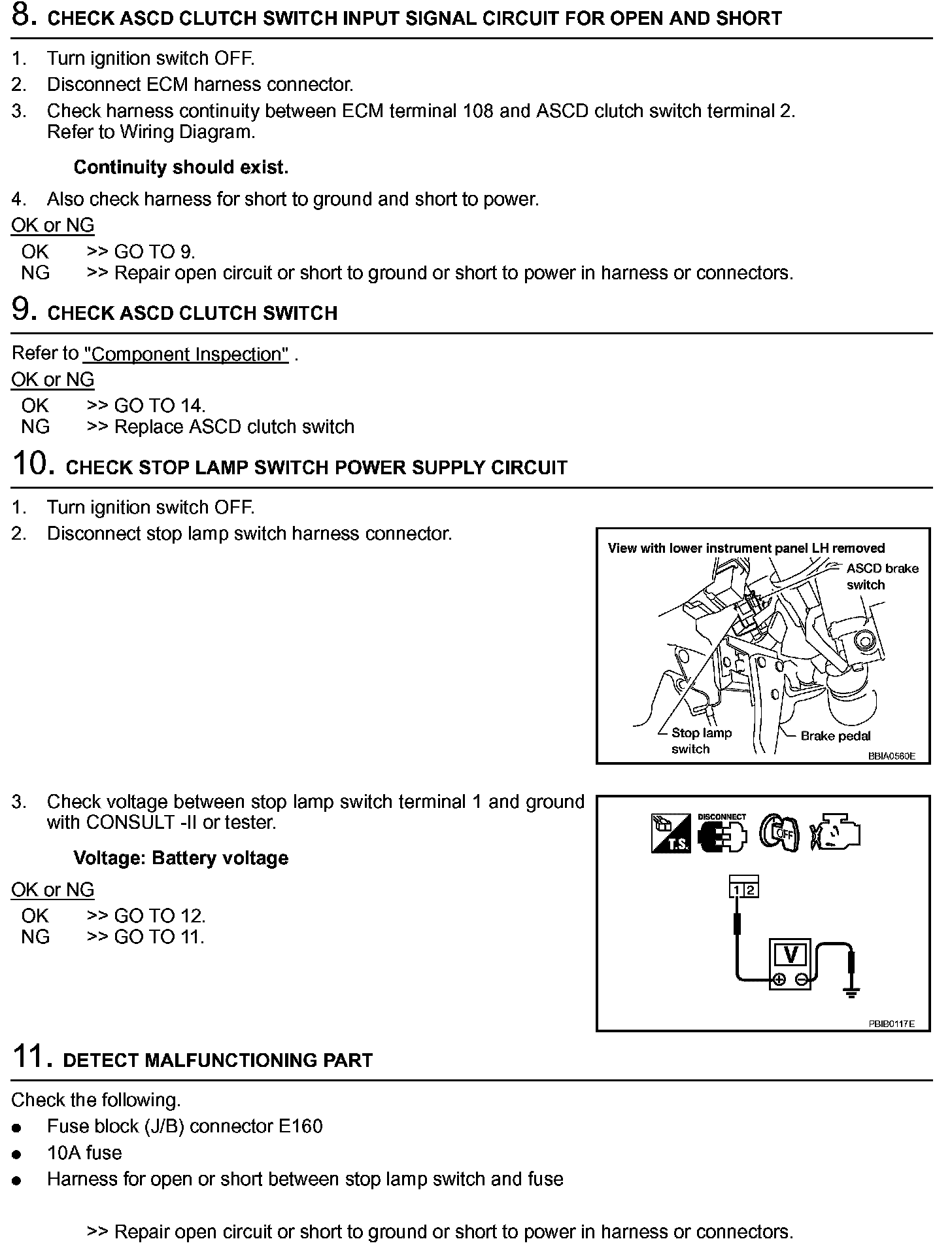

Diagnostic Procedure (M/T Models) (Steps 8 - 11):

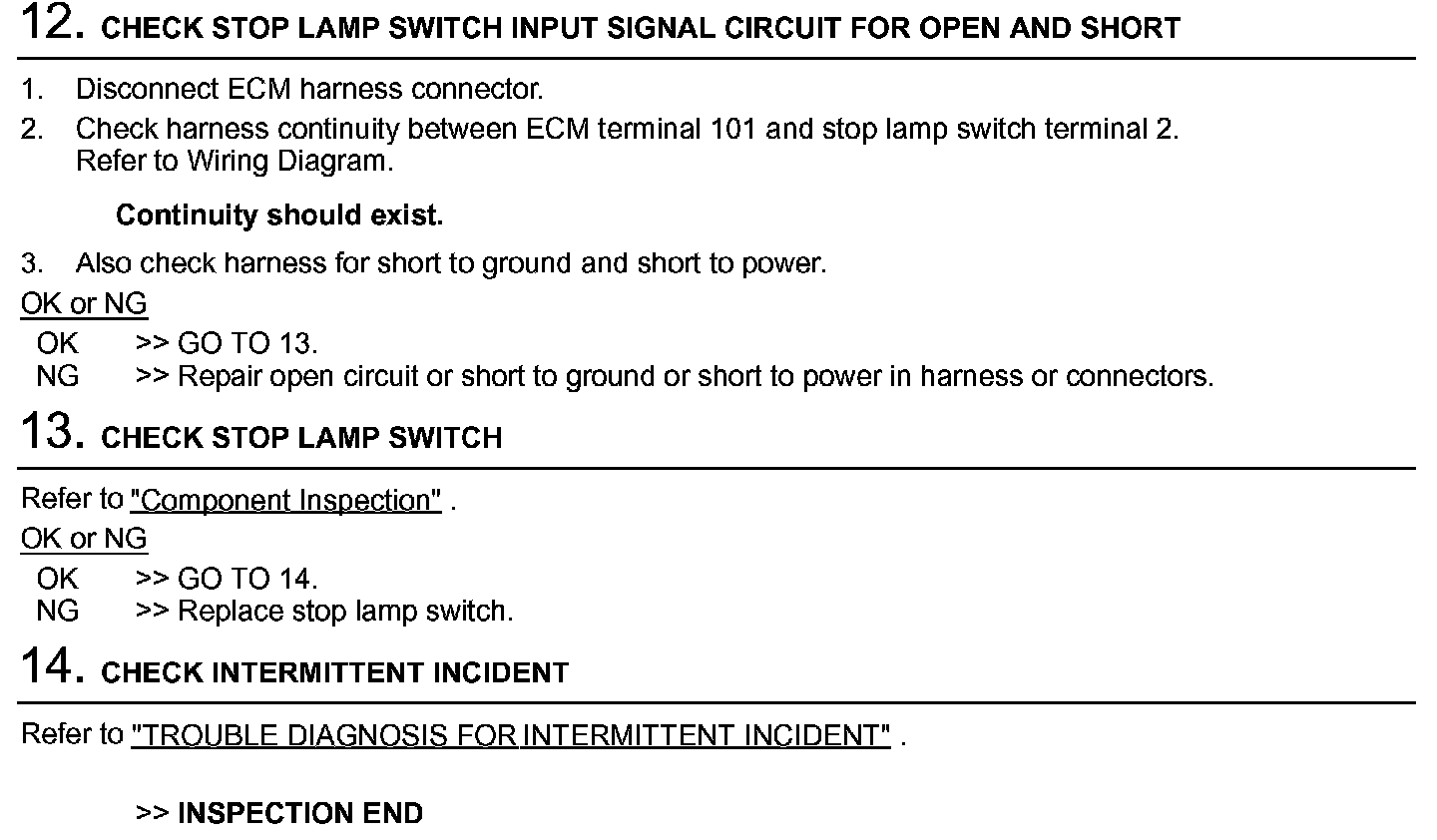

Diagnostic Procedure (M/T Models) (Steps 12 - 14):
