System Specifications

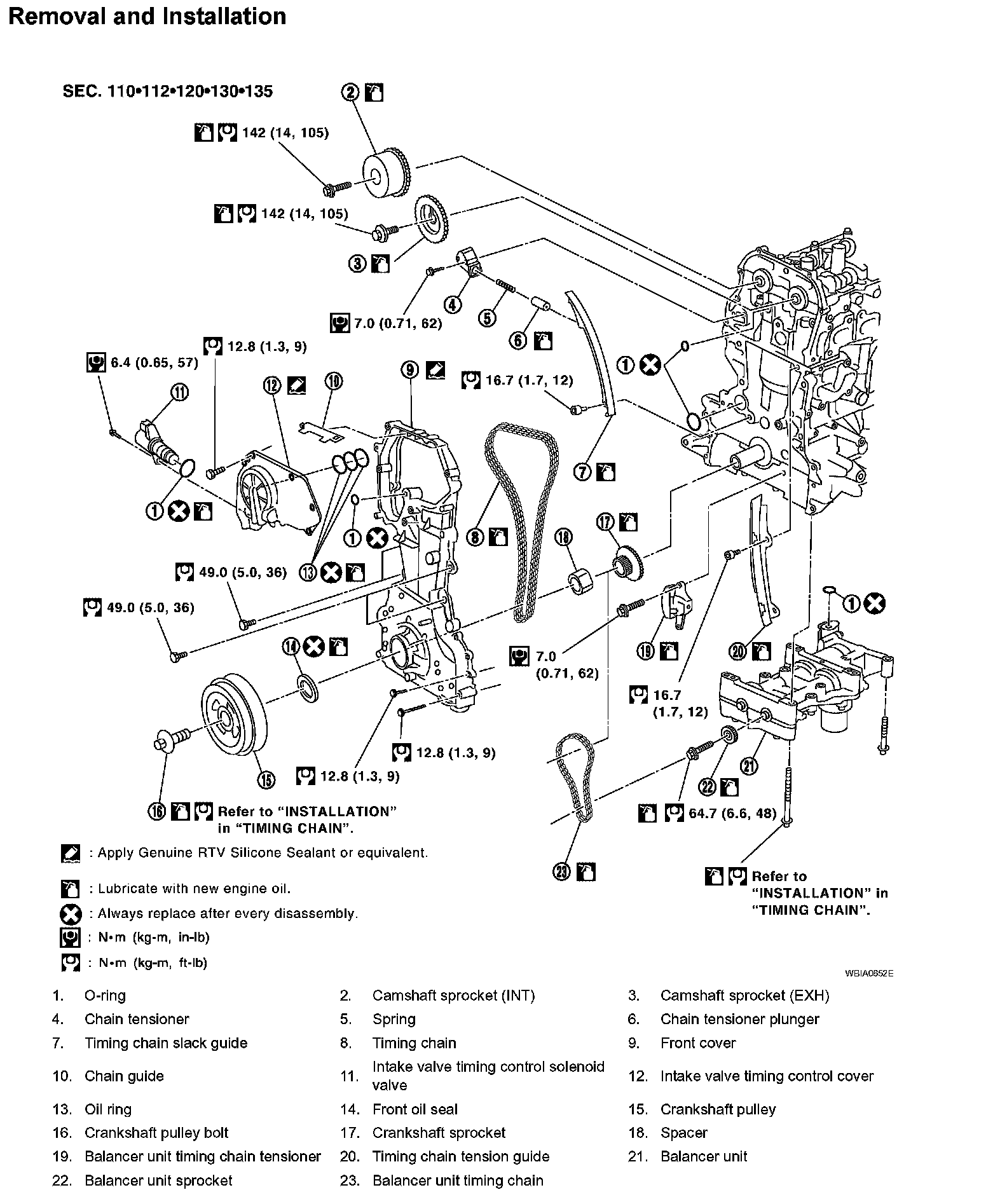

Timing Chain Tensioner Image Symbols:
Crankshaft Pulley Torque
42.1 Nm (4.3 kgf-m, 31 ft. lbs.)

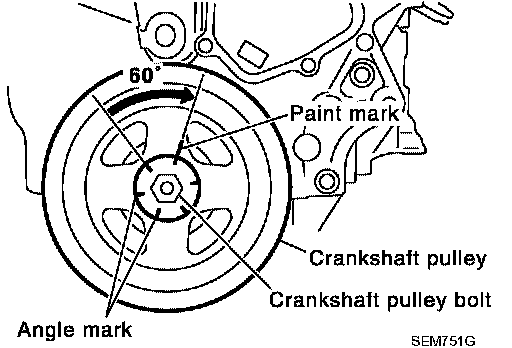

Put a paint mark on crankshaft pulley, mating with any one of six easy to recognize angle marks on bolt flange.
Turn another 60° degrees clockwise (angle tightening).
^
Check the tightening angle with movement of one angle mark.
