Connecting Rod, Engine
CONNECTING ROD BEND AND TORSION Bend Limit:
0.15 mm (0.0059 inch) per 100 mm (3.94 inch) length Torsion Limit:
0.3 mm (0.012 inch) per 100 mm (3.94 inch) length If it exceeds the limit, replace
connecting rod assembly.

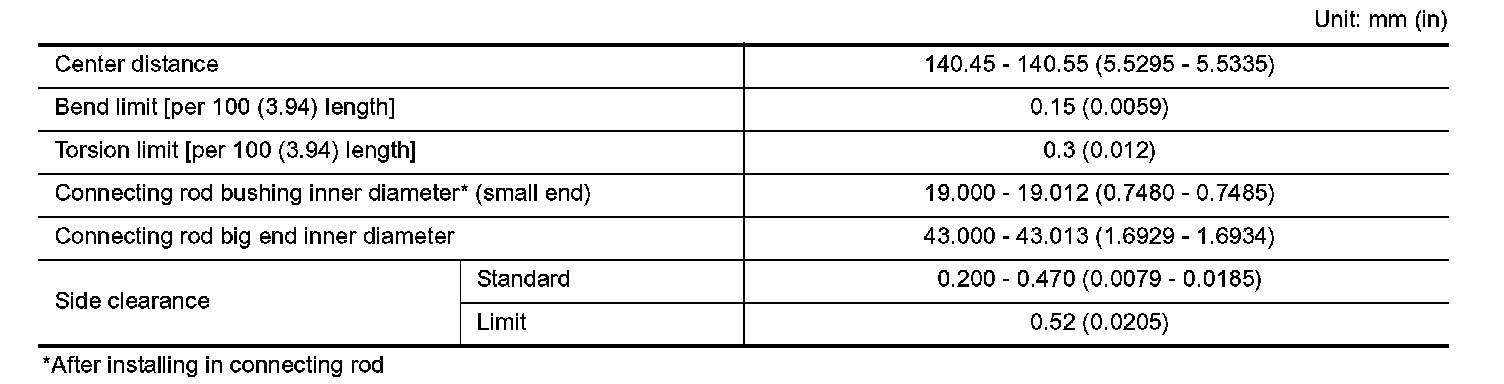

Connecting Rod:
Connecting Rod
