Data Monitor Procedure

DATA MONITOR PROCEDURE

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carries out CAN communication.





1. Turn ignition switch OFF.
2. Connect CONSULT-II and CONSULT-II CONVERTER to the data link connector.
3. Turn ignition switch ON.

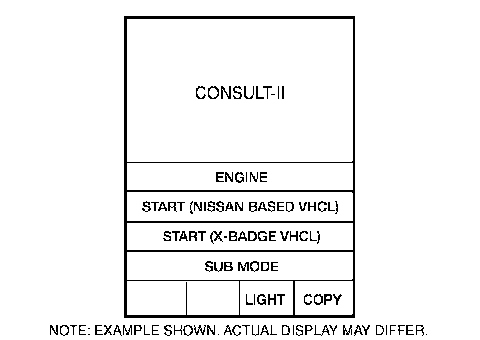

4. Touch "START (NISSAN BASED VHCL)" on CONSULT-II screen.

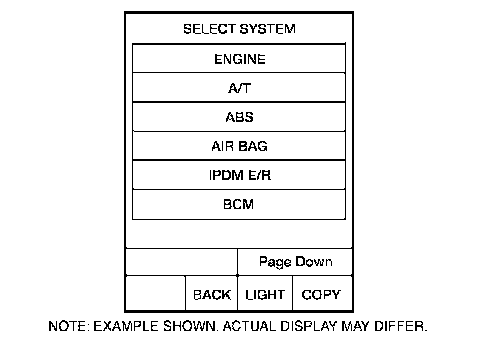

5. Touch "ABS". If "ABS" is not indicated, go to GI-38, "CONSULT-II Data Link Connector (DLC) Circuit". Electrical Diagrams

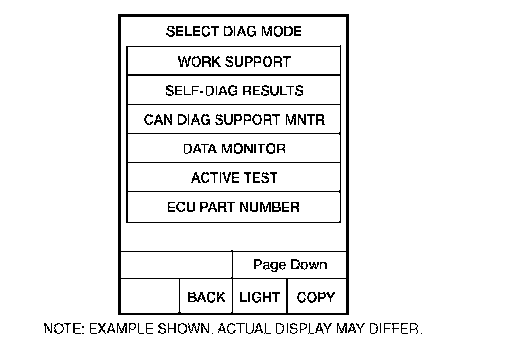

6. Touch "DATA MONITOR".
