Pinout Values and Diagnostic Parameters
TCM Terminals and Reference ValuePREPARATION Measure voltage between each terminal and terminal 25 or 48 by following "
TCM INSPECTION TABLE".
TCM Harness Connector Terminal Layout:

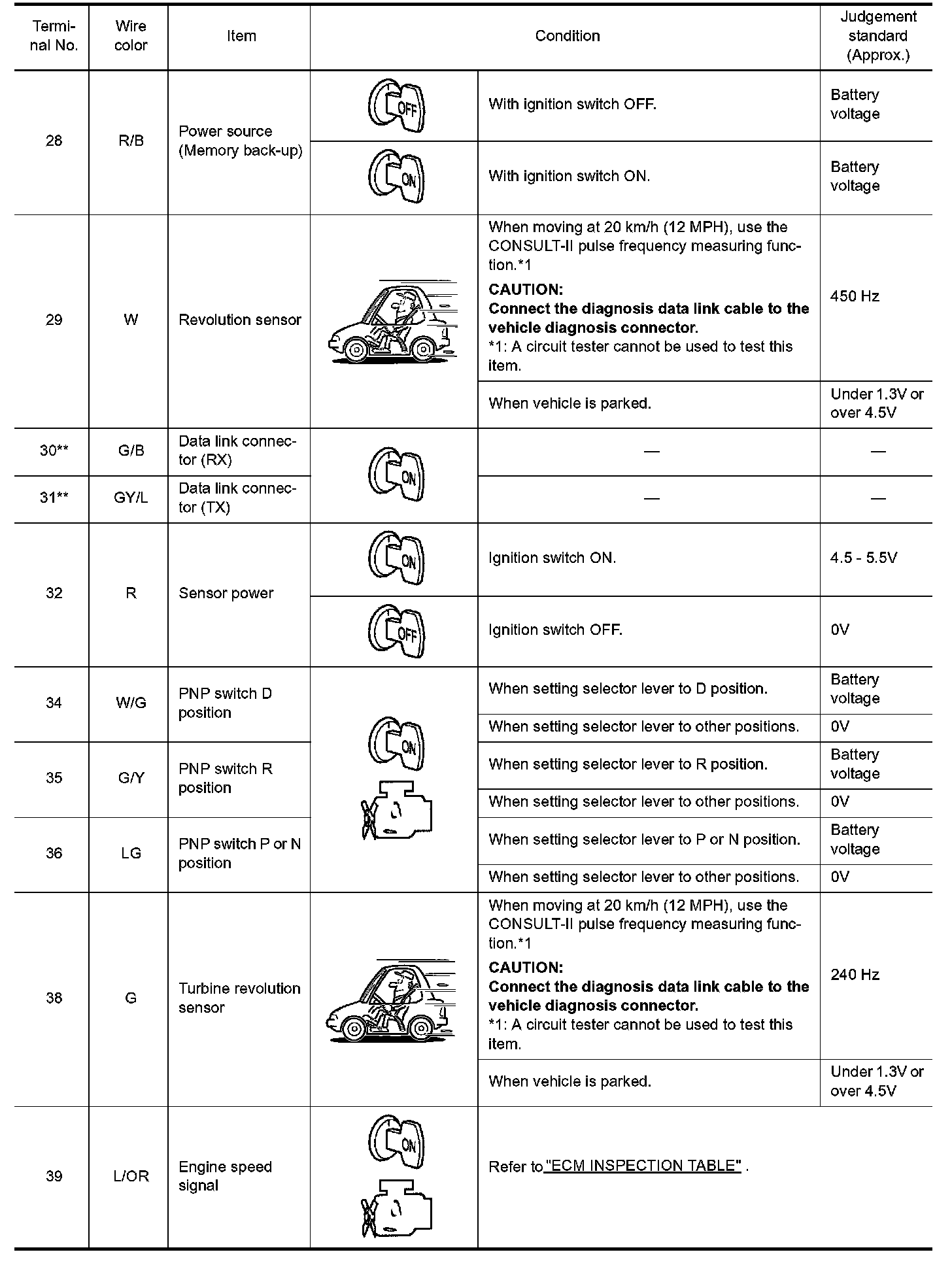

TCM INSPECTION TABLETCM Inspection Table (part 1):

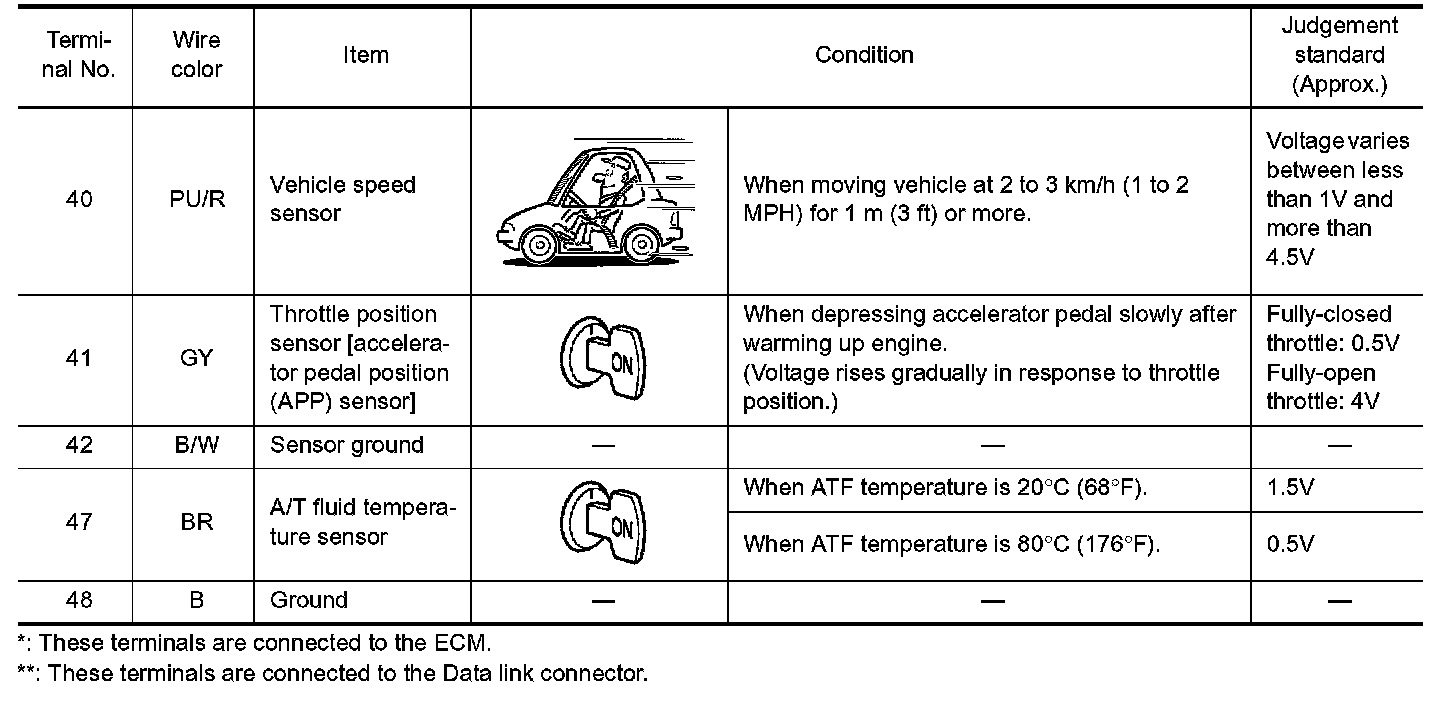

TCM Inspection Table (part 2):

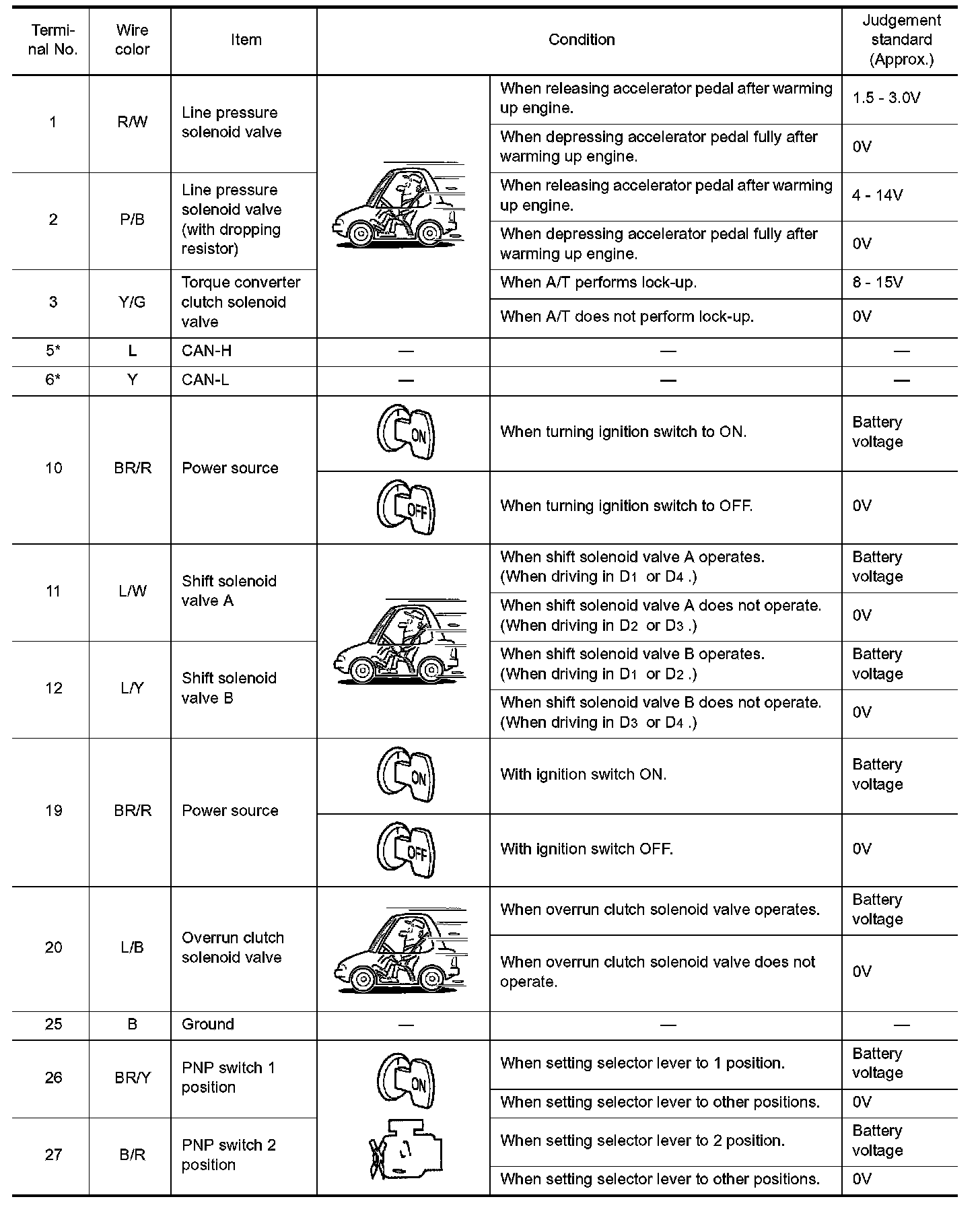

TCM Inspection Table (part 3):
(Data are reference values.)
