Shift Schedule

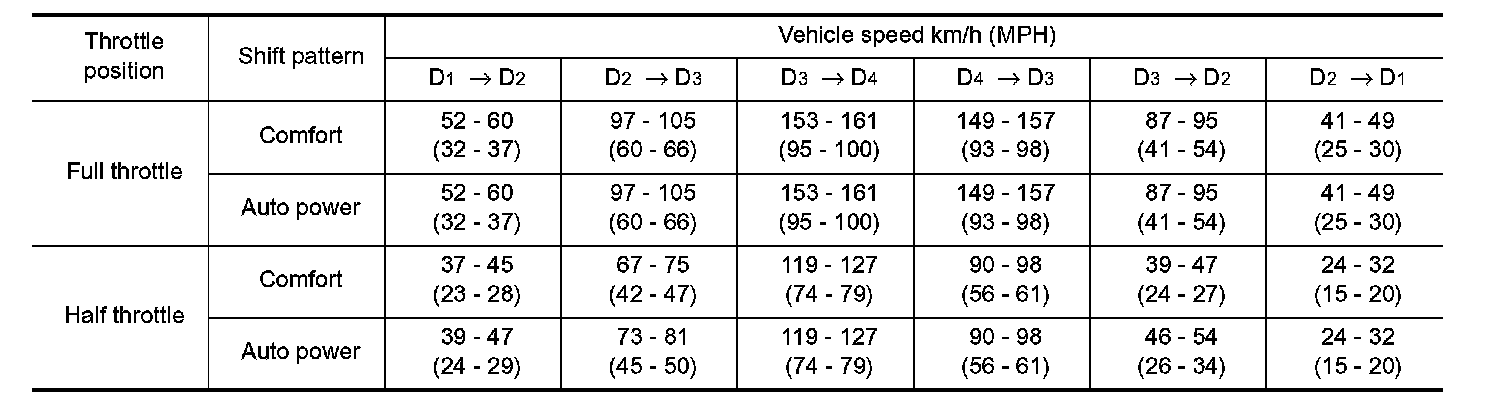

Shift ScheduleVehicle Speed When Shifting Gears Throttle Position:

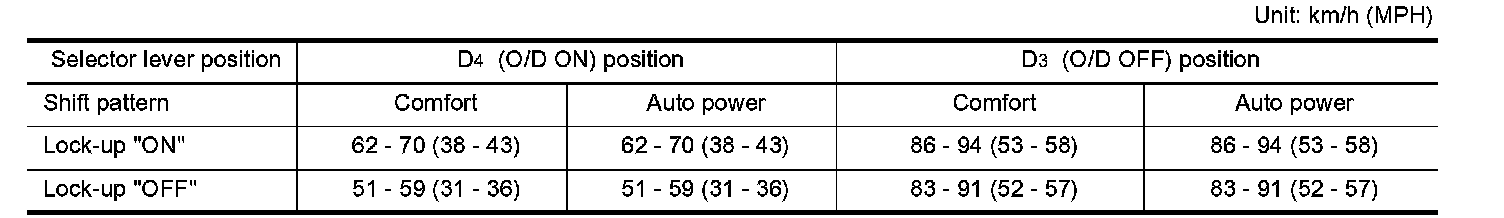

Vehicle Speed When Preforming And Releasing Lock-Up:
NOTE: ^
Lock-up vehicle speed indicates the speed in D4 (O/D ON) position.
^
Perform lock-up inspection after warming up engine.
^
Lock-up vehicle speed may vary depending on the driving conditions and circumstances.
