Keyless Entry Receiver: Service and Repair
REMOTE KEYLESS ENTRY RECEIVERRemovalREMOVAL 1.
Remove glove compartment.
2.

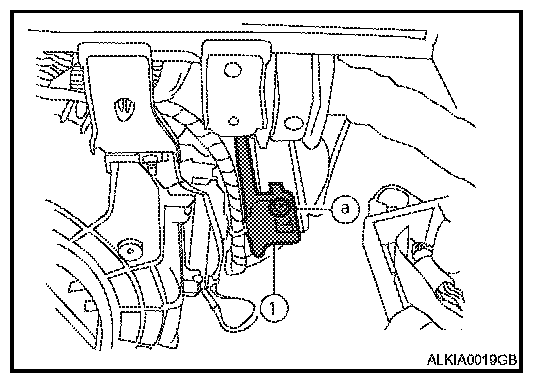

Remove the screw (a), lower the bracket and remote keyless entry receiver (1) disconnect the harness and remove.
InstallationInstallation is in the reverse order of removal.
