Control Unit

ON-VEHICLE REPAIR

CONTROL UNIT

Removal and Installation

FRONT AIR CONTROL

Removal
1. Remove cluster lid D.

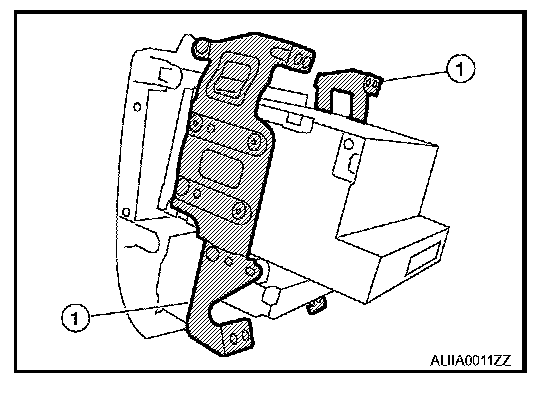

2. Remove the two brackets (1) and remove the front air control.

Installation
Installation is in the reverse order of removal.
