Keyless Starting System: Service and Repair
ON-VEHICLE REPAIRKEY SLOTRemoval and InstallationREMOVAL 1.
Remove the instrument lower panel LH (2).
2.
Disconnect
key slot connector.
3.
Remove the

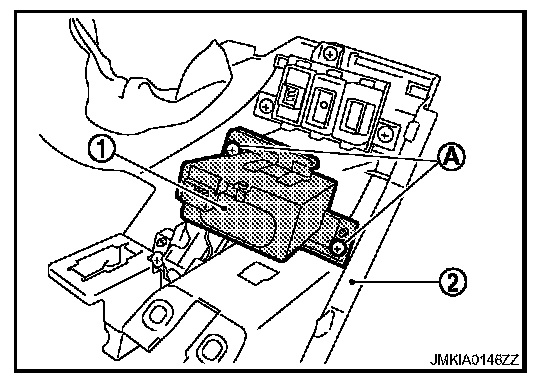

key slot mounting screw (A), and then remove key slot (1) from instrument lower panel LH (2).
INSTALLATIONInstall in the reverse order of removal.
