Scan Tool Testing and Procedures

CONSULT-III CHECKING SYSTEM




Description
- When CONSULT-III is connected with a data link connector equipped on the vehicle side, it will communicate with the control unit equipped in the vehicle and then enable various kinds of diagnostic tests.

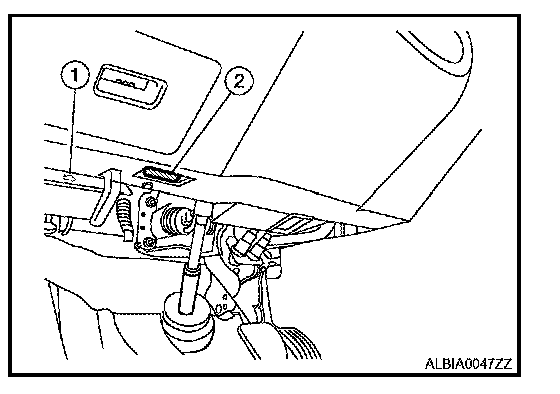

1: Hood release handle
2: Data link connector

- Refer to "CONSULT-III Software Operation Manual" for more information.




Function and System Application

CONSULT-III Data Link Connector (DLC) Circuit

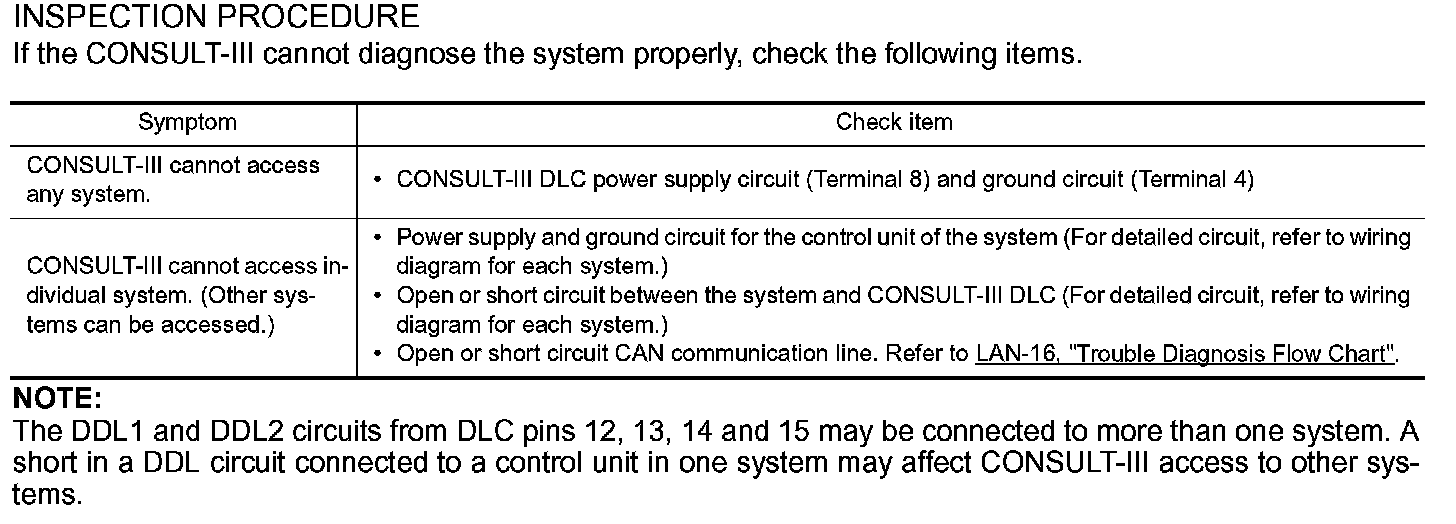

INSPECTION PROCEDURE

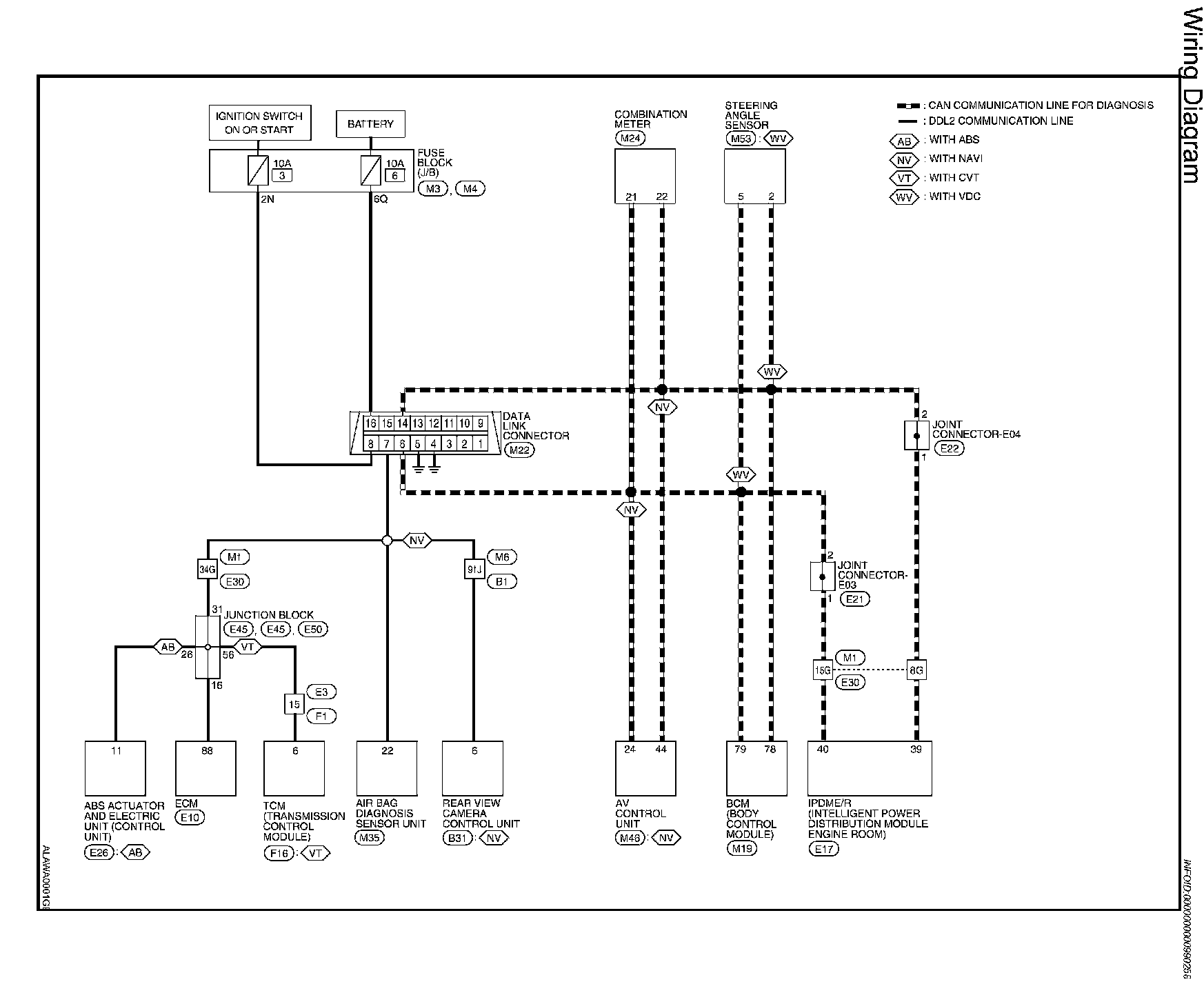

Wiring Diagram
