Front Cover




Tighten bolts in numerical order as shown.
^ Refer to the following for locating M6 bolts.
Bolt position
45 mm (1.77 in): 5, 10, 14, 17
20 mm (0.79 in): Except the above (Except 1 to 4)
^ Tighten bolts to the specified torque.
M6 bolts 12.8 Nm (1.3 kg-m, 9 ft-lb)
M10 bolts 49.0 Nm (5.0 kg-m, 36 ft-lb)
After all bolts are tightened, retighten them to the specified torque in numerical order as shown.

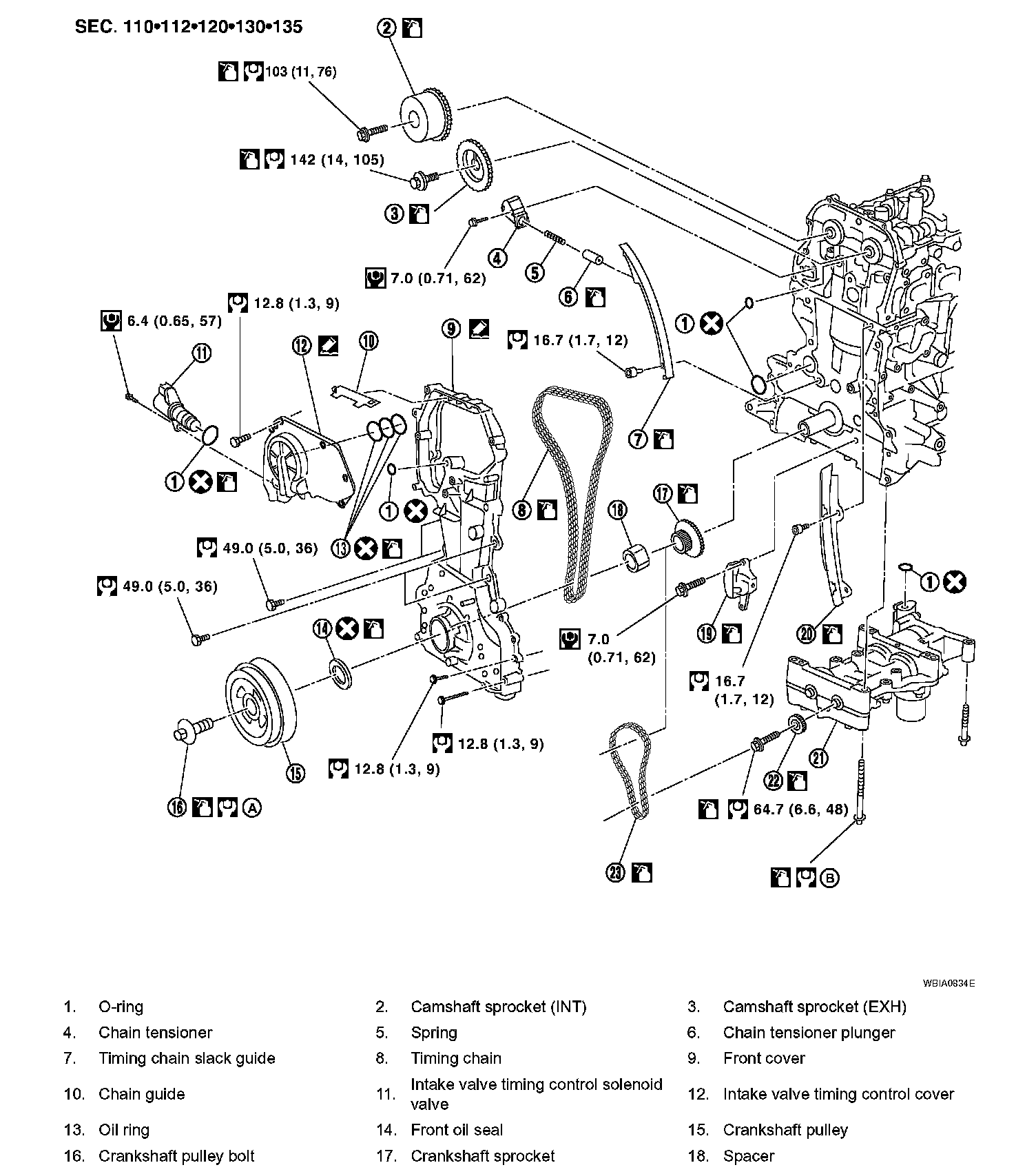

Exploded View EM-48 (Part 1):

Exploded View EM-48 (Part 2):

Timing Chain Tensioner

Crankshaft Pulley
Tighten crankshaft pulley bolt using Tool.
Tool number: KV10112100 (BT-8653-A)
Secure crankshaft pulley using suitable tool, and tighten crankshaft pulley bolt.
Apply new engine oil to thread and seat surfaces of crankshaft pulley bolt.
Tighten crankshaft pulley bolt.
Torque 42.1 Nm (4.3 kg-m, 31 ft-lb)





Put a paint mark on crankshaft pulley, mating with any one of six easy to recognize angle marks on bolt flange.
Turn another 60° degrees clockwise (angle tightening).
Check the tightening angle with movement of one angle mark.
