Navigation Module: Service and Repair

NAVI CONTROL UNIT

Removal

CAUTION: To avoid damage, eject map DVD-ROM before removing the NAVI control unit.

1. Disconnect negative battery cable.
2. Remove center console.
3. Remove cluster lid D.

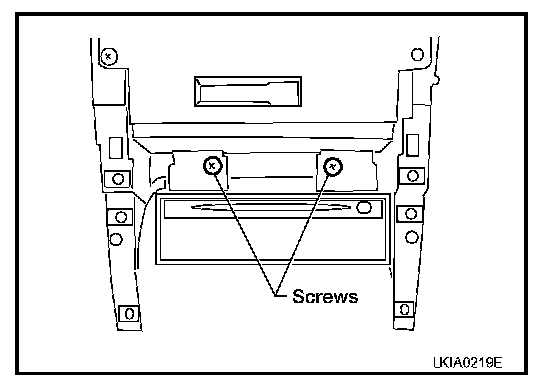

4. Remove screws from front of NAVI control unit.




5. Pull carpet left of NAVI control unit aside and remove screws.
6. Disconnect NAVI control unit connectors.
7. Remove NAVI control unit.

Installation
Installation is in the reverse order of removal.
