Solar Sensor: Service and Repair

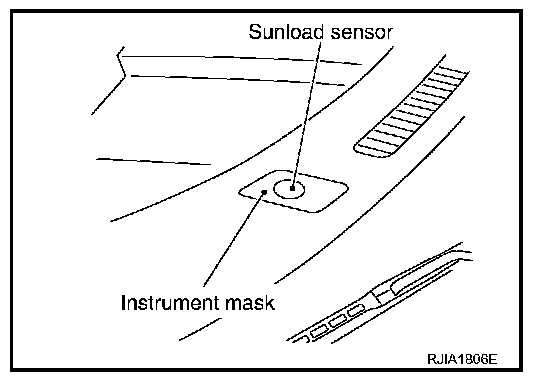

SUNLOAD SENSORRemoval and InstallationREMOVAL 1.
Remove the instrument mask.
2.
Release the sunload sensor tabs and then remove the sunload sensor from the instrument mask.
3.
Disconnect the sunload sensor connector.
4.
Remove the sunload sensor.
INSTALLATIONInstallation is in the reverse order of removal.
