Scan Tool Testing and Procedures

TROUBLE DIAGNOSIS

CAN Diagnostic Support Monitor
Use "CAN DIAG SUPPORT MNTR" for detecting the root cause.

MONITOR ITEM LIST (CONSULT-II)

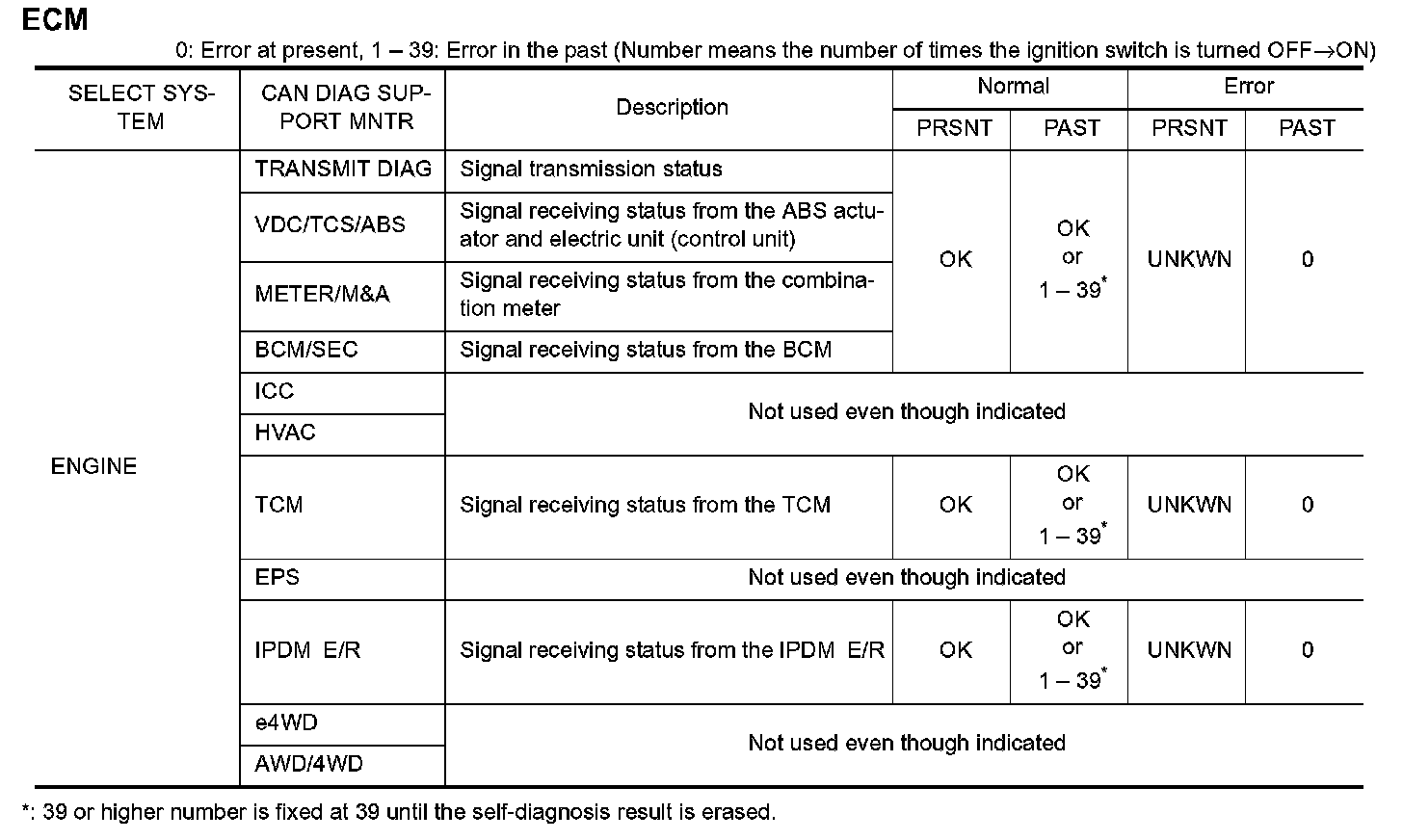

ABS actuator and electric unit (control unit)

TCM

Driver seat control unit

BCM

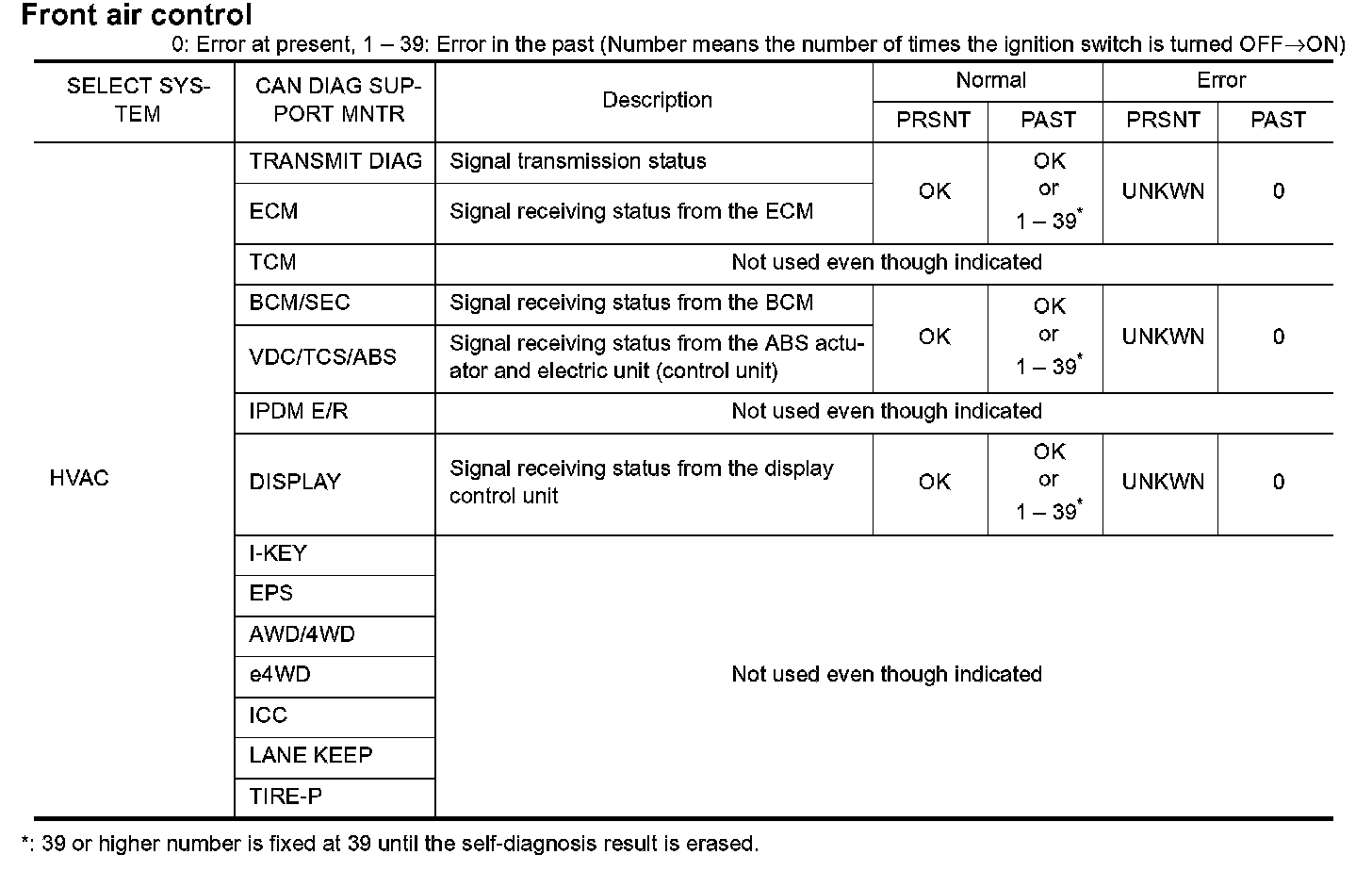

Front air control

Combination meter

IPDM E/R

MONITOR ITEM LIST (ON-BOARD DIAGNOSIS)

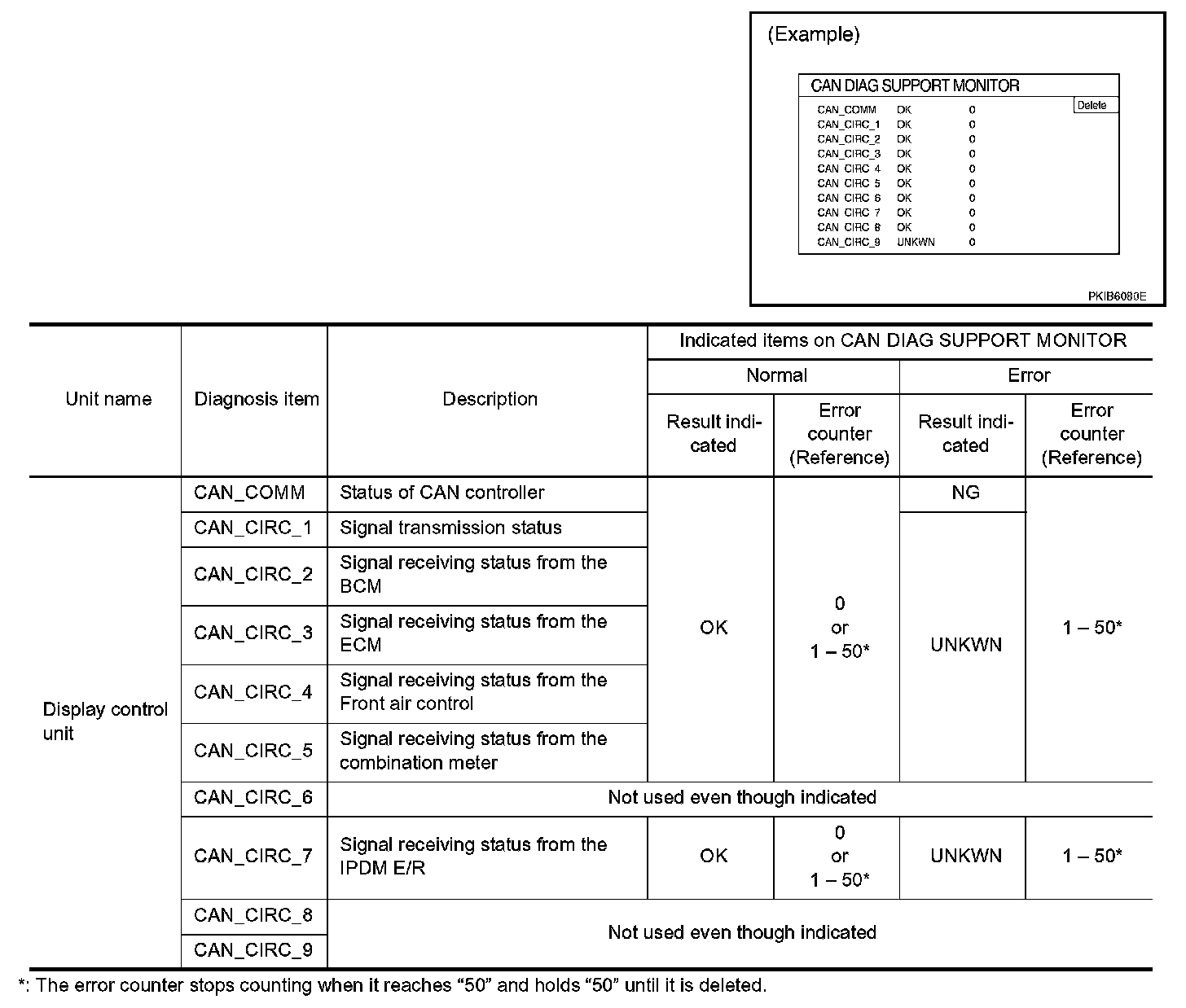

Display control unit

NOTE: CAN diagnostic support monitor of the display control unit is indicated on the vehicle display.
- Models with color display: Refer to AV-165, "CAN Communication Line Check (With Color Display)". CAN Communication Line Check (With Color Display)
- Models with navigation system: Refer to AV-216, "CAN Communication Line Check". CAN Communication Line Check
