Symptom Chart
Symptom Chart Numbers are arranged in order of inspection.
Perform inspections starting with number one and work up.
CAUTION: Do not remove or disassemble any RE5F22A model transaxle parts unless specified to do so.

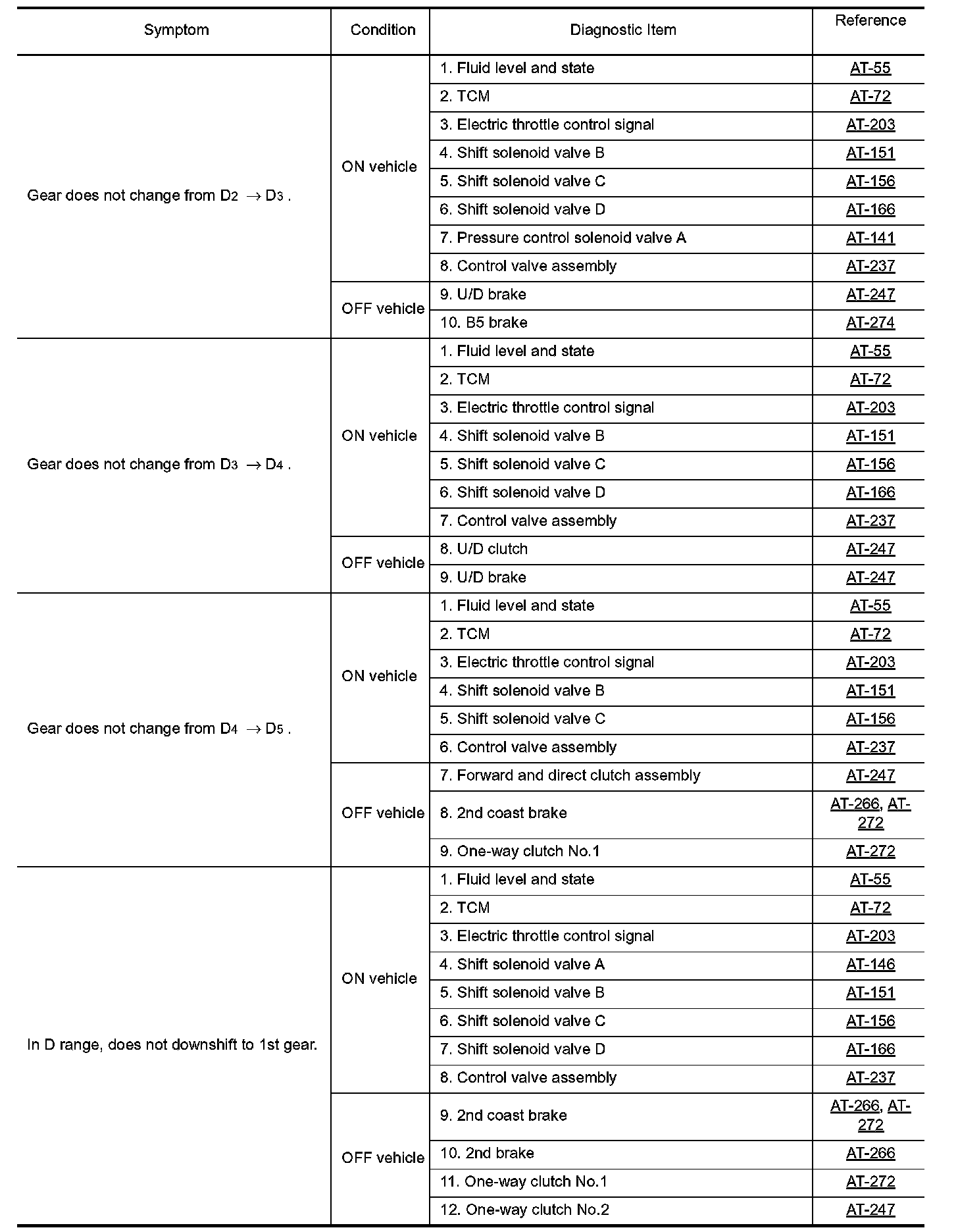

Symptom Chart (Part 1):

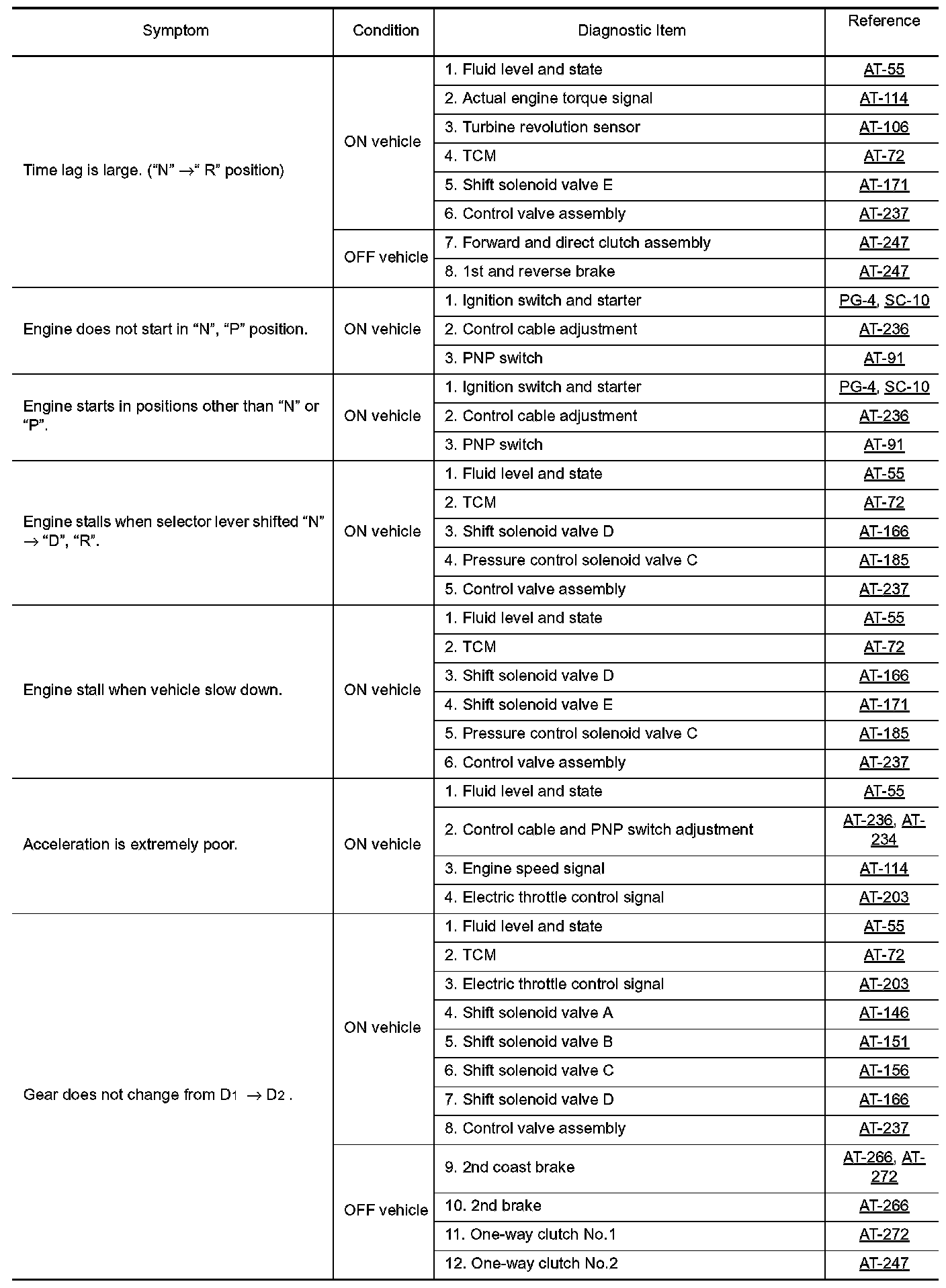

Symptom Chart (Part 2):

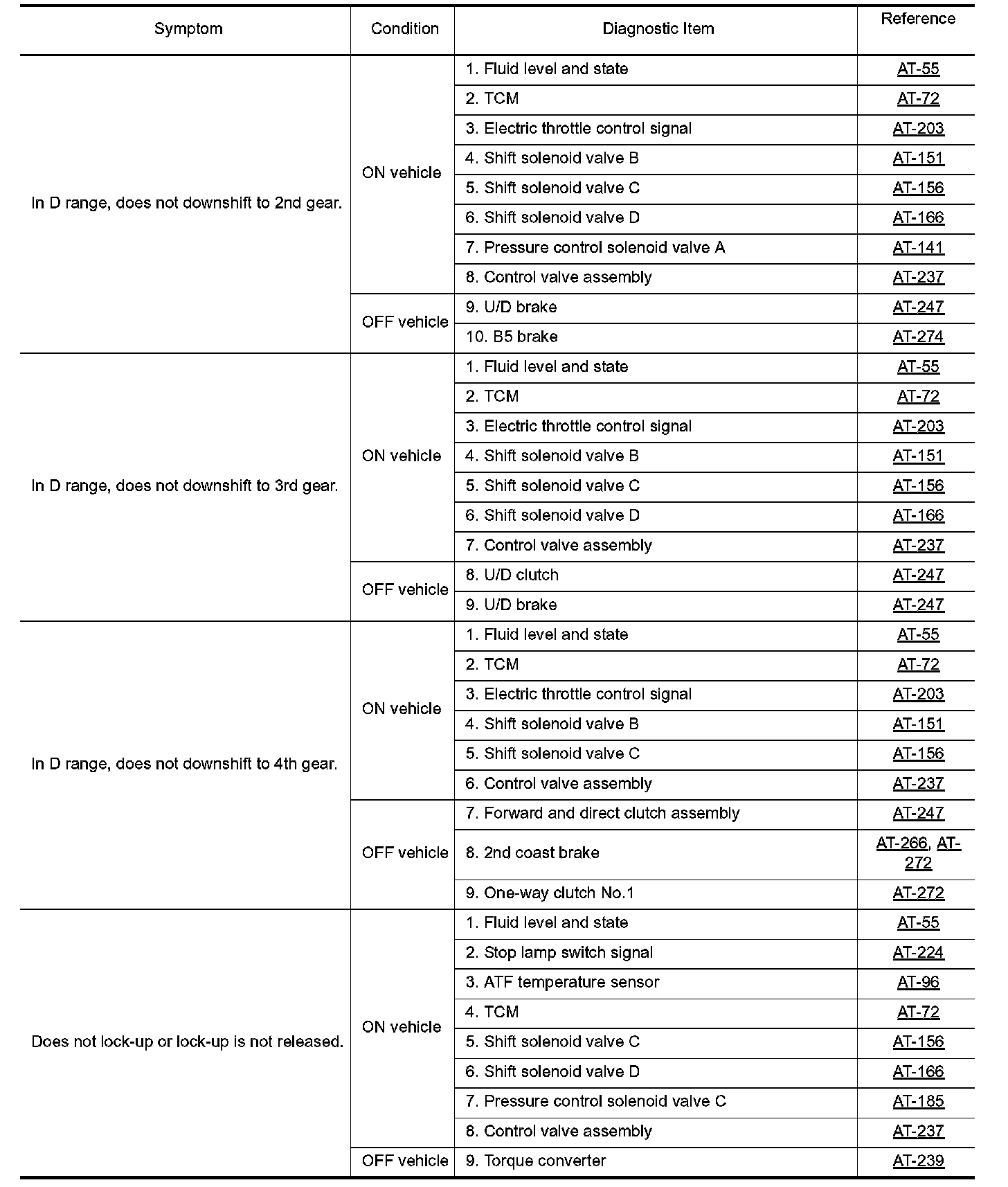

Symptom Chart (Part 3):

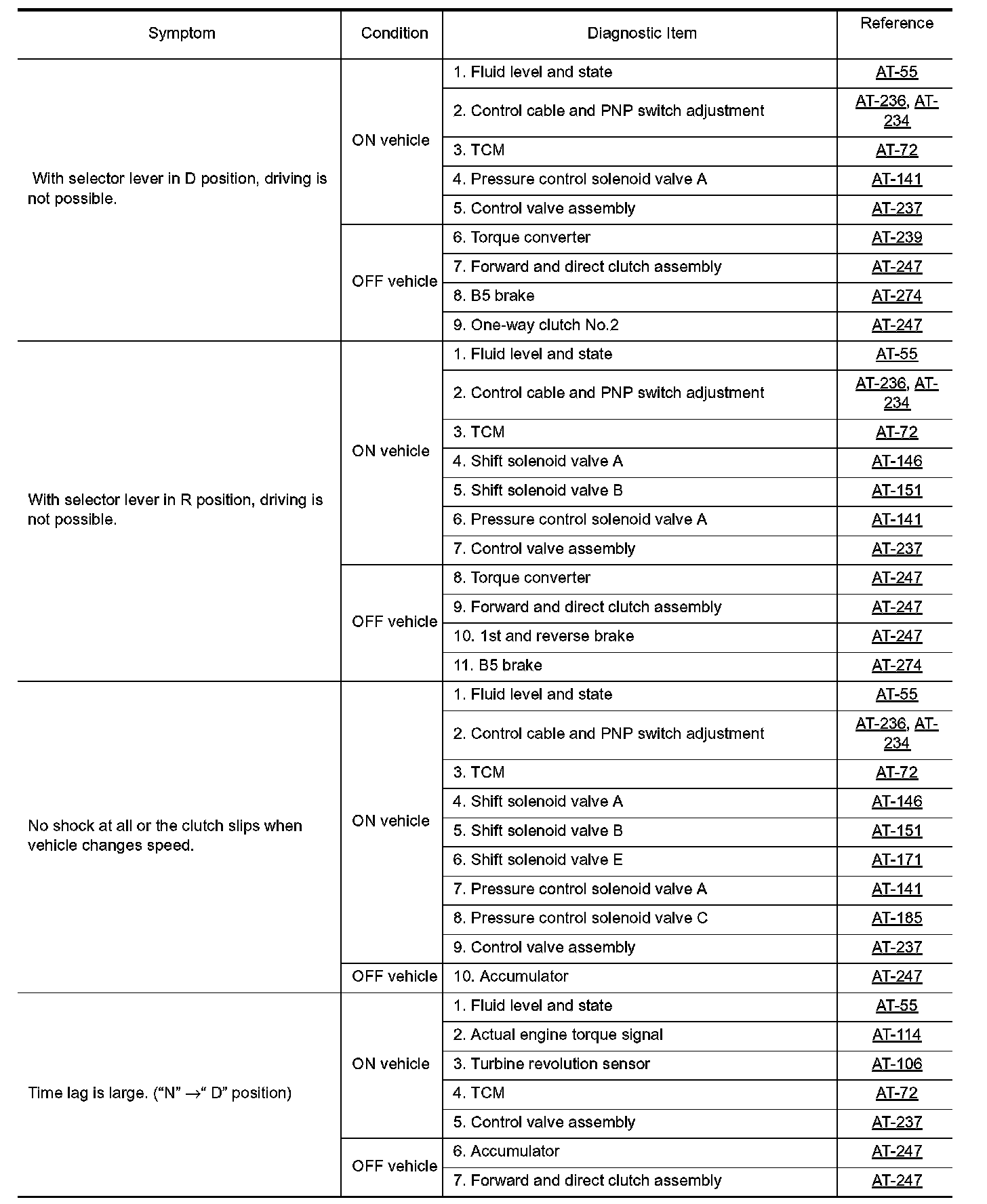

Symptom Chart (Part 4):

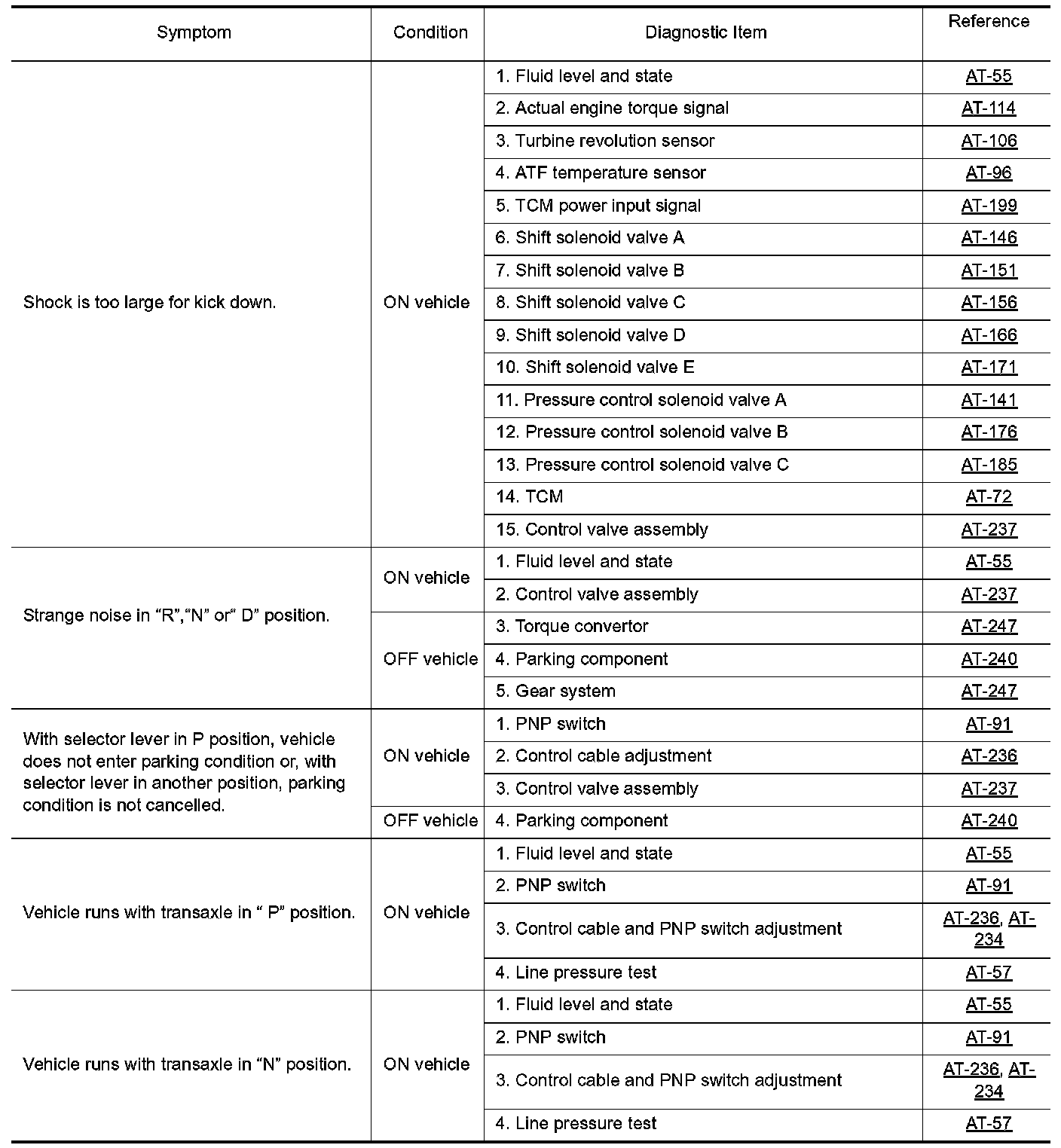

Symptom Chart (Part 5):

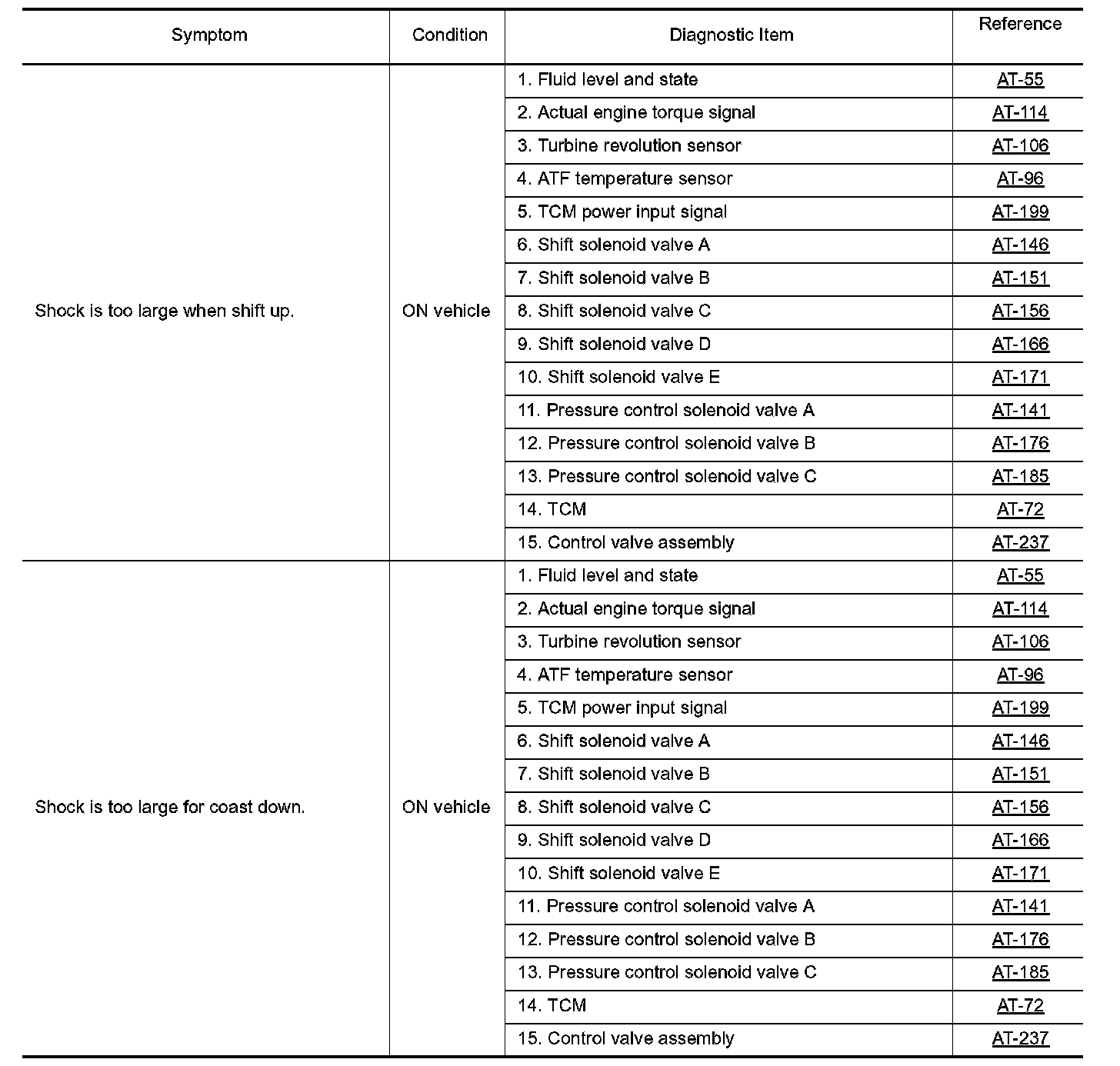

Symptom Chart (Part 6):

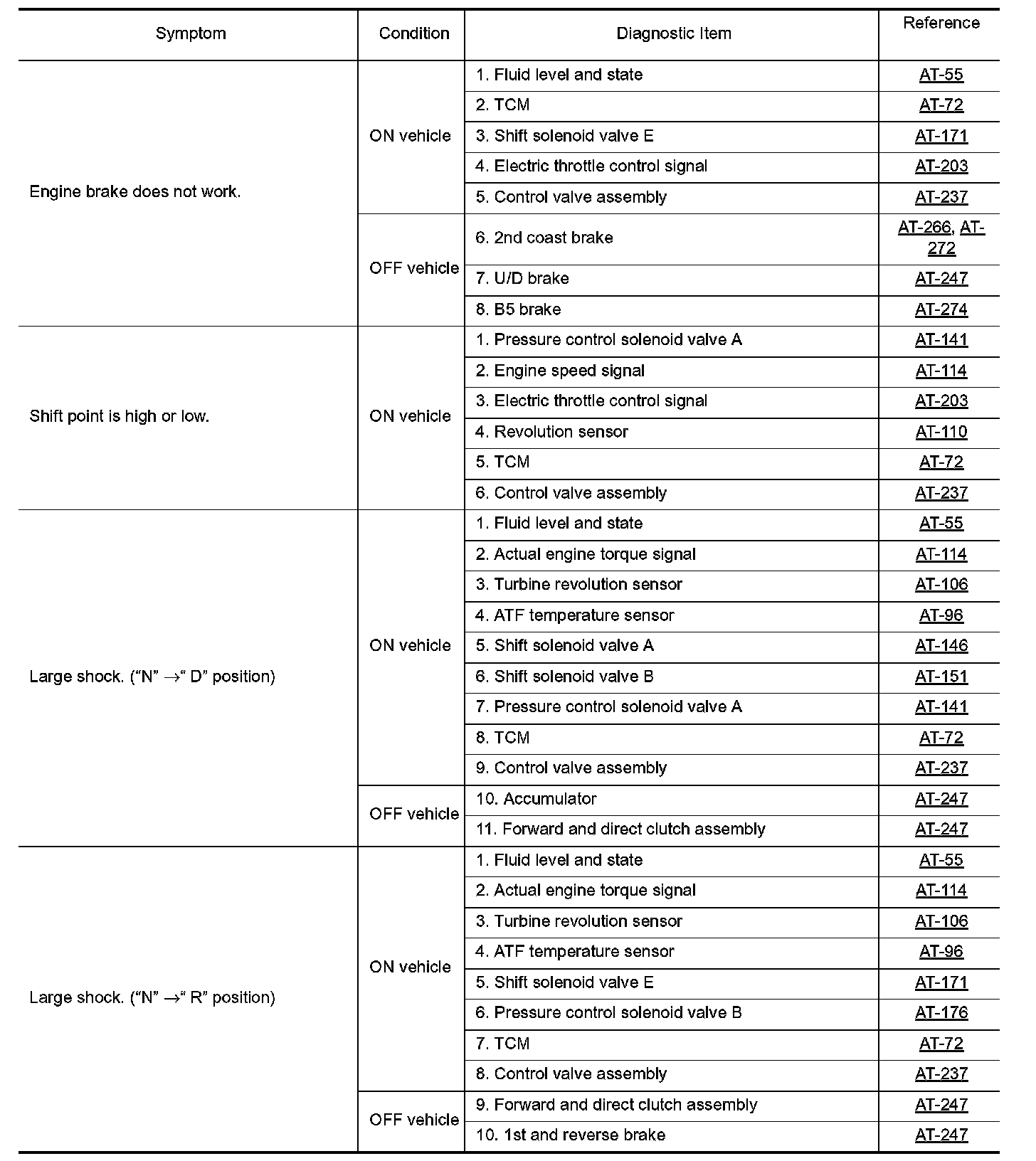

Symptom Chart (Part 7):
