Control Module: Service and Repair

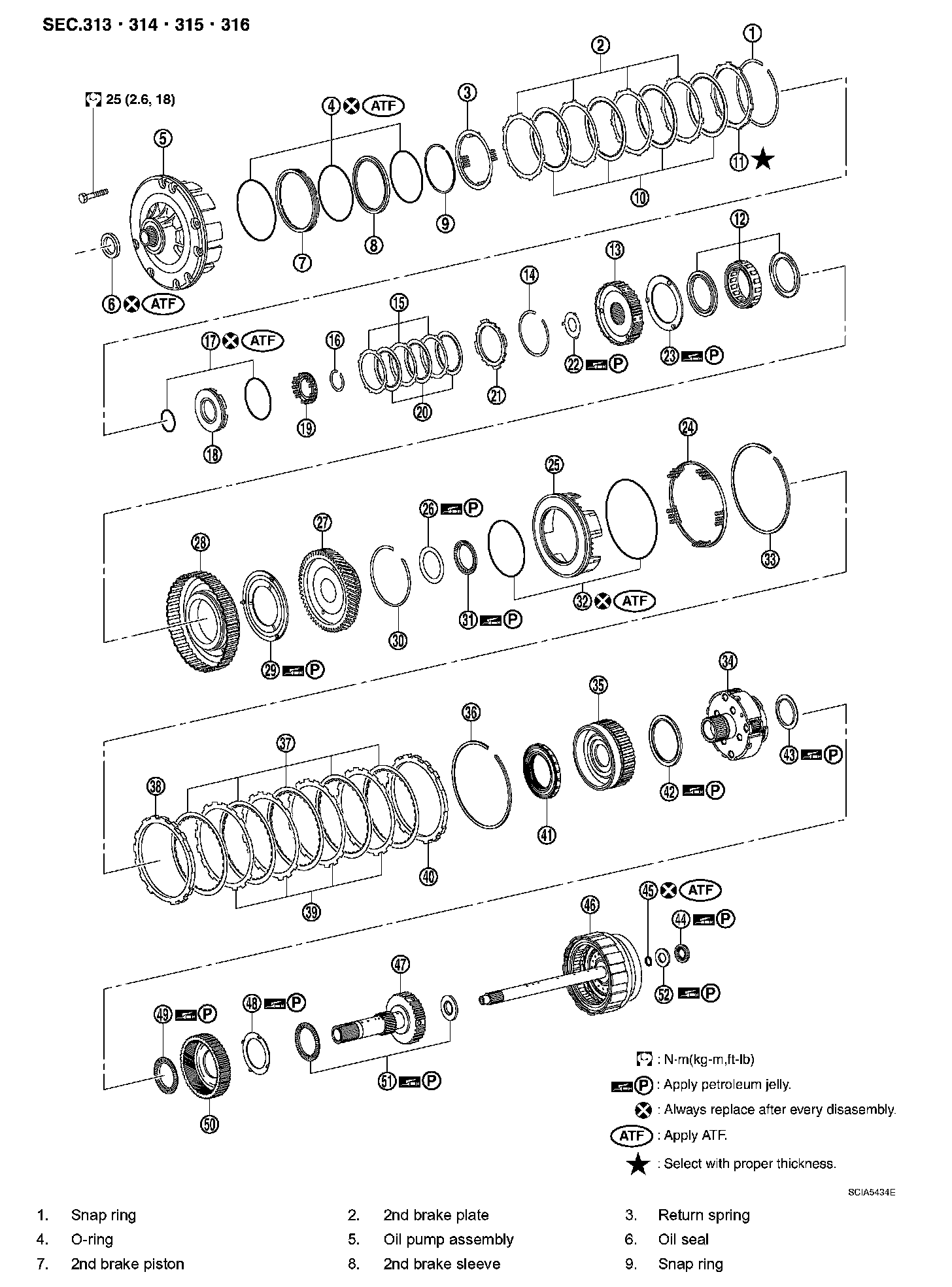

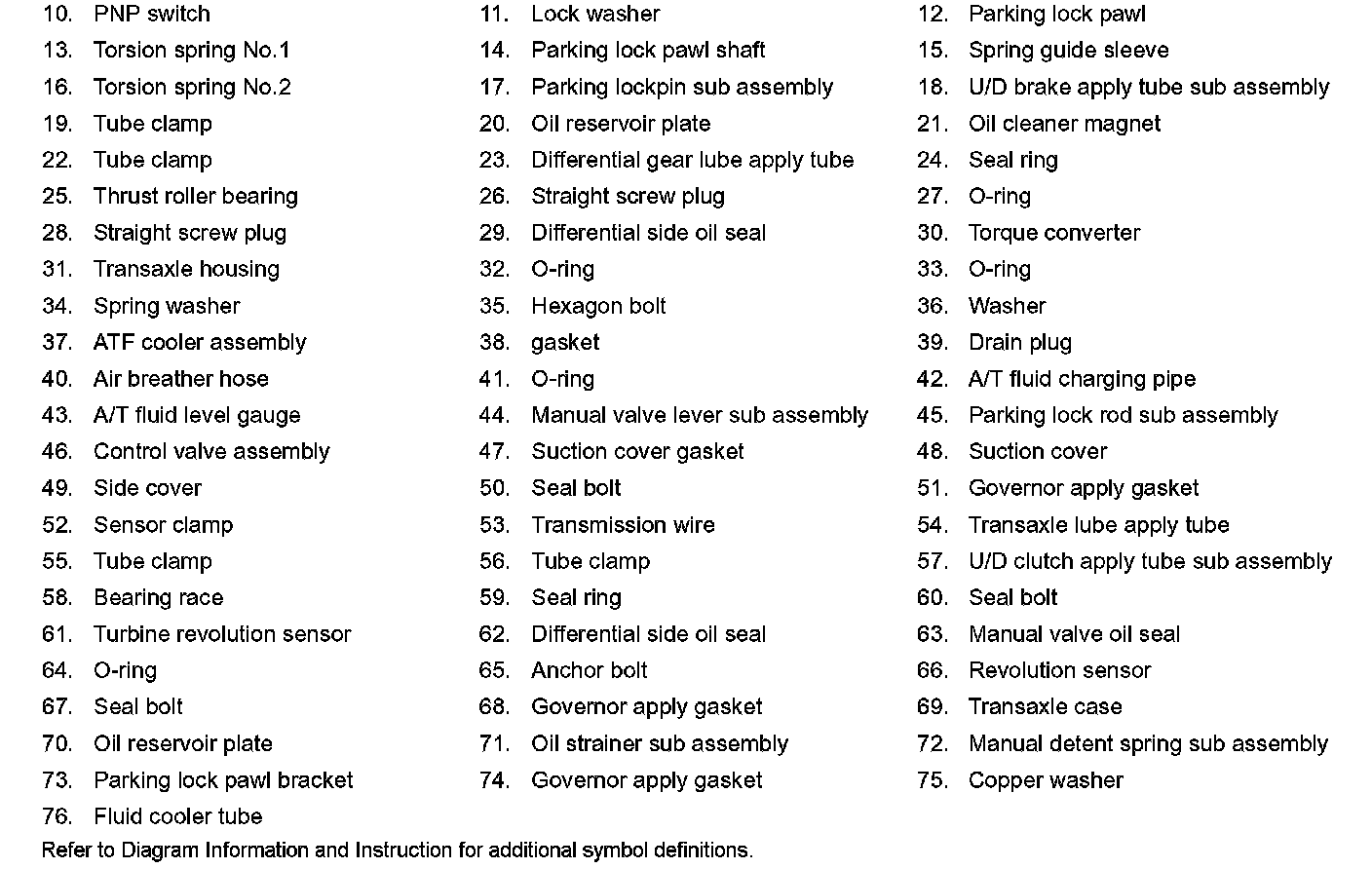

Exploded View AT-240 (Part 1):

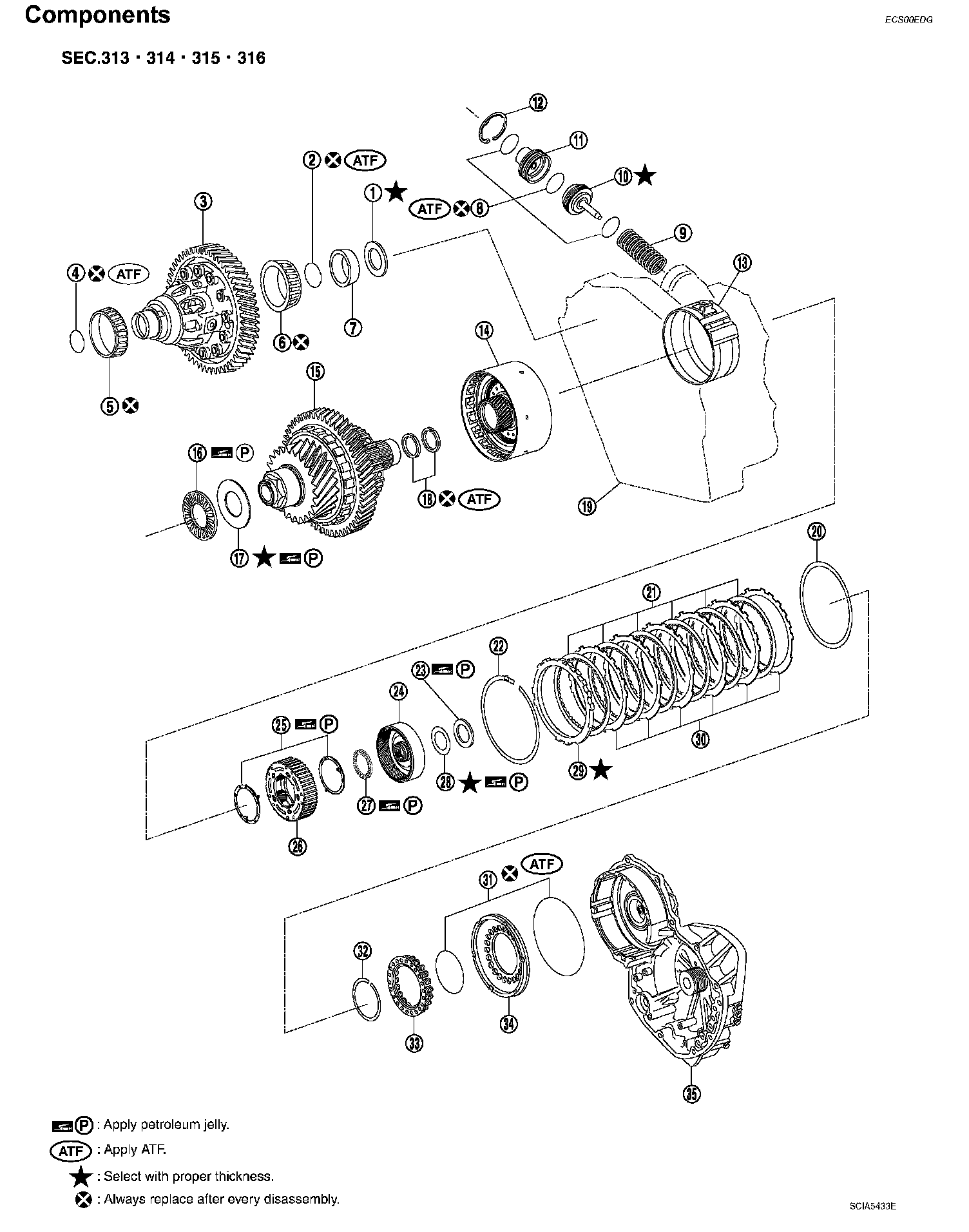

Exploded View AT-240 (Part 2):

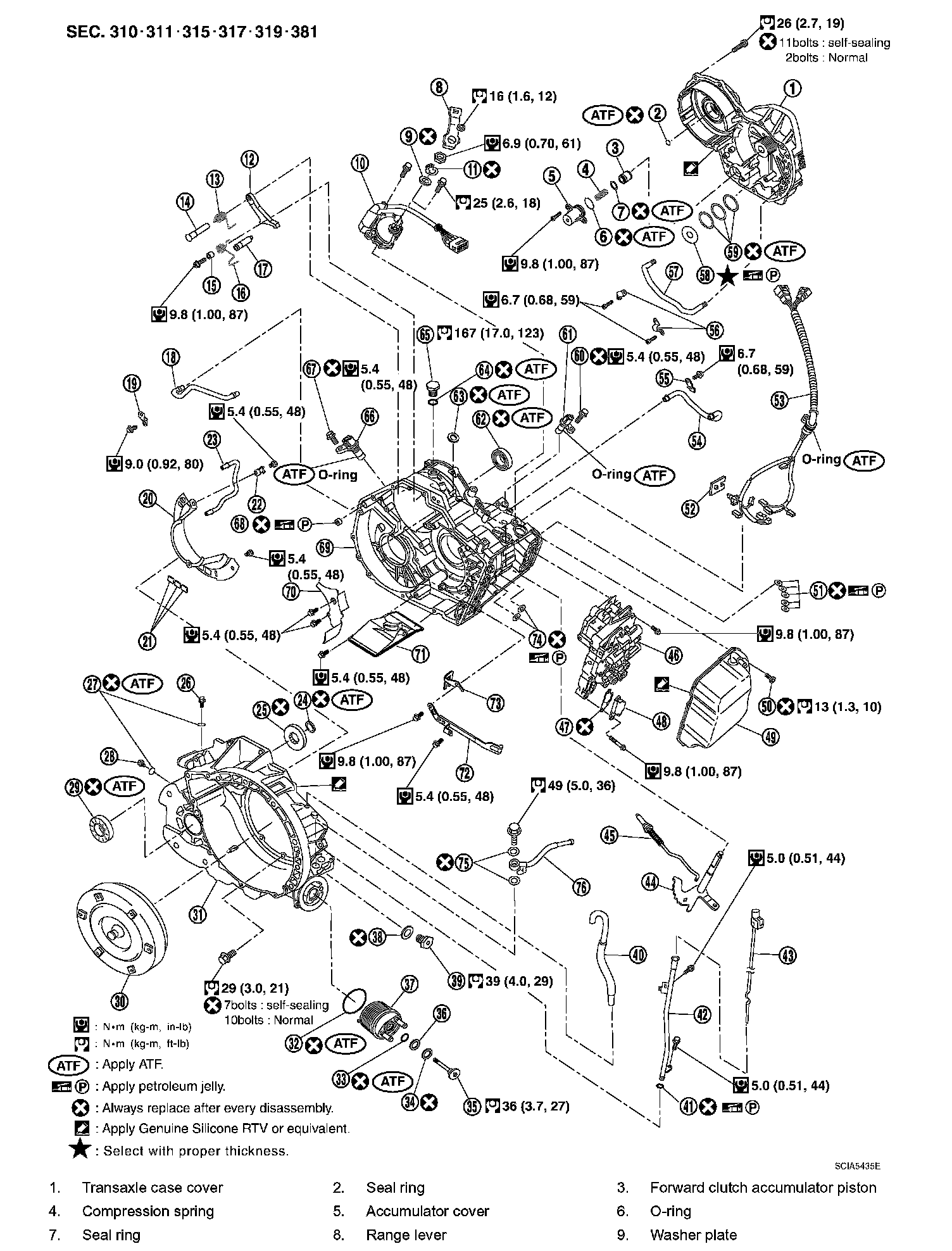

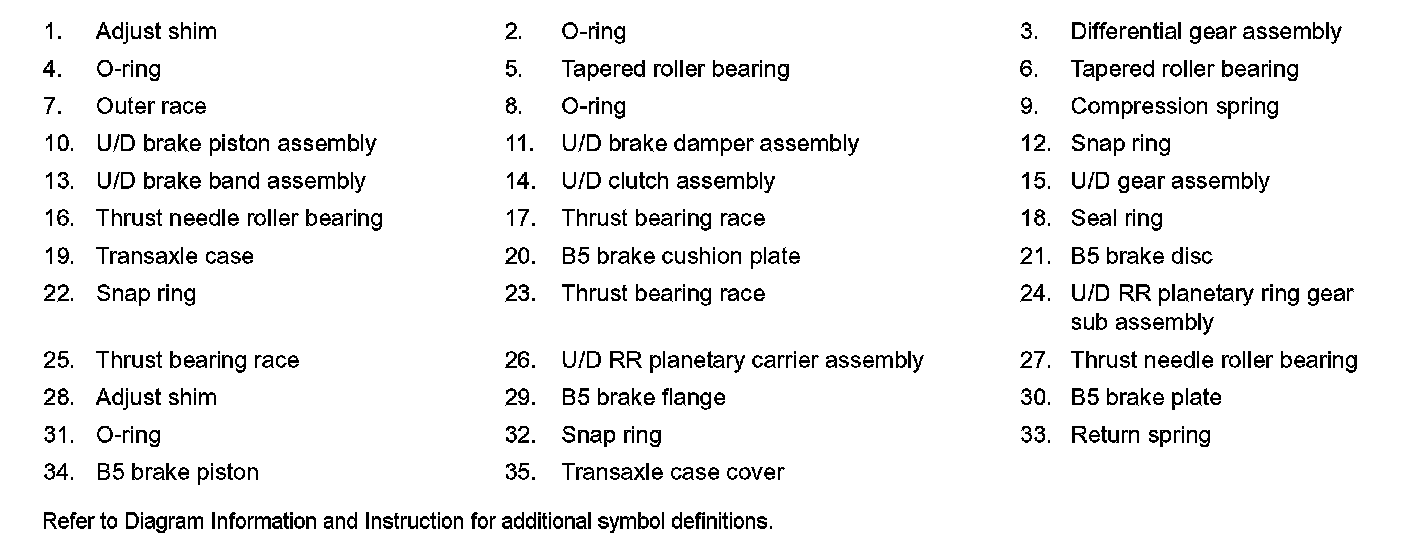

Exploded View AT-242 (Part 1):

Exploded View AT-242 (Part 2):

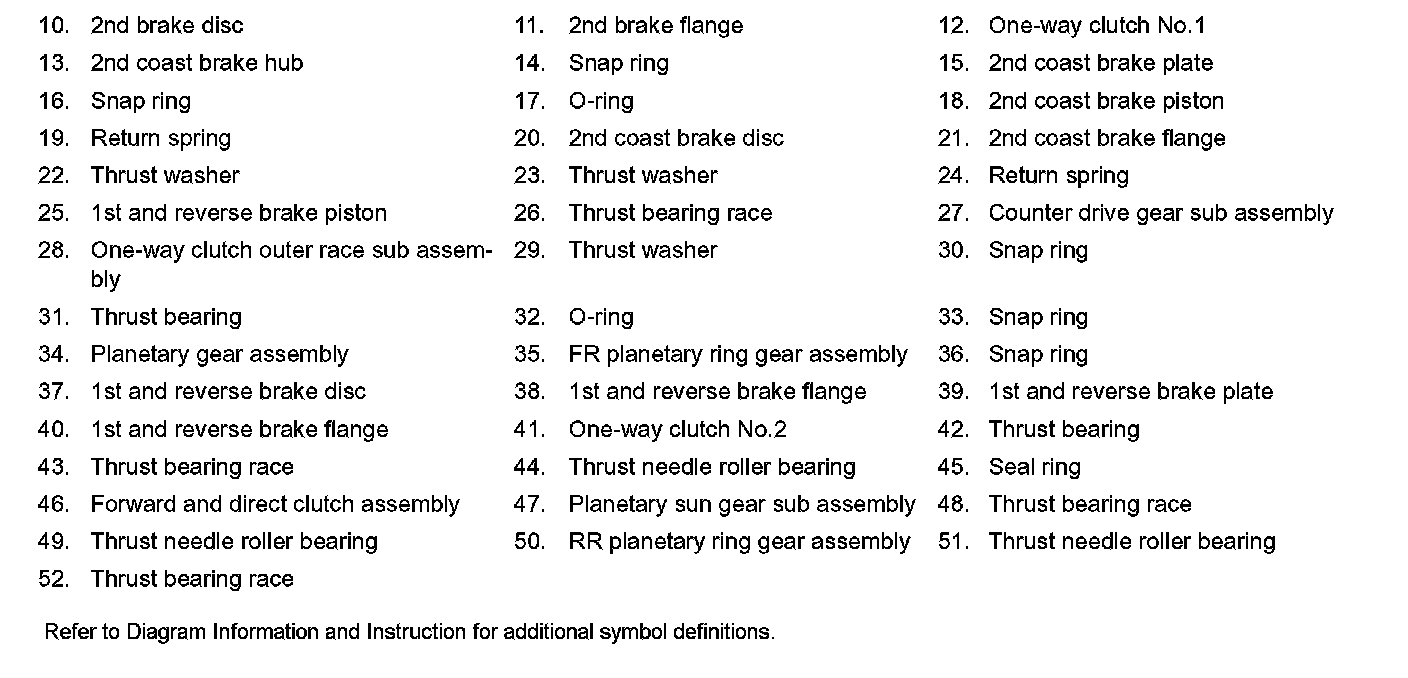

Exploded View AT-244 (Part 1):

Exploded View AT-244 (Part 2):

Control Valve Assembly

REMOVAL
1. Remove side cover.
2. Disconnect solenoid valve connectors.

3. Disconnect control valve assembly bolts and remove control valve assembly.

INSTALLATION
Installation is the reverse order of removal.

^ Install bolts in sequence as shown. Refer to Exploded View AT-240.
