Body Control Systems: Service and Repair

Removal and Installation of BCM

REMOVAL
1. Disconnect the battery negative terminal.
2. Remove the instrument lower finisher. Refer to "INSTRUMENT PANEL ASSEMBLY".
3. Remove the front foot duct (LH).

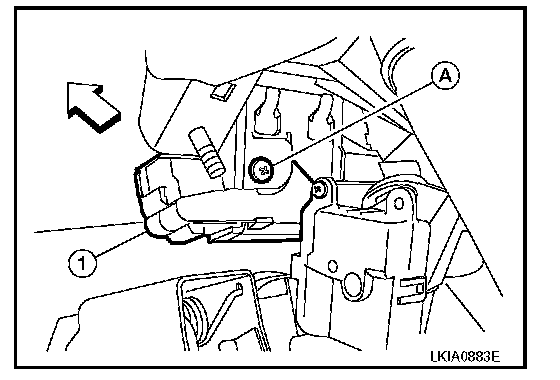

4. Remove the BCM screw (A), disconnect the connectors and remove the BCM (1).

- <= Front

INSTALLATION
Installation is in the reverse order of removal.

NOTE:
- When replacing BCM, it must be configured. Refer to "Configuration". Testing and Inspection
- When replacing BCM, perform initialization of NATS system and registration of all NATS ignition key IDs. Refer to BL-117, "Key Switch (Intelligent Key Unit Input) Check". Key Switch (Intelligent Key Unit Input) Check
- When replacing BCM, if new BCM does not come with keyfobs attached, all existing keyfobs must be reregistered.
