Keyless Entry Transmitter Battery: Testing and Inspection
INTELLIGENT KEY BATTERY INSPECTION 1.

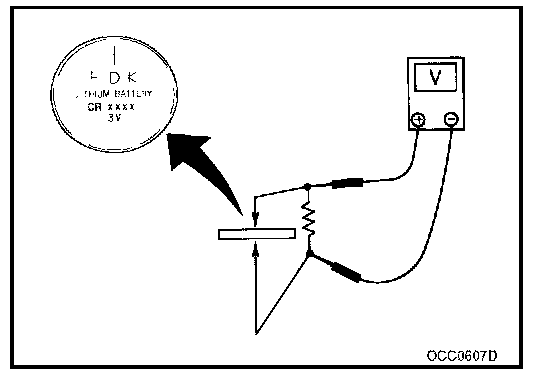

Remove battery to measure voltage across battery positive (+) and negative (-) terminals.
2.
Check by connecting a resistance (approximately
300 ohms) so that the current value becomes about
10 mA.
Standard : Approx.
2.5 - 3.0 V NOTE: Key fob does not function if battery is not installed correctly.
