Control Assembly: Service and Repair
CONTROL UNITRemoval and InstallationFRONT AIR CONTROLRemoval 1.
Remove controller finisher. Refer to "INSTRUMENT PANEL ASSEMBLY".
2.

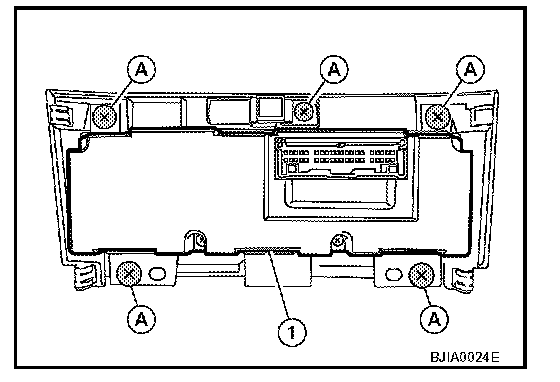

Remove the five screws (A) and remove the front air control (1).
InstallationInstallation is in the reverse order of removal.
