Ignition Timing: Testing and Inspection

IGNITION TIMING
Any of following two methods may be used.

Method A

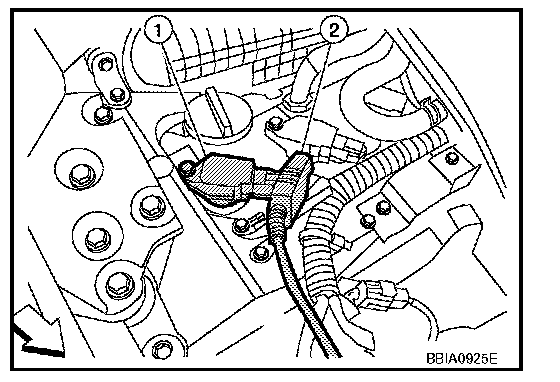

1. Attach timing light to loop wire as shown.
- <=: Vehicle front
- Ignition coil No. 1 (1)
- Timing light (2)




2. Check ignition timing.

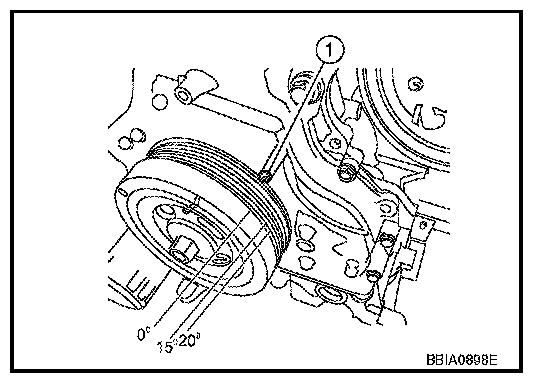

- Timing indicator (1)

Method B




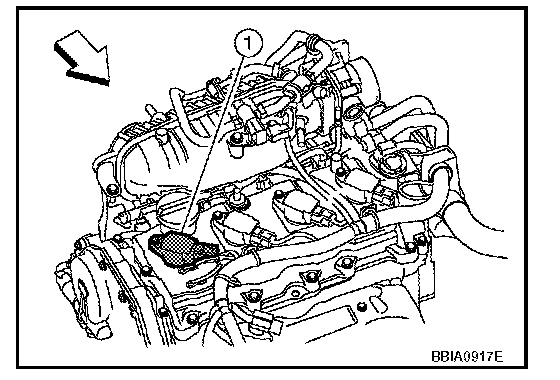

1. Remove No. 1 ignition coil (1).
- <=: Vehicle front

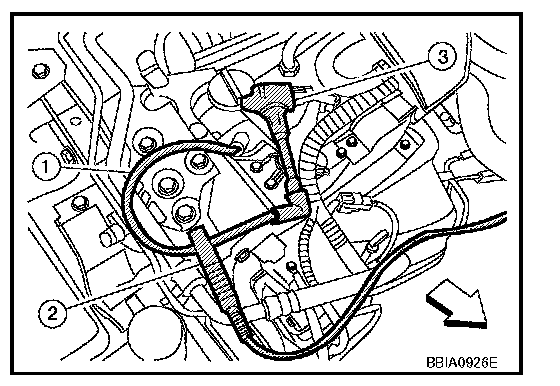

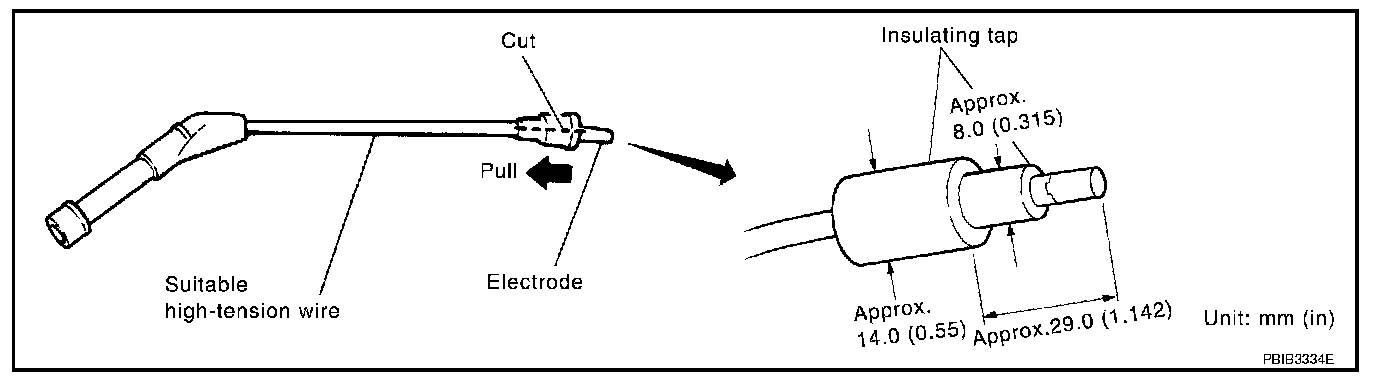

2. Connect No. 1 ignition coil (3) and No. 1 spark plug with suitable high-tension wire (1) as shown, and attach timing light (2) clamp to this wire.
- <=: Vehicle front




3. Check ignition timing.

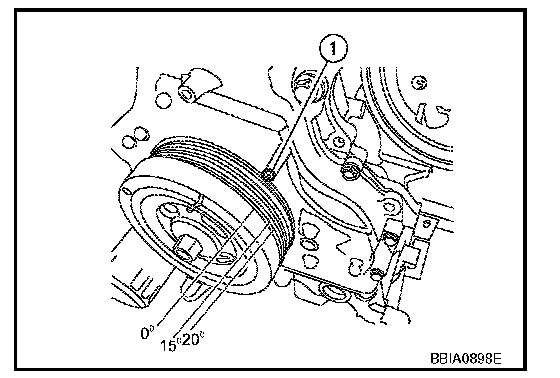

- Timing indicator (1)
