Spark Plug: Service and Repair

SPARK PLUG

Removal and Installation

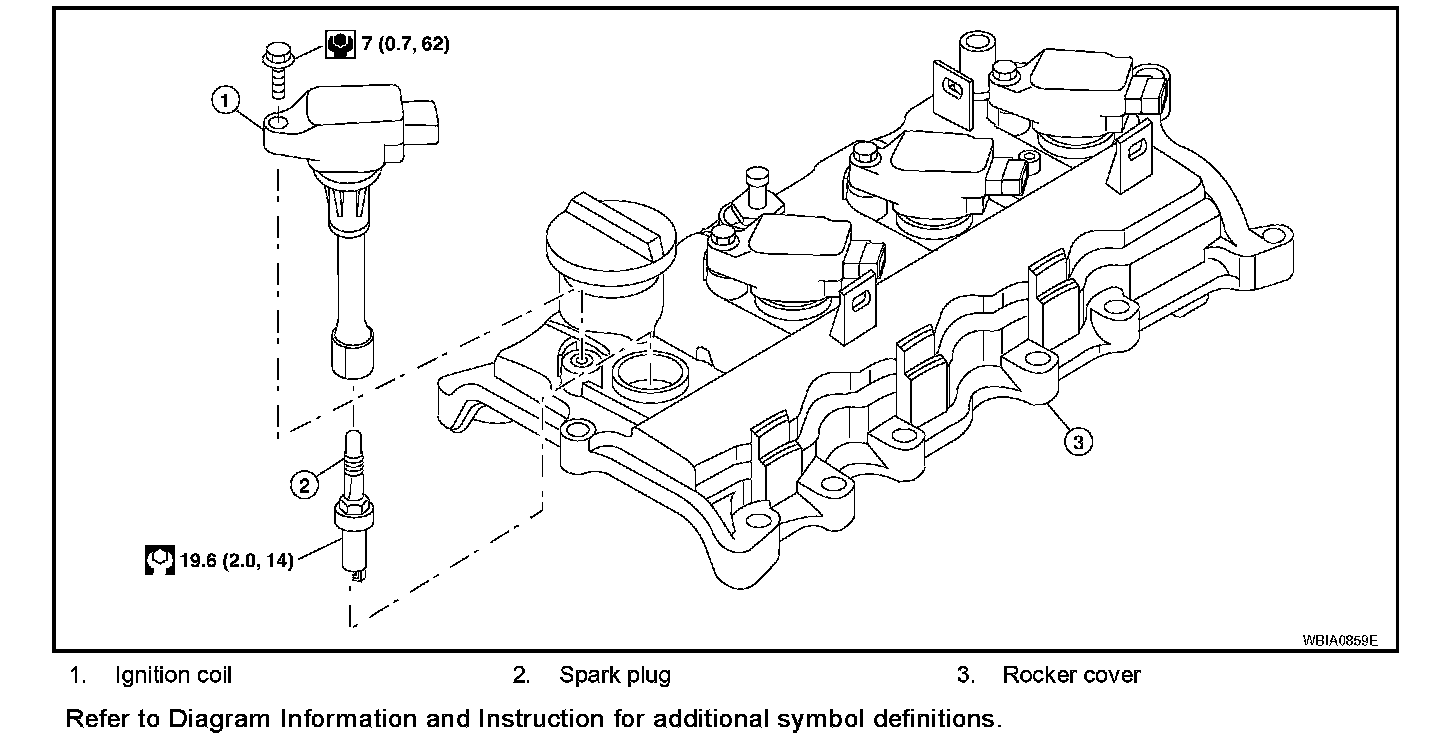

Exploded View EM-142:

REMOVAL
1. Remove the ignition coil.

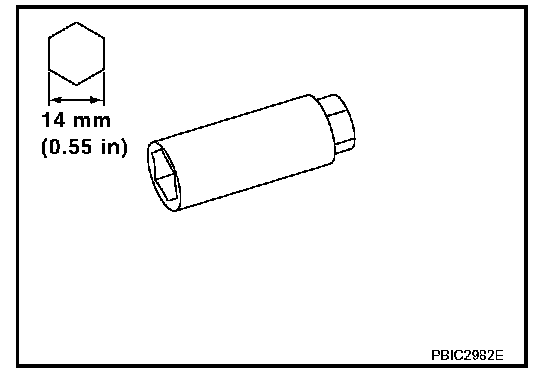

2. Remove the spark plug with a suitable spark plug wrench.

INSPECTION AFTER REMOVAL

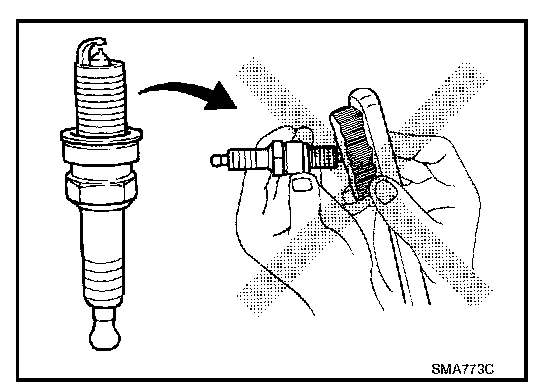

^ Do not use a wire brush for cleaning the spark plugs. Replace as necessary.
^ If plug is covered with carbon, a spark plug cleaner may be used.
Cleaner air pressure: less than 588 kPa (6 kg/cm2, 85 psi)
Cleaning time: less than 20 seconds

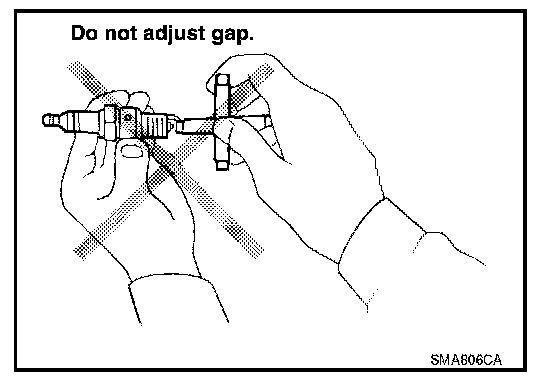

^ Checking and adjusting plug gap is not required between change intervals. If the gap is out of specification, replace the spark plug.
Gap (nominal): 1.1 mm (0.043 in)

INSTALLATION
Installation is in the reverse order of removal.

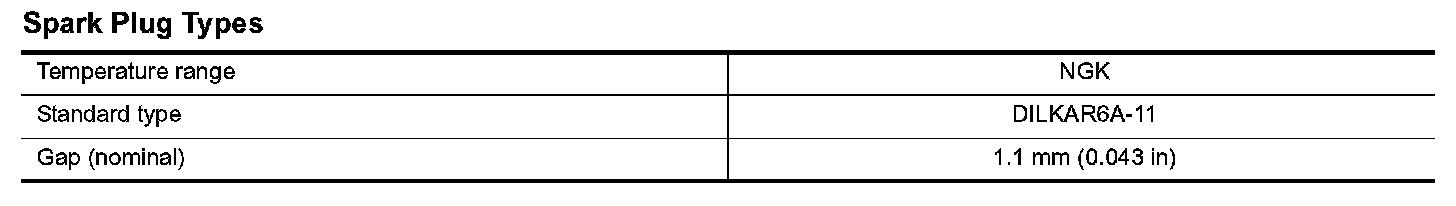

Spark Plug Types:
