Service Limits & General Specifications

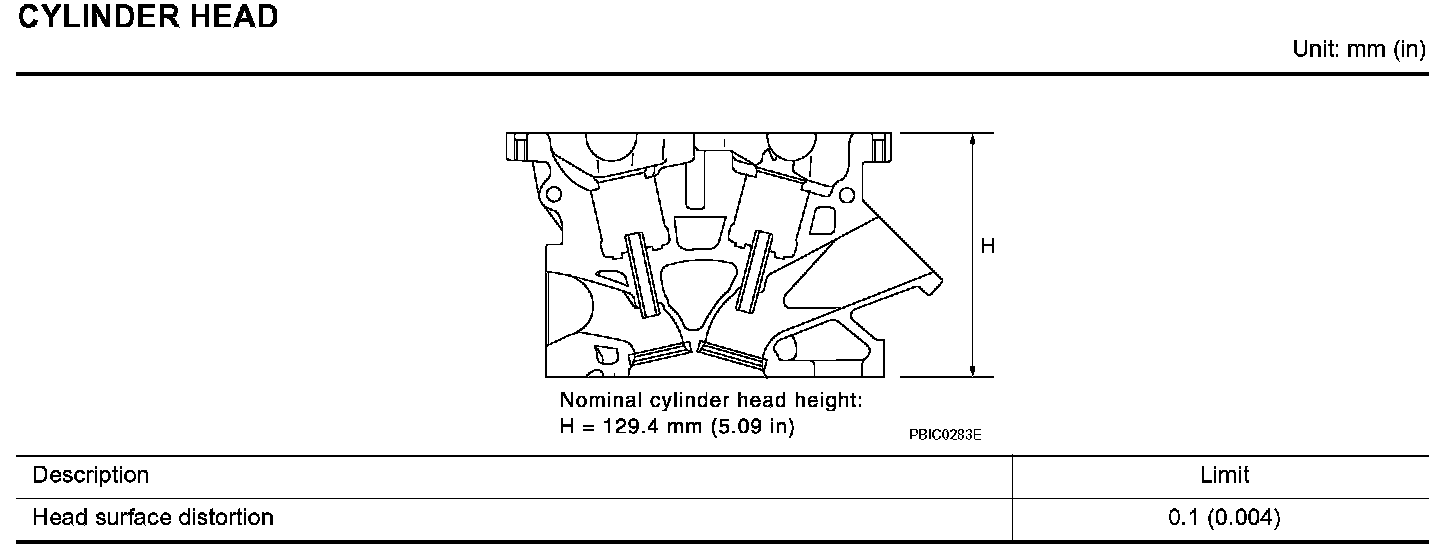

CYLINDER HEAD DISTORTION 1.
Wipe off oil and remove water scale deposits, old gasket, old sealer, and carbon with a scraper.
CAUTION: Use care not to allow gasket debris to enter passages for oil or water. 2.

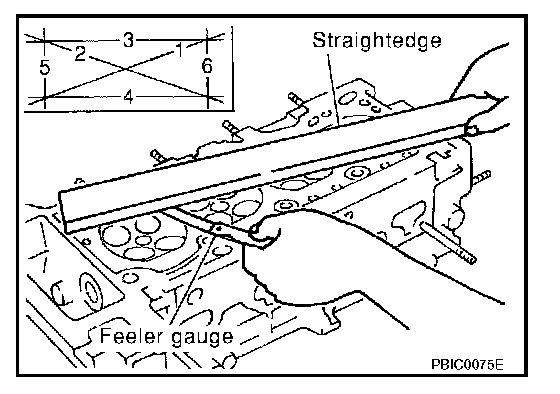

At each of several locations on bottom surface of cylinder head, measure distortion in six directions.
Limit:
0.1 mm (0.004 in) or less CYLINDER HEAD
