Alternator: Service and Repair

CHARGING SYSTEM




Image Symbols:

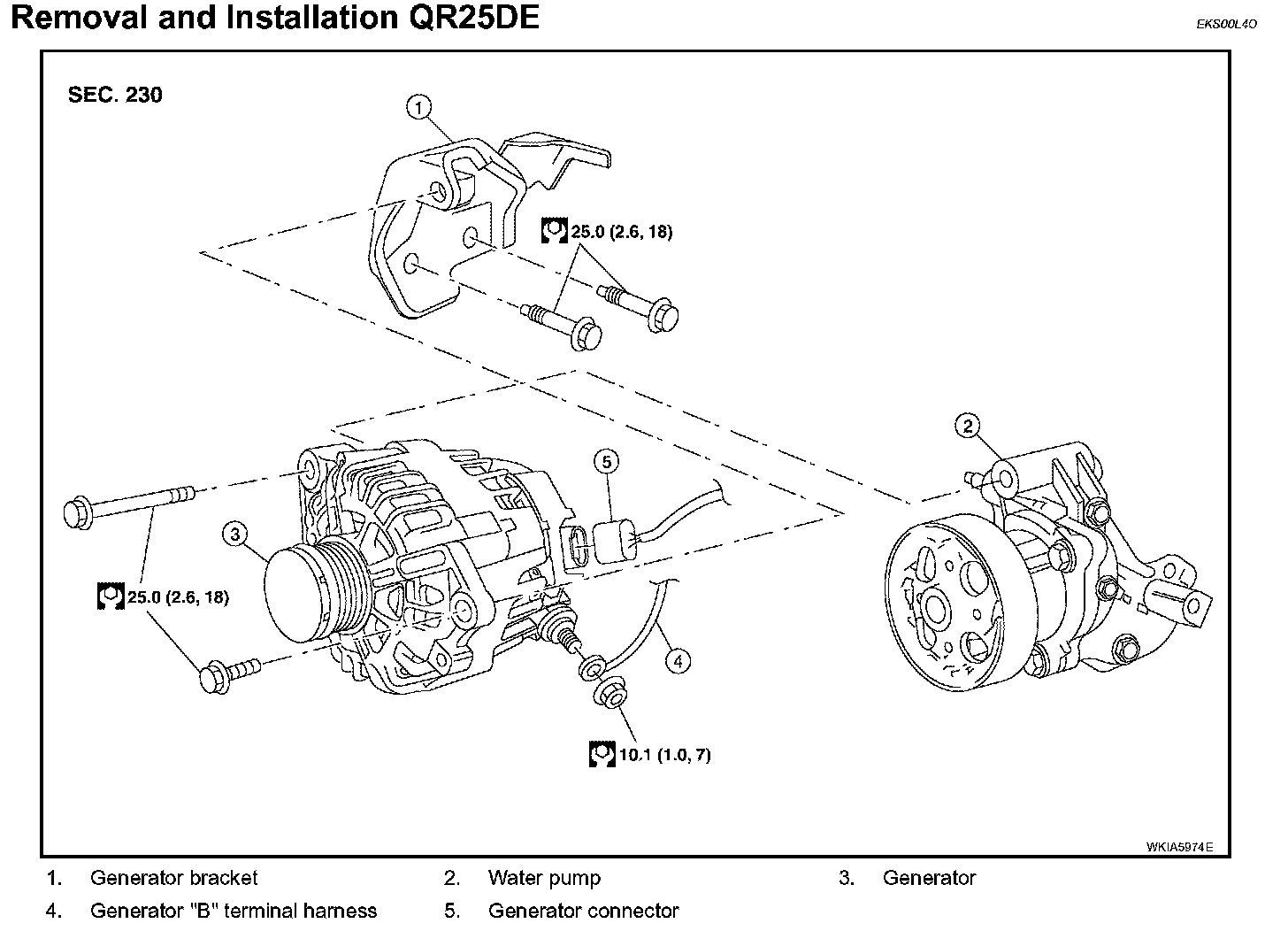

Removal and Installation

REMOVAL
1. Disconnect the battery cable from the negative terminal.
2. Remove drive belt.
3. Disconnect generator connector.
4. Remove "B" terminal nut.
5. Remove harness bracket and position aside.
6. Remove generator bolts.
7. Remove generator assembly from the vehicle.

INSTALLATION
Installation is in the reverse order of removal.

CAUTION: Be sure to tighten "B" terminal nut carefully.
