Secondary Speed Sensor

Secondary Speed Sensor

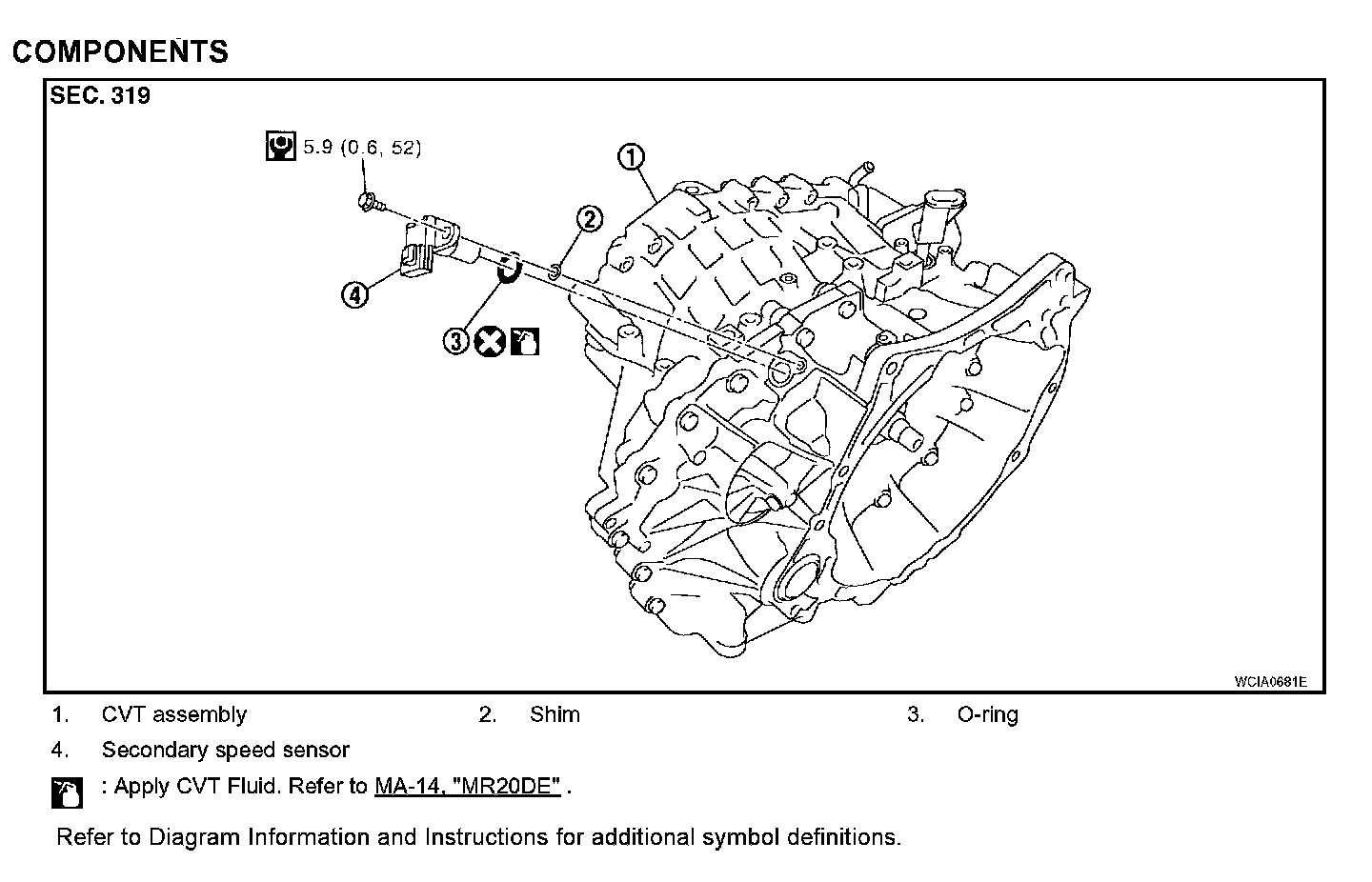

Exploded View CVT-197:





CAUTION:
^ Do not reuse O-ring.
^ Apply CVT fluid to O-ring.
^ Insert the shim.
^ After installation is complete, check for CVT fluid leakage and CVT fluid level.
