Front Door Window Regulator: Service and Repair

FRONT DOOR GLASS AND REGULATOR

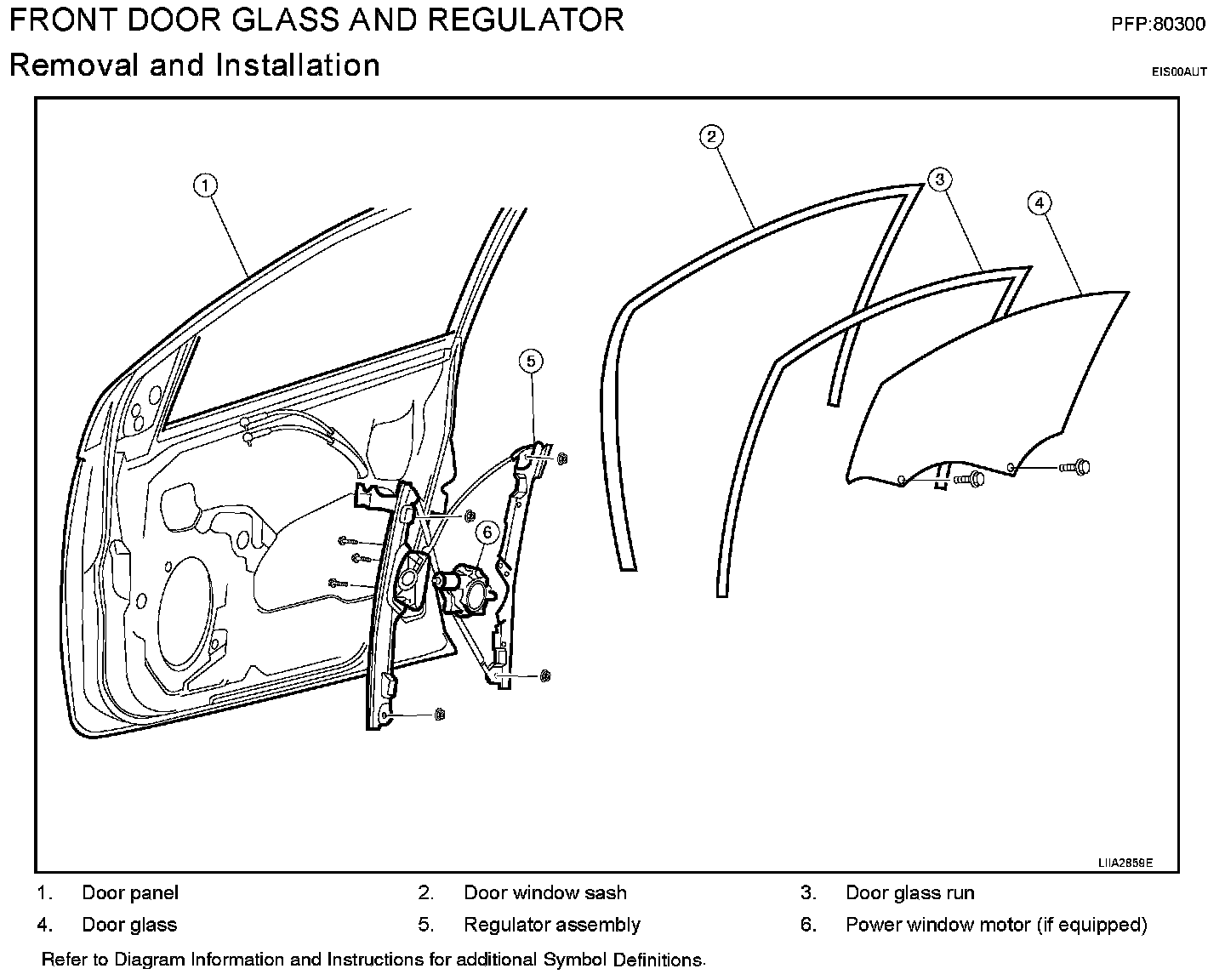

Exploded View GW-48:




Removal and Installation

REGULATOR ASSEMBLY

Removal




1. If equipped, reconnect the power window switch connector. Operate the power window main switch to raise/lower the door window until the door glass bolts can be seen.
2. Remove the door glass bolts.




3. Raise the door glass and hold with a suction lifter A.
4. If equipped, disconnect the power window switch connector from the regulator assembly.
5. Remove the door glass bolts, regulator bolts and regulator assembly.




- If equipped remove bolt (A)

Inspection after Removal
Check the regulator assembly for the following. If a problem is detected, grease or replace it as shown.




- Grease application points for each sliding part




- Wire wear
- Regulator deformation

Installation
Installation is in the reverse order of removal.
