Disassembly and Assembly

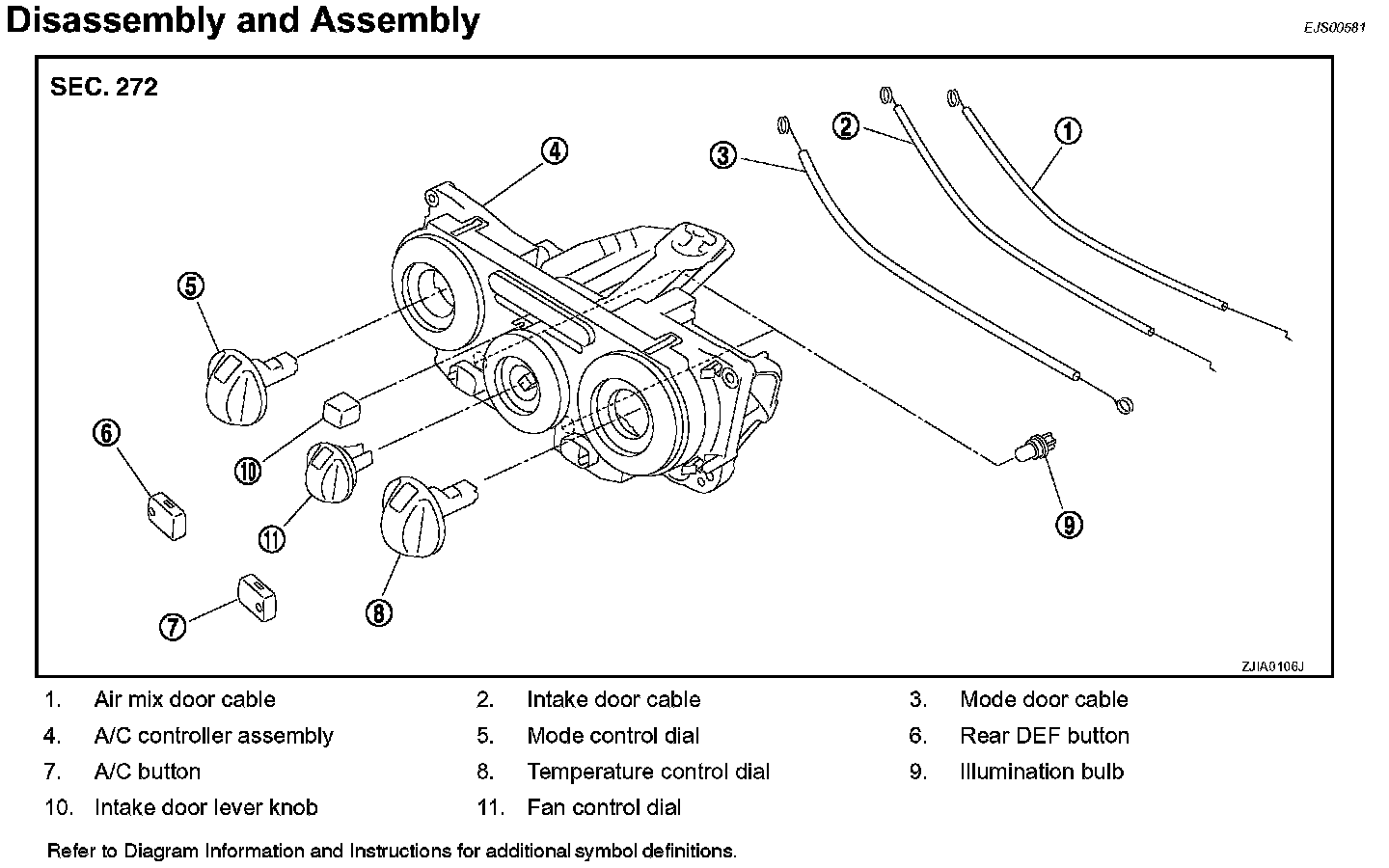

Exploded View MTC-62:

Disassembly and Assembly

CAUTION: Install inner cable of each door cable to the corresponding lever, as shown in the figure. Press outer cable until it hooks on the tabs and becomes secure.
