Transmission Position Sensor/Switch: Adjustments

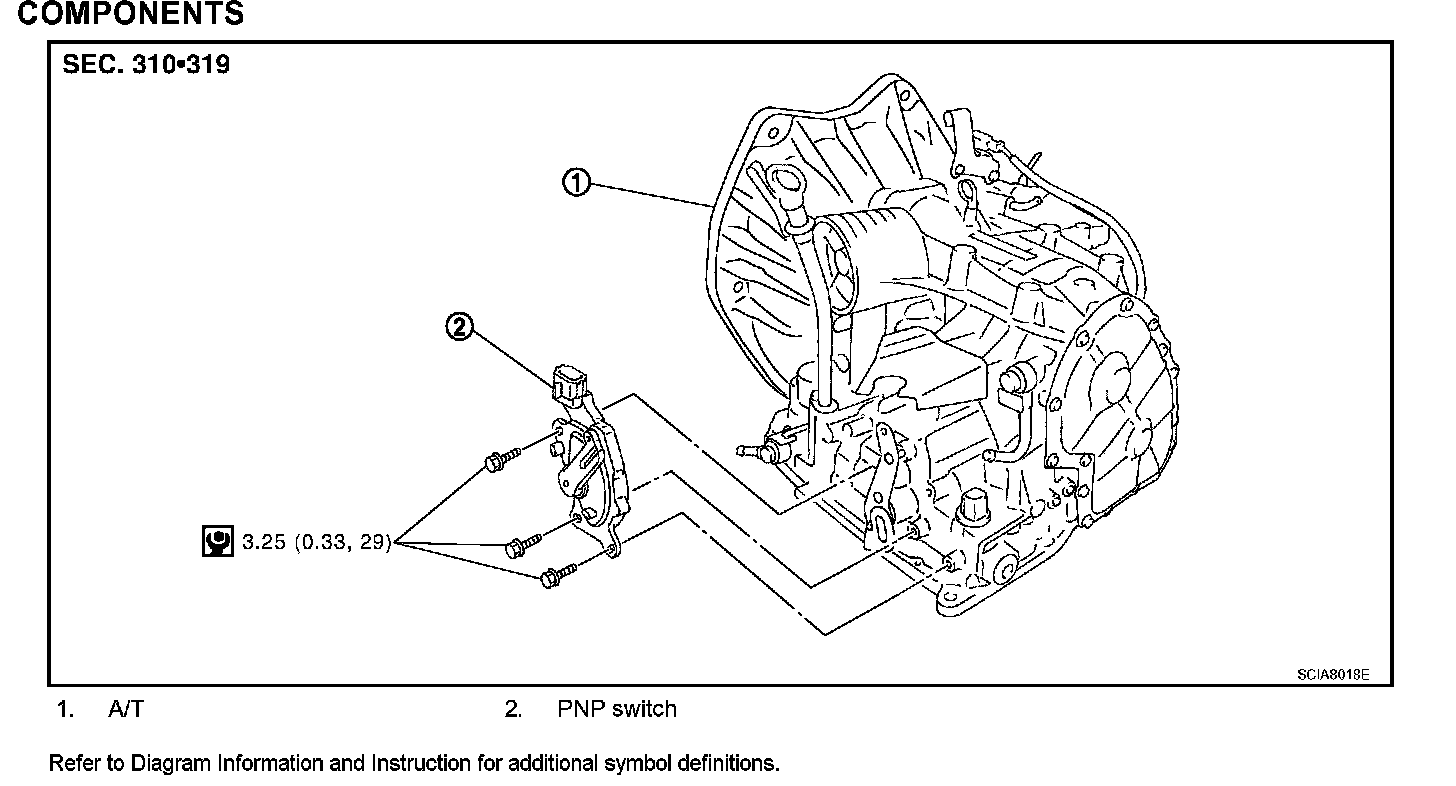

Exploded View AT-230:

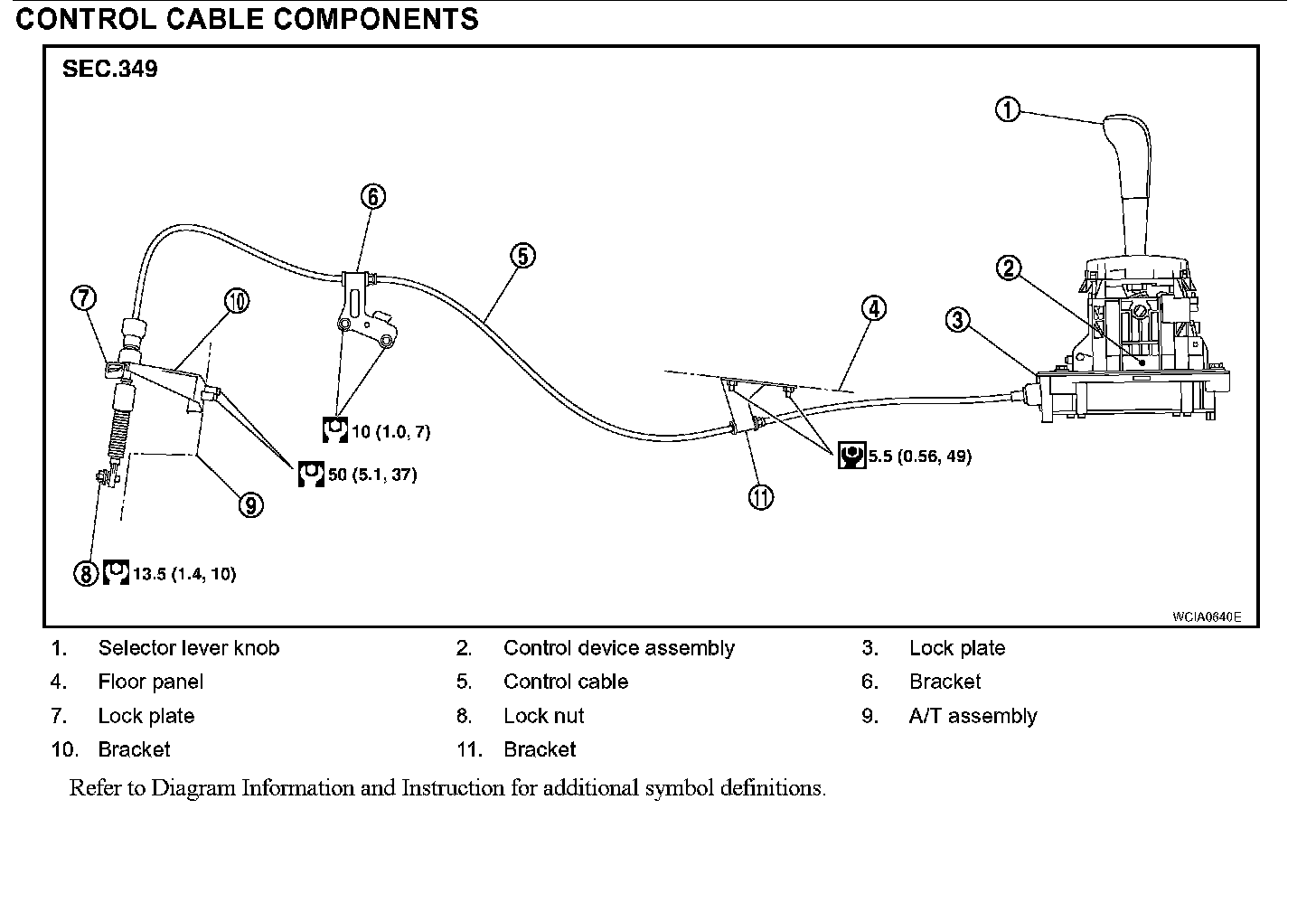

Exploded View AT-246:

PARK/NEUTRAL POSITION (PNP) SWITCH ADJUSTMENT
1. Remove air duct (inlet).





2. Set selector lever and manual shaft (1) in "N" position.
3. Remove control cable from manual shaft (1). Refer to Exploded View.
4. Loosen PNP switch bolts.
<-: Bolt (3)
5. Insert the pin (3) [4 mm (0.16 in) dia.] straight into manual shaft (1) adjustment hole.
6. Rotate PNP switch (2) until the pin (3) can also be inserted straight into hole in PNP switch (2).
7. Tighten PNP switch bolts to the specified torque. Refer to Exploded View.
8. Remove the pin (3) from adjustment hole after adjusting PNP switch (2).
9. Install the control cable. Refer to Exploded View.
10. Adjust and check A/T position. Refer to AT-234, "Checking of A/T Position". Testing and Inspection
11. Check continuity of PNP switch (2). Refer to AT-191, "PNP SWITCH". PNP, OD Switch and Closed Throttle, Wide Open Throttle Position Signal Circuit
12. Install the air duct (inlet).
