Components

Components

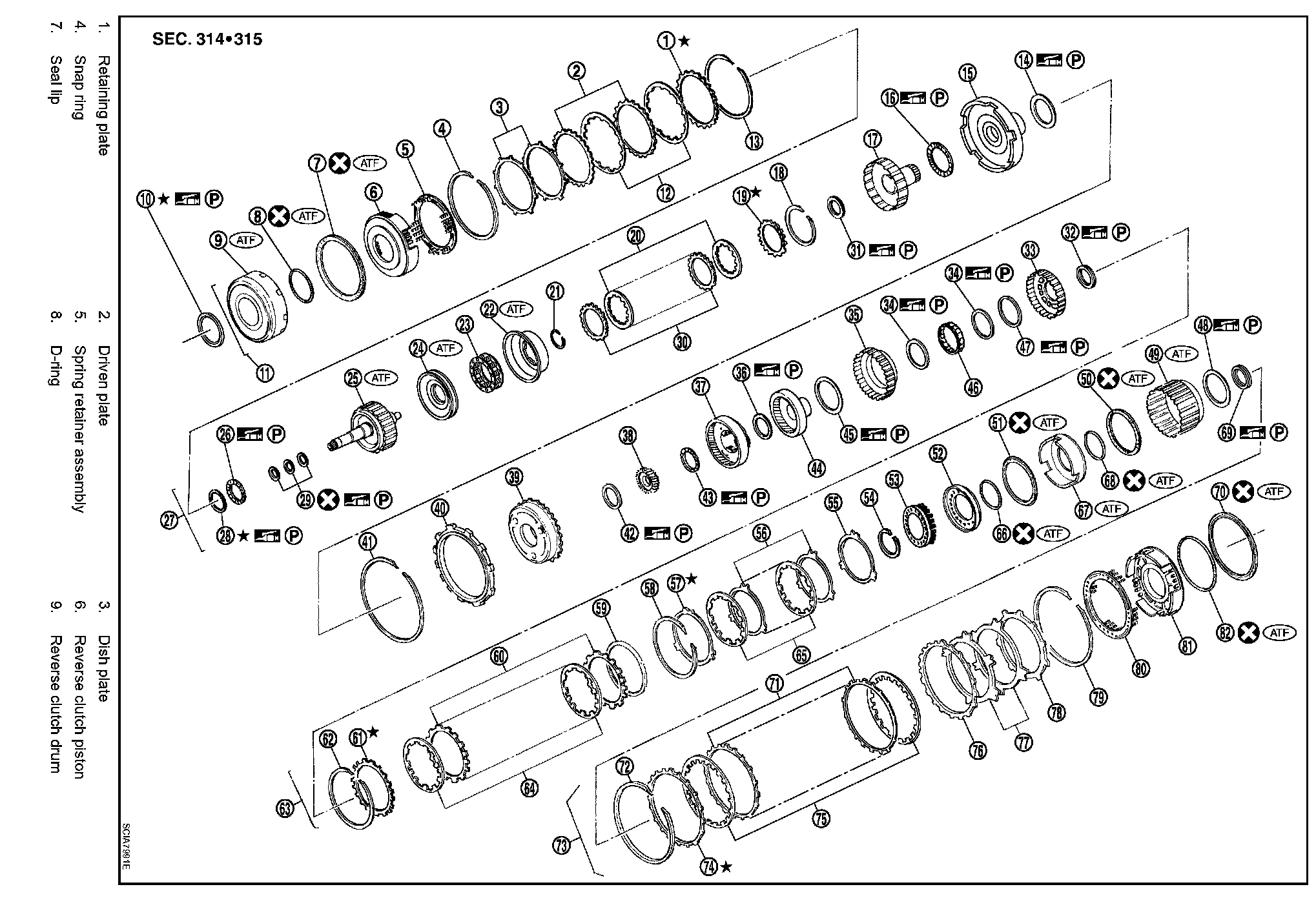

Exploded View AT-257 (Part 1):

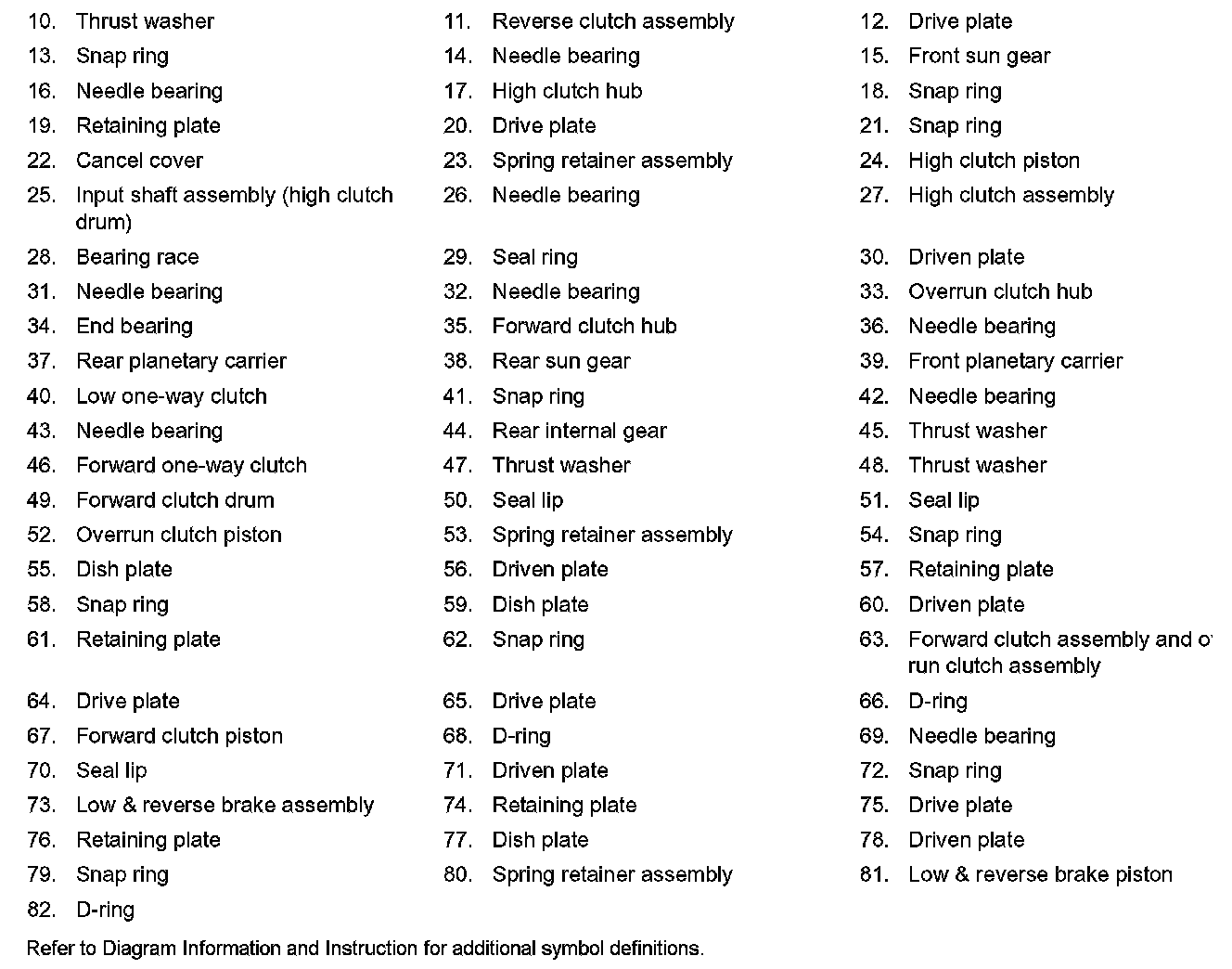

Exploded View AT-257 (Part 2):

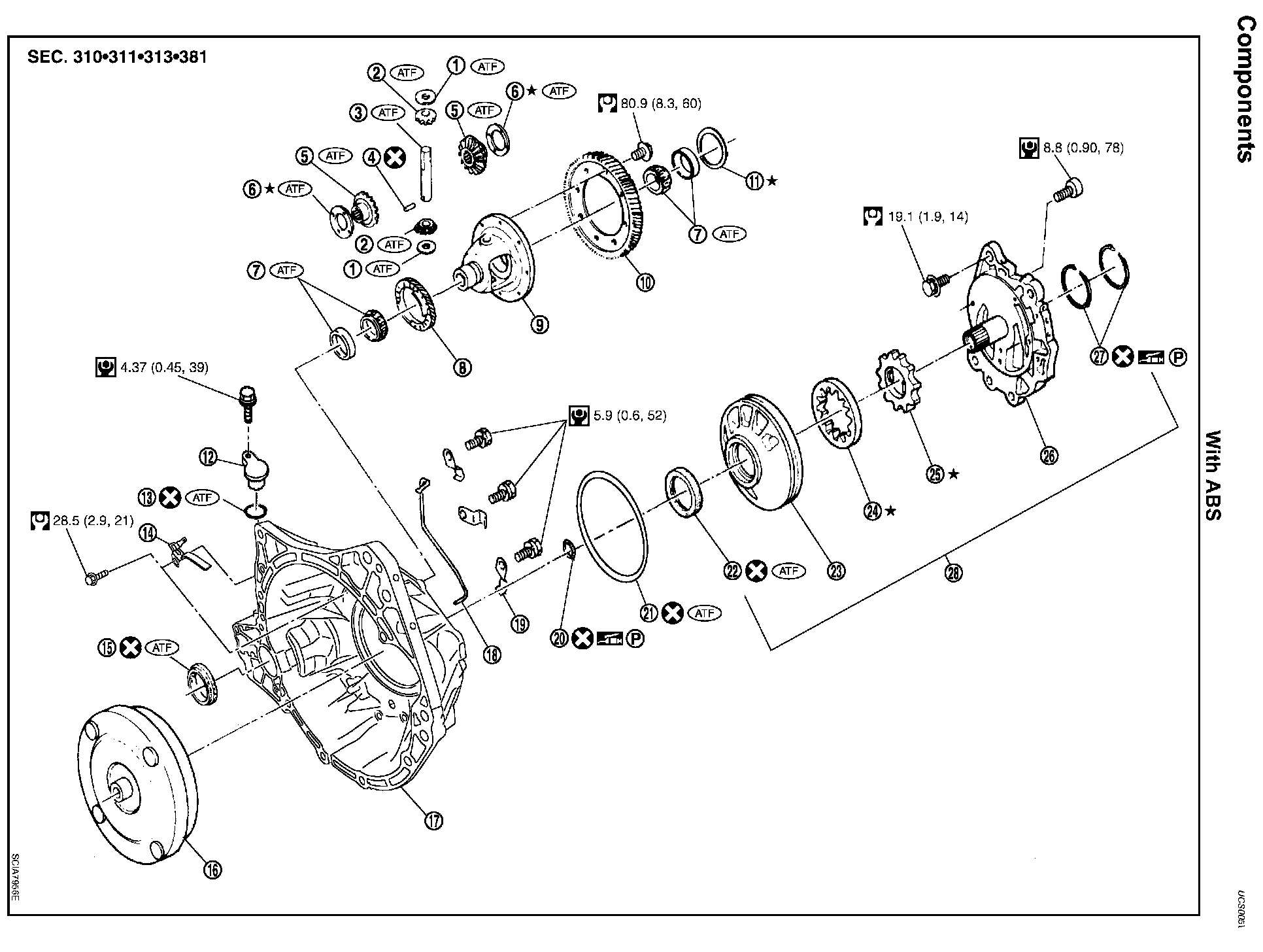

With ABS

Exploded View AT-259 (Part 1):




Exploded View AT-259 (Part 2):

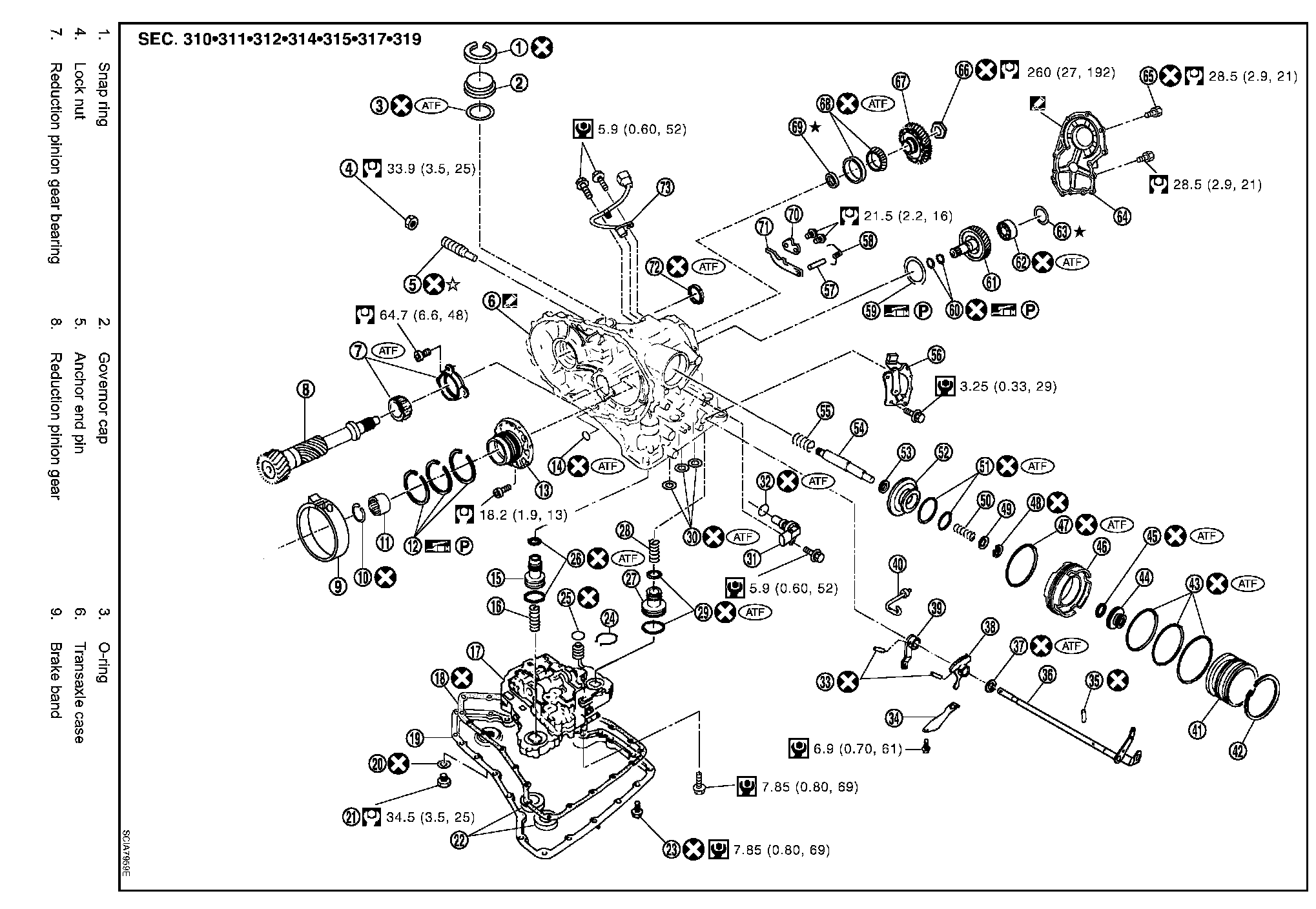

Exploded View AT-261 (Part 1):

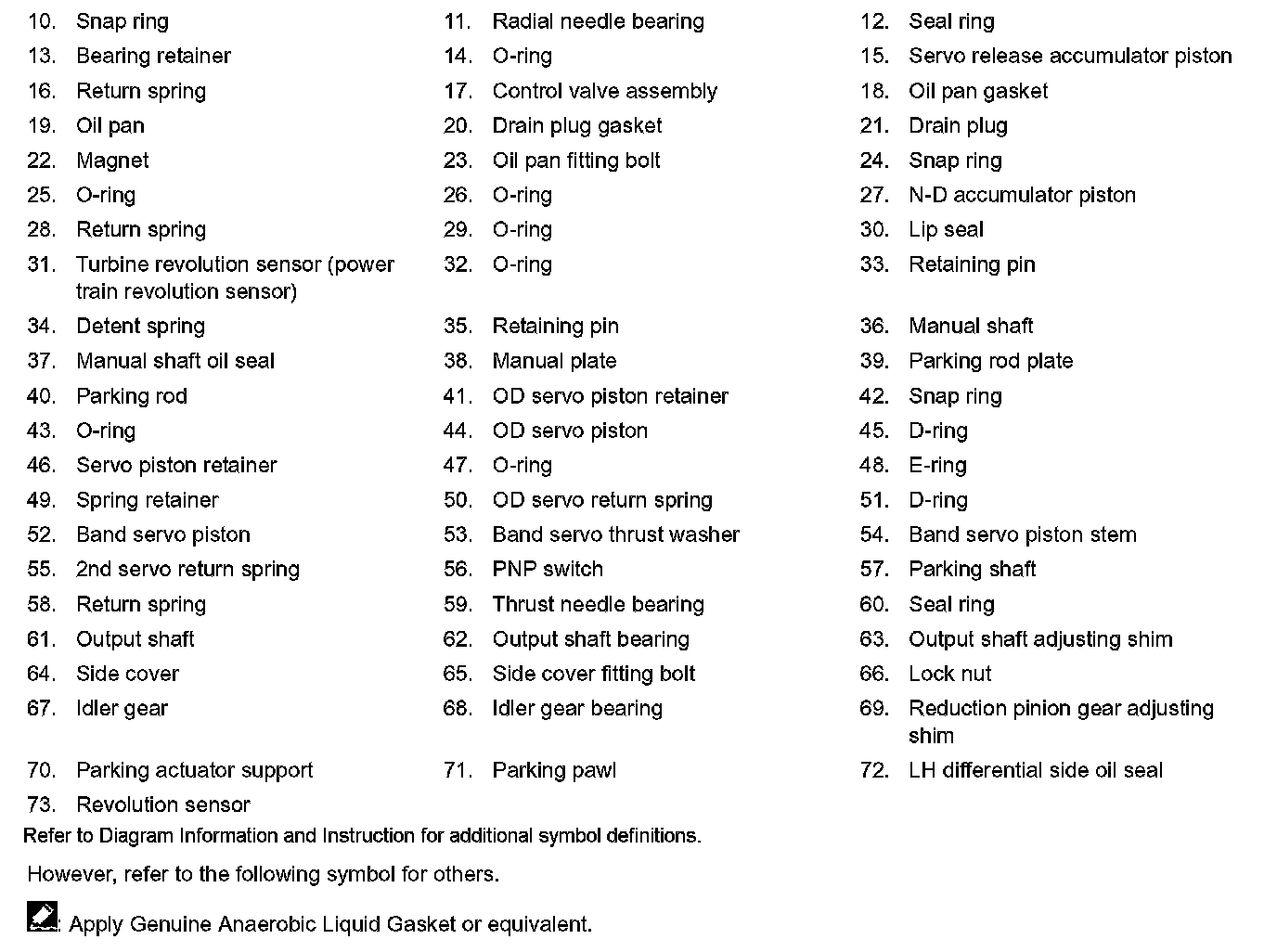

Exploded View AT-261 (Part 2):




Exploded View AT-263 (Part 1):





Exploded View AT-263 (Part 2):

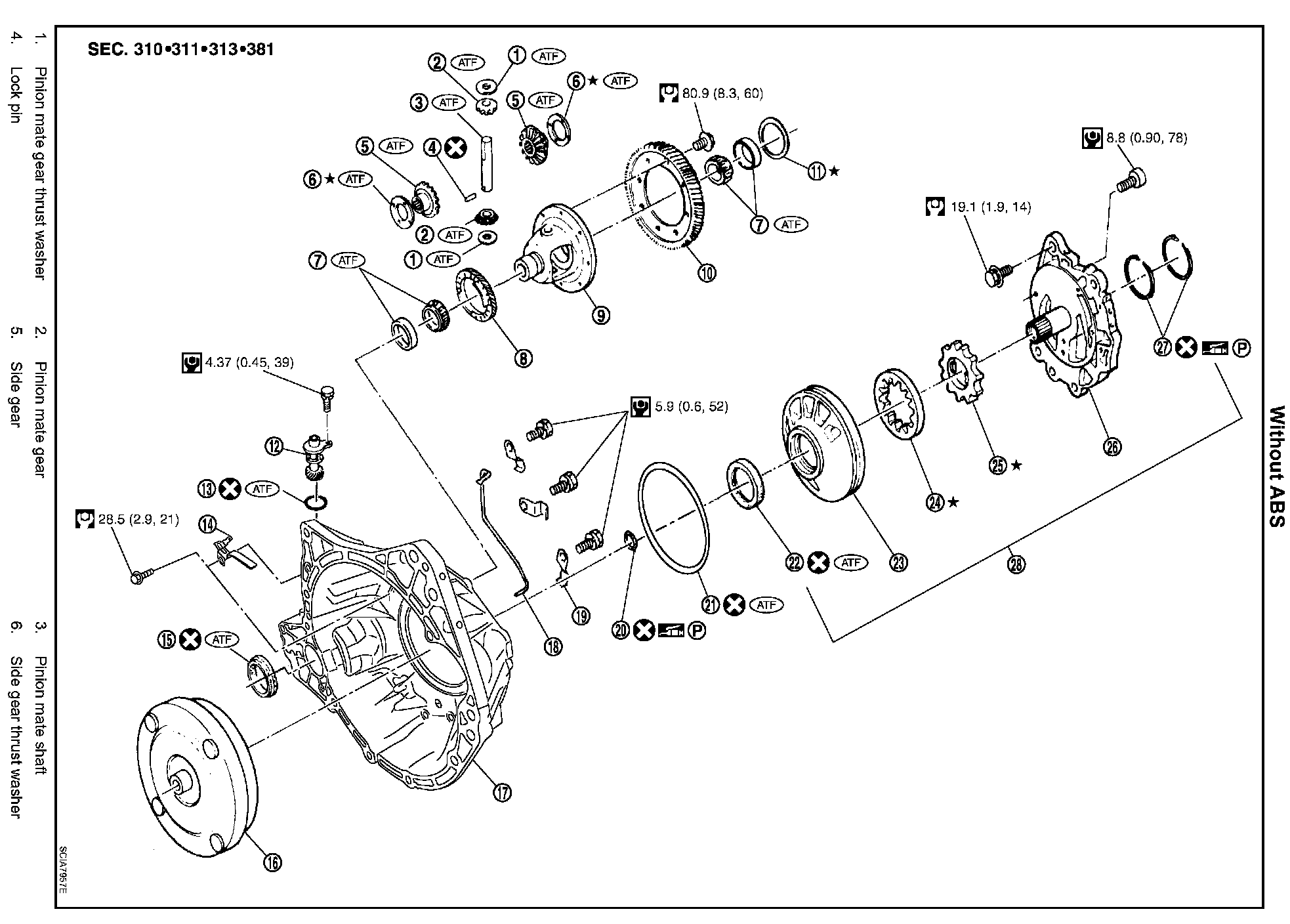

Without ABS
