Intake Manifold

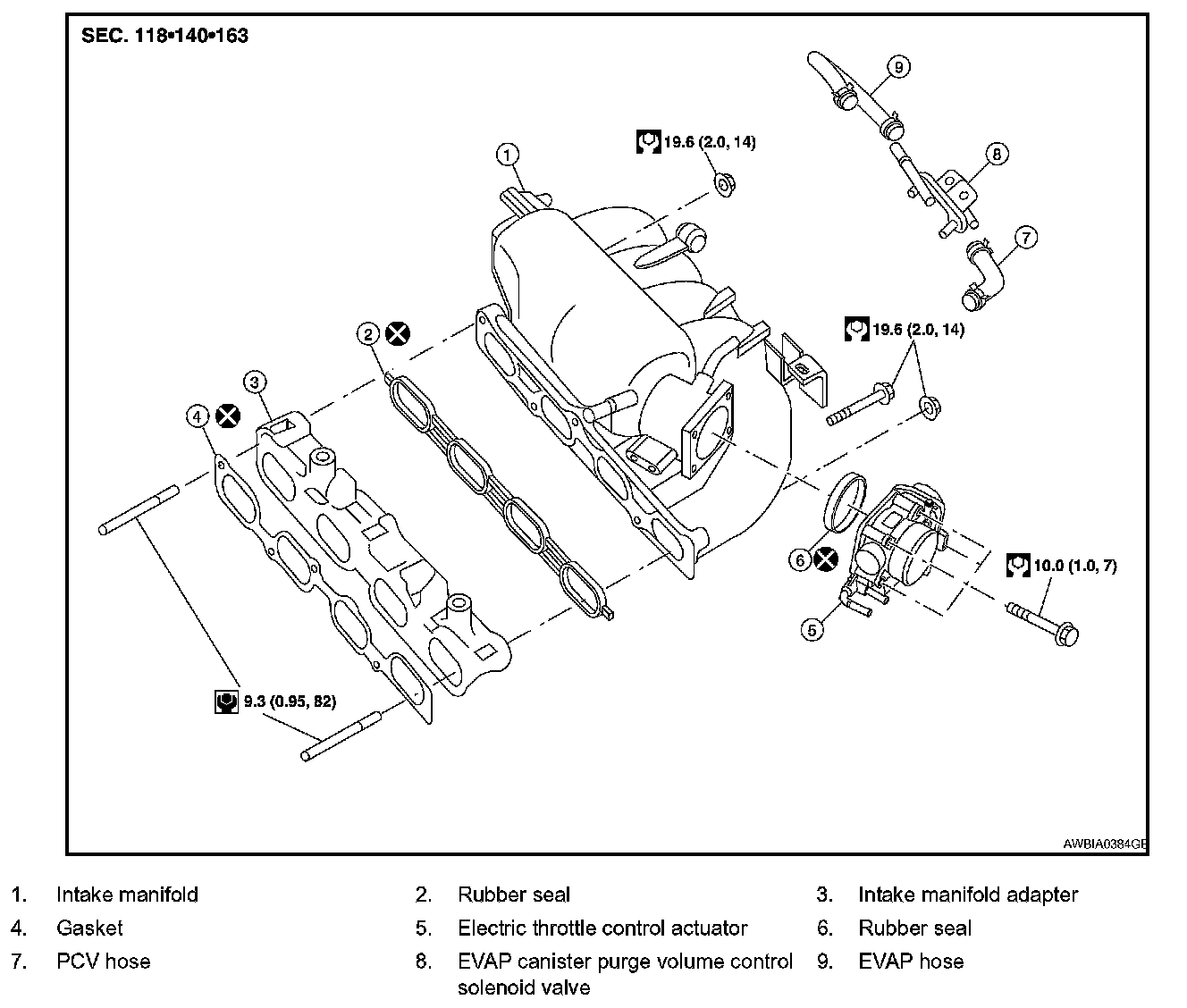

EM-26 Exploded View:





Intake Manifold





When installing the intake manifold bolts and nuts tighten to the specified torque in the sequence shown.

CAUTION: Tighten first bolt to specification two times, as step 1 and 6.
